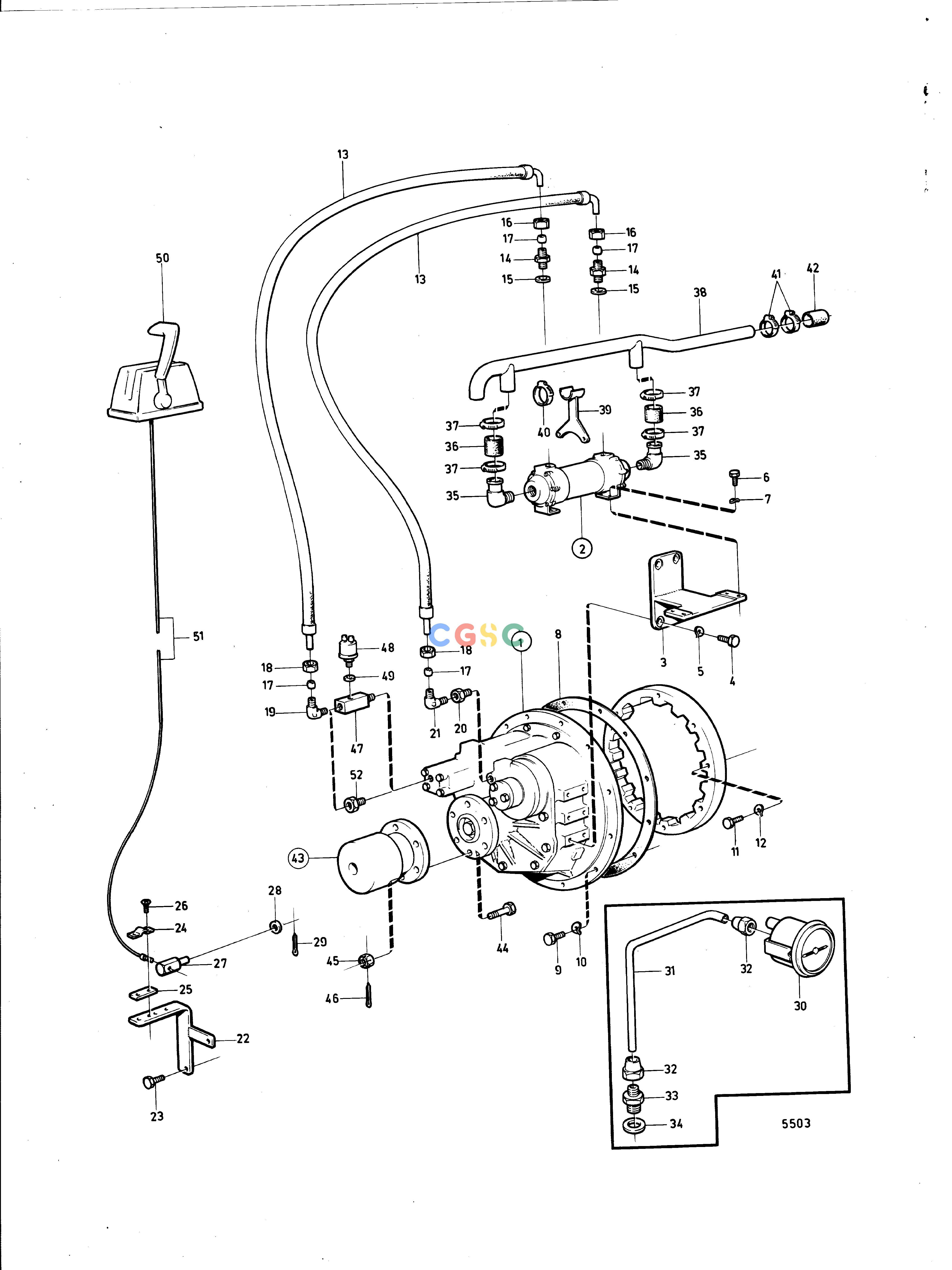

沃尔沃零件查询MD100A; TMD100A; TMD100AK; TMD100A-CC; MD100B; MD100BK; MD100B-CCTransmissionsReverse Gear Twin Disc MG506 with Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
962 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
842099
|
[1] |
Oil cooler
|
|
| 3. |
842098
|
[1] |
Bracket
|
|
| 4. |
955560
|
[4] |
Hexagon screw
|
|
| 5. |
940280
|
[4] |
Spring washer
|
|
| 6. |
940113
|
[4] |
Hexagon screw
|
|
| 7. |
941907
|
[4] |
Spring washer
|
|
| 8. |
800751
|
[1] |
Gasket
|
|
| 9. |
940134
|
[12] |
Hexagon screw
|
|
| 10. |
941909
|
[12] |
Spring washer
|
|
| 11. |
940162
|
[8] |
Hexagon screw
|
|
| 12. |
942336
|
[8] |
Spring washer
|
|
| 13. |
837355
|
[1] |
Hose assembly
|
L=420mm repl by 837935
|
| 13. |
837935
|
[1] |
Lubricating oil hose
|
L=460mm
|
| 14. |
943755
|
[2] |
Fitting
|
|
| 15. |
907135
|
[2] |
Gasket
|
(18820)
|
| 16. |
941331
|
[2] |
Fitting nut
|
|
| 17. |
956970
|
[4] |
Ferrule
|
|
| 18. |
956984
|
[2] |
Fitting nut
|
|
| 19. |
941757
|
[1] |
Elbow nipple
|
|
| 20. |
954334
|
[1] |
Nipple
|
Repl by 941757
|
| 21. |
|
|
|
Repl by 941757
|
| 22. |
842104
|
[1] |
Bracket
|
|
| 23. |
955535
|
[2] |
Hexagon screw
|
|
| 24. |
21471054
|
[1] |
Bracket
|
|
| 25. |
819068
|
[1] |
Washer
|
|
| 26. |
950021
|
[2] |
Cross recessed screw
|
|
| 27. |
813674
|
[1] |
Cube
|
|
| 28. |
940191
|
[1] |
Washer
|
|
| 29. |
17276
|
[1] |
Split pin
|
|
| 30. |
837436
|
[1] |
Manometer
|
|
| 31. |
944069
|
[1] |
Copper tube
|
L=5000mm
|
| 32. |
954320
|
[2] |
Fitting nut
|
|
| 33. |
190279
|
[1] |
Nipple
|
|
| 34. |
957172
|
[1] |
Gasket
|
|
| 35. |
898683
|
[2] |
Hose attachment
|
|
| 36. |
952977
|
[1] |
Radiator hose
|
L=70mm
|
| 37. |
943478
|
[4] |
Hose clamp
|
|
| 38. |
837084
|
[1] |
Coolant pipe
|
|
| 39. |
837075
|
[2] |
Bracket
|
|
| 40. |
994561
|
[2] |
Hose clamp
|
|
| 41. |
943478
|
[4] |
Hose clamp
|
(951794)
|
| 42. |
943370
|
[1] |
Rubber hose
|
L=140mm (952977)
|
| 43. |
842106
|
[1] |
Companion flange
|
|
| 44. |
955738
|
[6] |
Hexagon screw
|
|
| 45. |
955886
|
[6] |
Castle nut
|
|
| 46. |
907861
|
[6] |
Split pin
|
(907859)
|
| 47. |
842425
|
[1] |
Nipple
|
|
| 48. |
837781
|
[1] |
Oil pressure sensor
|
See group 3
|
| 49. |
957181
|
[1] |
Gasket
|
See group 3
|
| 50. |
|
|
|
See group 9
|
| 51. |
|
|
|
See group 9
|
| 52. |
804533
|
[1] |
Nipple
|
|
