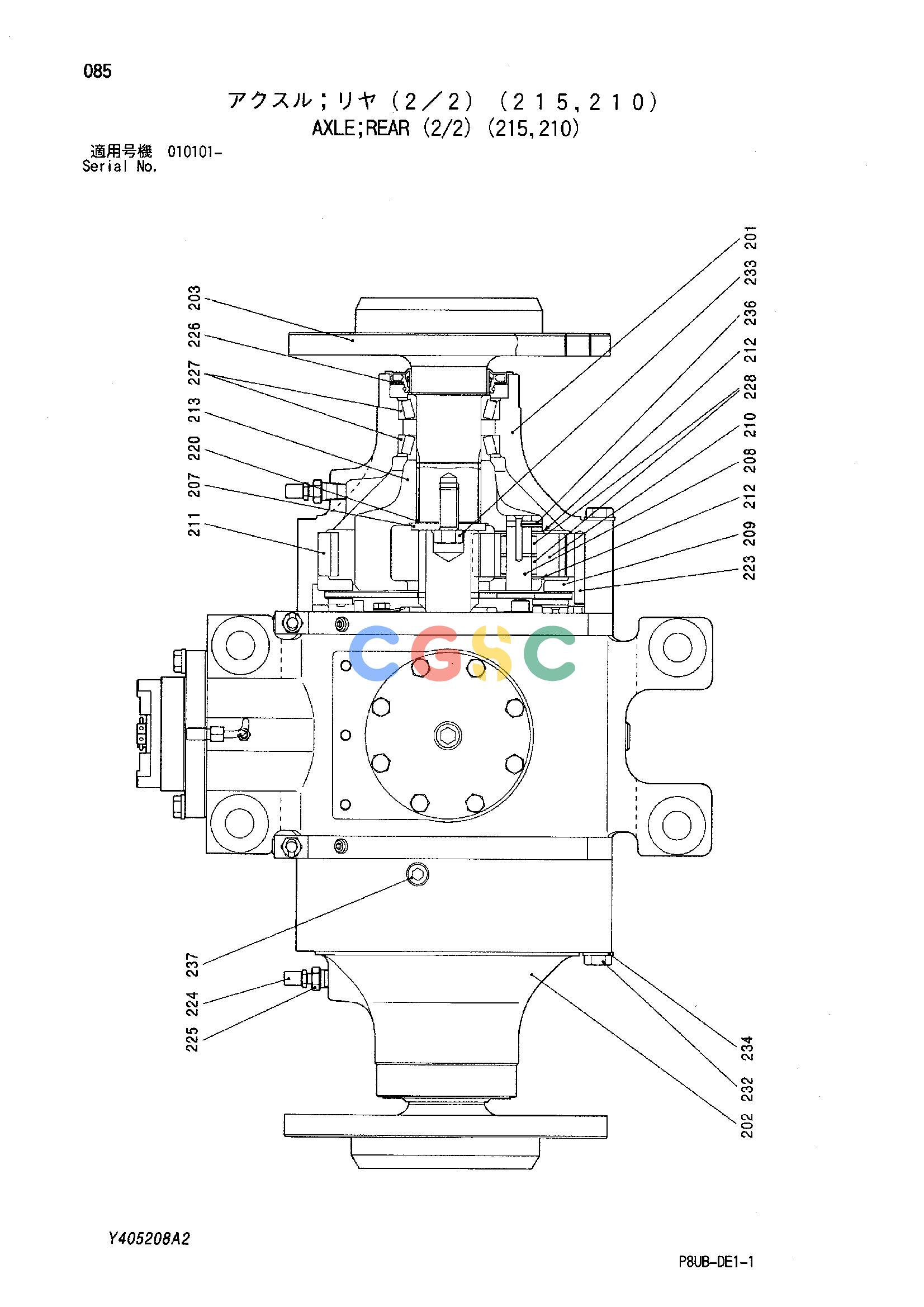

日立零件查询（CP215）AXLE;REAR (2/2) (215,210) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
330 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 425420 | [1] | AXLE;REAR | (2/2) |
| 201. | 424268-33 | [1] | HOUSING | |
| 202. | 424268-34 | [1] | HOUSING | |
| 203. | 448752 | [2] | SHAFT;DRIVE | |
| 207. | 424268-36 | [2] | SPACER | |
| 208. | 424268-37 | [6] | PIN | |
| 209. | 424268-38 | [2] | PLATE | |
| 210. | 424268-39 | [6] | GEAR;PLANETARY | |
| 211. | 424268-40 | [2] | GEAR;INTERNAL | |
| 212. | 424268-41 | [12] | WASHER;THRUST | |
| 213. | 425420-03 | [2] | CASE;GEAR | |
| 220. | 448754 | [1] | SHIM ASS'Y | |
| 220A. | 448754-A | [2] | SHIM 0.15 | |
| 220B. | 448754-B | [6] | SHIM 0.2 | |
| 220C. | 448754-C | [2] | SHIM 0.3 | |
| 223. | 424268-43 | [6] | PIN | |
| 224. | 448761 | [2] | BREATHER;AIR | |
| 225. | 424268-44 | [2] | BUSHING | |
| 226. | 448724 | [2] | SEAL;OIL | |
| 227. | 448725 | [4] | BRG.;ROL. | |
| 228. | 424268-45 | [12] | BRG.;NEEDLE | |
| 232. | 424268-46 | [24] | BOLT | |
| 233. | 448753 | [2] | BOLT | |
| 234. | 424268-47 | [24] | WASHER | |
| 236. | 424268-48 | [6] | PIN;SPRING | |
| 237. | 424268-49 | [2] | PLUG | |
