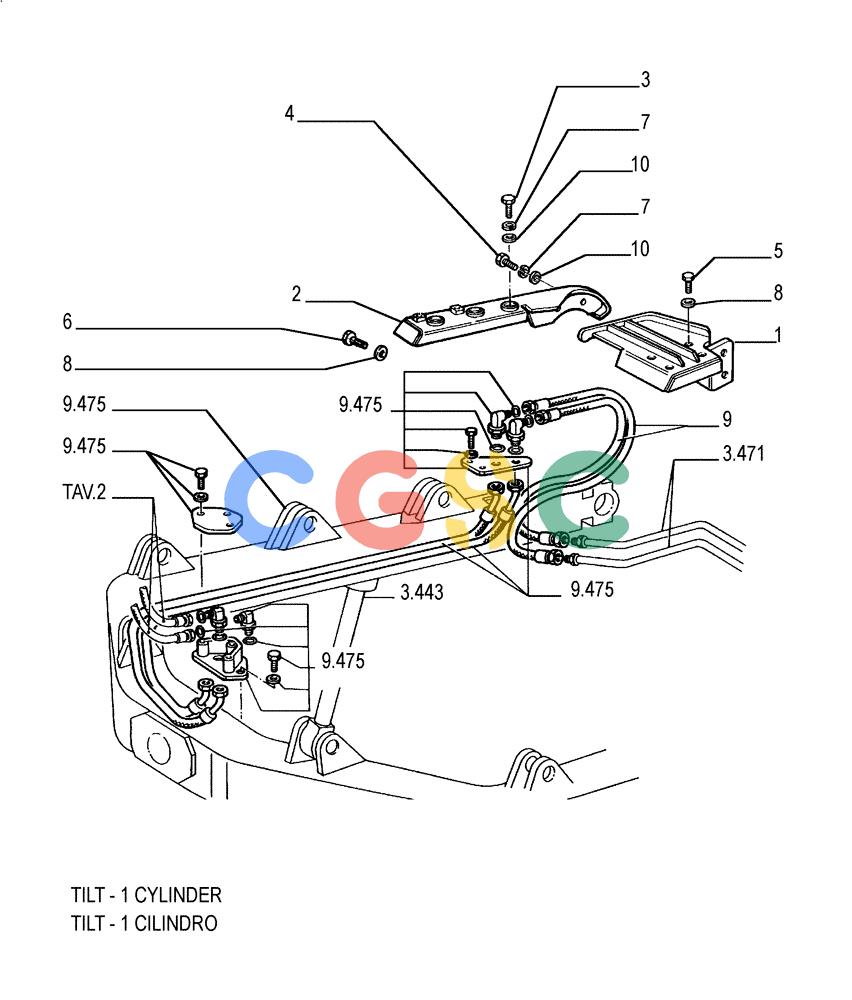

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (9.481[01]) - HYDRAULIC TILT-ANGLEDOZER (HA) - OPTIONAL CODE 76035824 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
986 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79114324 | [1] | GUARD | LEC |
| 2. | 79089958 | [1] | GUARD | LEC |
| 3. | 11113331 | [3] | SCREW,Hex, M12 x 55mm, Cl 10.9 | LEC Superseded by part number: 9503185 |
| 4. | 11112431 | [6] | SCREW,Hex, M12 x 30mm, Cl 10.9, Full Thd | LEC Superseded by part number: 87015736 |
| 5. | 11390531 | [4] | BOLT,Hex, M16 x 1.5 x 40, 10.9, Full Thd | LEC Superseded by part number: 11390534 |
| 6. | 11391531 | [2] | BOLT,Hex, M16 x 1.5 x 45mm, Cl 10.9, Full Thd | LEC Superseded by part number: 11391537 |
| 7. | 10615879 | [9] | LOCK WASHER,Serr, M12 | LEC Superseded by part number: 10615870 |
| 8. | 79005240 | [6] | WASHER,16.8mm ID x 36mm OD x 8mm Thk | LEC |
| 9. | 79105269 | [2] | FLEXIBLE HOSE | LEC |
| 10. | 14496731 | [9] | WASHER,M12 x 24 x 2.5 Thk | LEC Superseded by part number: 895-11012 |
