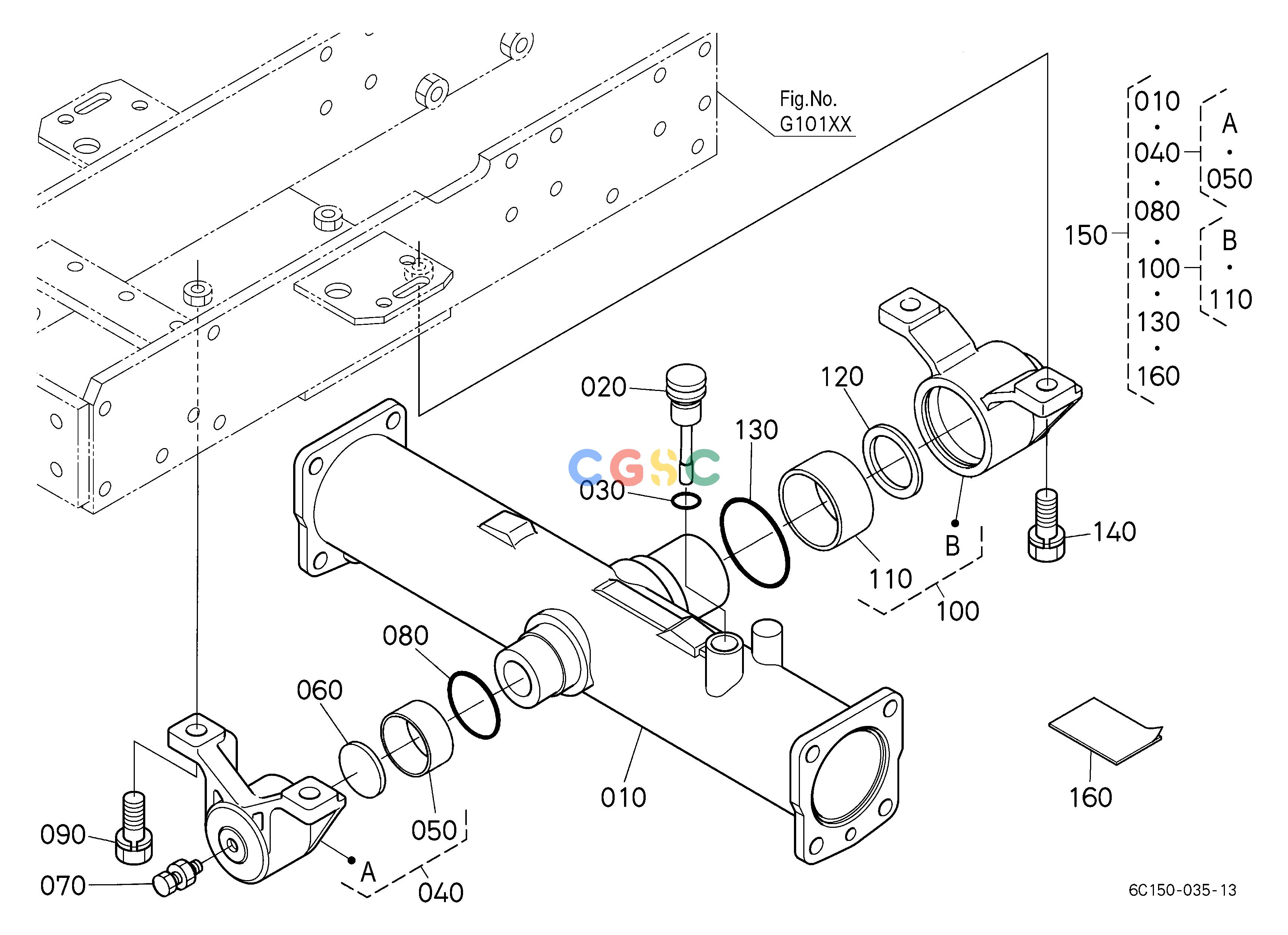

久保田零件查询G10501 FRONT AXLE CASE [4WD] [EXCEPT[BI-SPEED TURN TYPE]] FRONT AXLEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
419 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C14056110
|
[1] |
CASE FRONT AXLE
|
16.7200(lbs); 7.600
|
| 020. |
6C04056123
|
[1] |
GAUGE OIL
|
0.0528(lbs); 0.024
|
| 030. |
0481100180
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 030. |
0481600180
|
[1] |
O RING
|
0.0044(lbs); 0.002
|
| 040. |
6C14056170
|
[1] |
ASSY HOLDER
|
2.8160(lbs); 1.280
|
| 050. |
0851105020
|
[1] |
BUSH
|
0.1320(lbs); 0.060
|
| 060. |
3741056180
|
[1] |
COLLAR THRUST
|
0.1320(lbs); 0.060
|
| 070. |
6C04056170
|
[1] |
COMP.BOLT FRONT AXLE
|
0.0880(lbs); 0.040
|
| 080. |
0481150550
|
[1] |
O RING
|
0.0044(lbs); 0.002
|
| 090. |
0113351440
|
[2] |
BOLT
|
0.1540(lbs); 0.070
|
| 100. |
6C14056180
|
[1] |
ASSY HOLDER
|
3.7840(lbs); 1.720
|
| 110. |
0851106530
|
[1] |
BUSH
|
0.2640(lbs); 0.120
|
| 120. |
6C04056150
|
[1] |
COLLAR THRUST
|
0.0440(lbs); 0.020
|
| 130. |
0481150700
|
[1] |
O RING
|
0.0044(lbs); 0.002
|
| 140. |
0113351440
|
[2] |
BOLT
|
0.1540(lbs); 0.070
|
| 150. |
6C14097110
|
[1] |
KIT FRONT AXLE
|
25.5640(lbs); 11.620
|
| 160. |
6C14097150
|
[1] |
MANUAL FRONT AXLE
|
0.0726(lbs); 0.033
|
