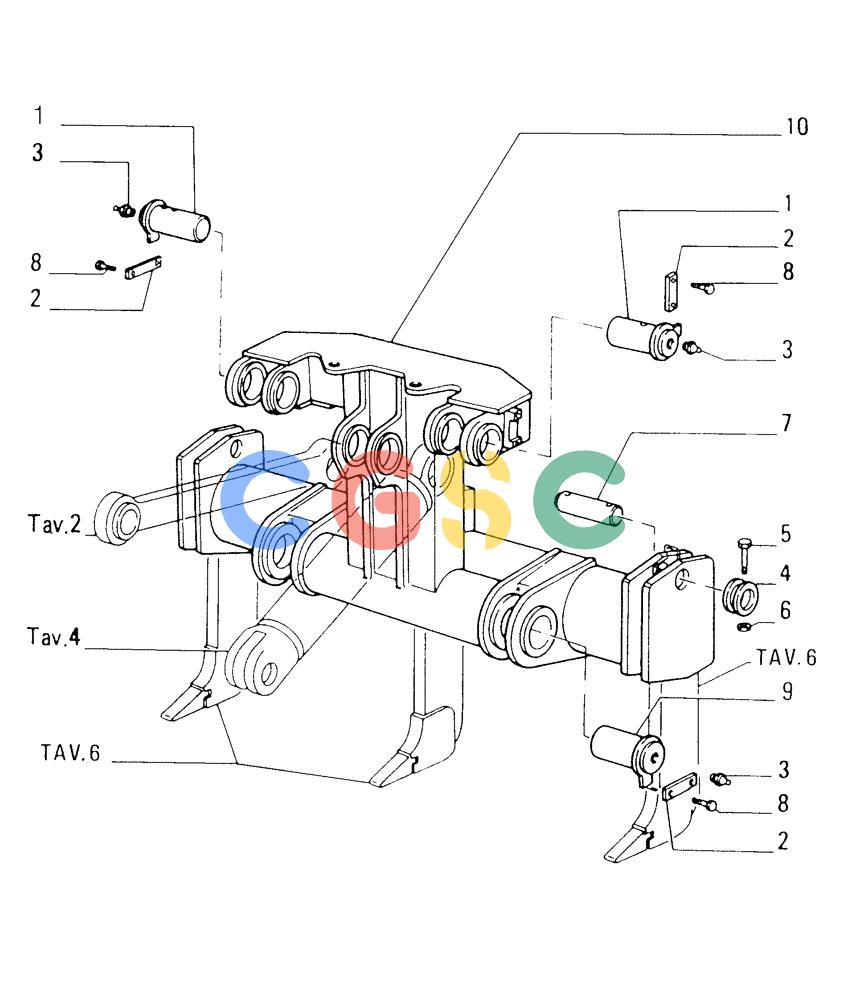

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (9.522[02]) - RIPPER (PD) - FRAME - OPTIONAL CODE 76029164 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
123 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8270126 | [2] | PLATE | LEC Superseded by part number: 76092114 |
| 2. | 8285989 | [1] | PAD | LEC Superseded by part number: 76092115 |
| 3. | 8285990 | [1] | PLATE | LEC Superseded by part number: 76092116 |
| 4. | 76027740 | [2] | PIN | LEC |
| 5. | 8299716 | [4] | BUSHING | LEC |
| 6. | 8299718 | [2] | BUSHING | LEC |
| 7. | 8299739 | [2] | BUSHING | LEC |
| 8. | 79065568 | [4] | SEAL,63mm ID x 78.25mm OD x 7.5mm Thk | LEC |
| 9. | 11115331 | [4] | SCREW,Hex, M14 x 25mm, Cl 10.9, Full Thd | LEC |
| 10. | 11118531 | [4] | BOLT,Hex, M16 x 40, 10.9 | BHB Superseded by part number: 374835 |
| 11. | 12575121 | [1] | NUT,M20 x 1.5, Cl 10 | IMO |
| 12. | 13407211 | [3] | LUBE NIPPLE,M10 x 1 | TTF Superseded by part number: 84351730 |
| 13. | 79023900 | [8] | SEALING RING,80mm ID x 95mm OD x 7.5mm Thk | LEC |
| 14. | 79110011 | [1] | FRAME | LEC- ASSY Superseded by part number: 76092112 |
| 15. | 79099476 | [1] | LINK | LEC- ASSY |
| 16. | 76030766 | [2] | DECAL | LEC Superseded by part number: 76030758 |
| 17. | 76027739 | [1] | PIN | LEC |
| 18. | 8299995 | [1] | LOCKING PLATE | LEC Superseded by part number: 76092109 |
| 19. | 11112431 | [2] | SCREW,Hex, M12 x 30mm, Cl 10.9, Full Thd | LEC Superseded by part number: 87015736 |
