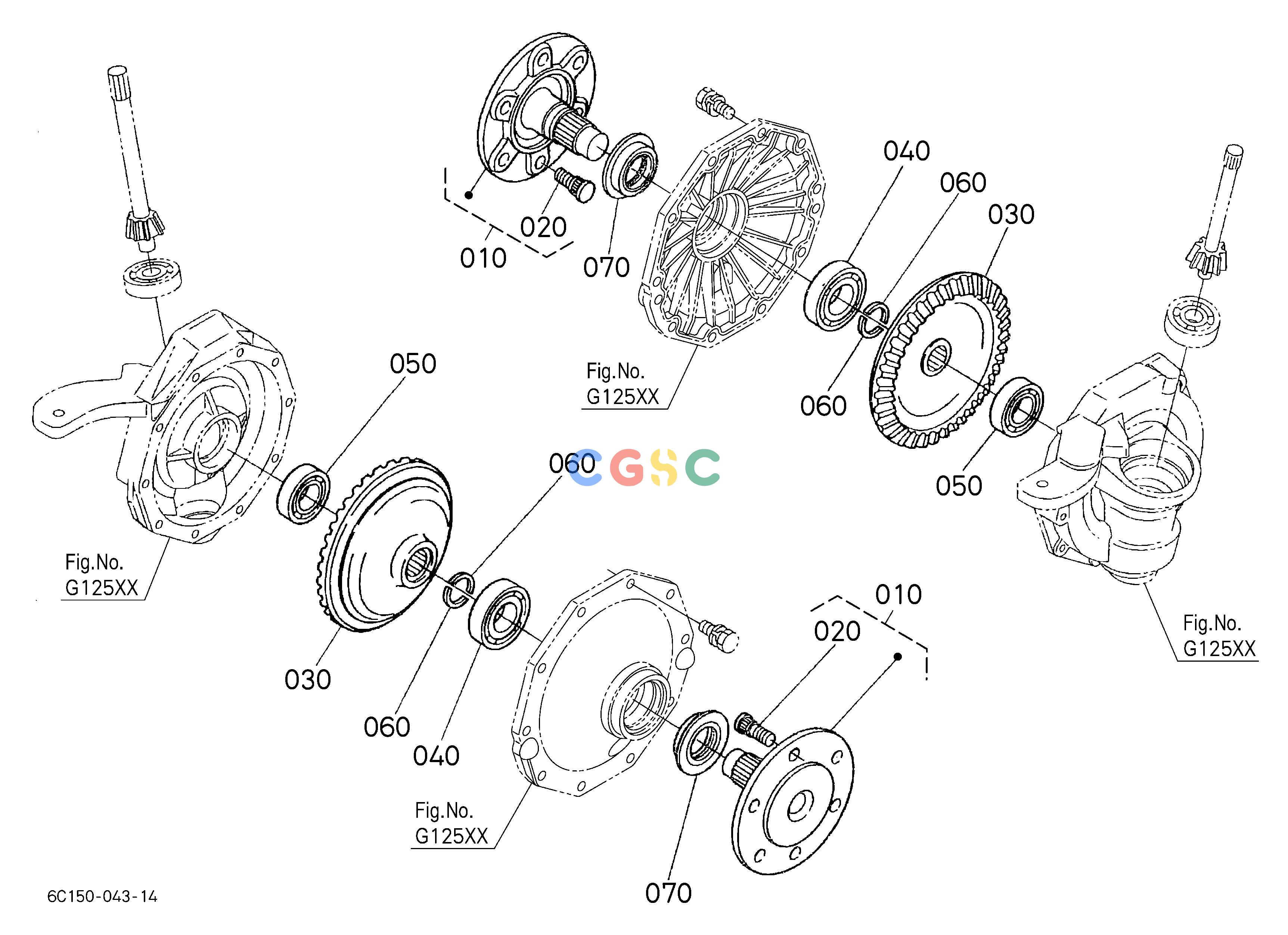

久保田零件查询G13001 FRONT AXLE [4WD] FRONT AXLEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
167 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6A10057300
|
[2] |
ASSY SHAFT F.AXLE
|
3.3000(lbs); 1.500
|
| 020. |
6C04057330
|
[12] |
BOLT
|
0.0770(lbs); 0.035
|
| 030. |
6C04057310
|
[2] |
GEAR BEVEL
|
6.6000(lbs); 3.000
|
| 030. |
H6C0057300
|
[2] |
GEAR BEVEL
|
6.6000(lbs); 3.000
|
| 040. |
0810106206
|
[2] |
BEARING BALL
|
0.4290(lbs); 0.195
|
| 050. |
0810106305
|
[2] |
BEARING BALL
|
0.5060(lbs); 0.230
|
| 060. |
6715656820
|
[4] |
COLLAR SET
|
0.0088(lbs); 0.004
|
| 070. |
3741057340
|
[2] |
SEAL OIL
|
0.0990(lbs); 0.045
|
