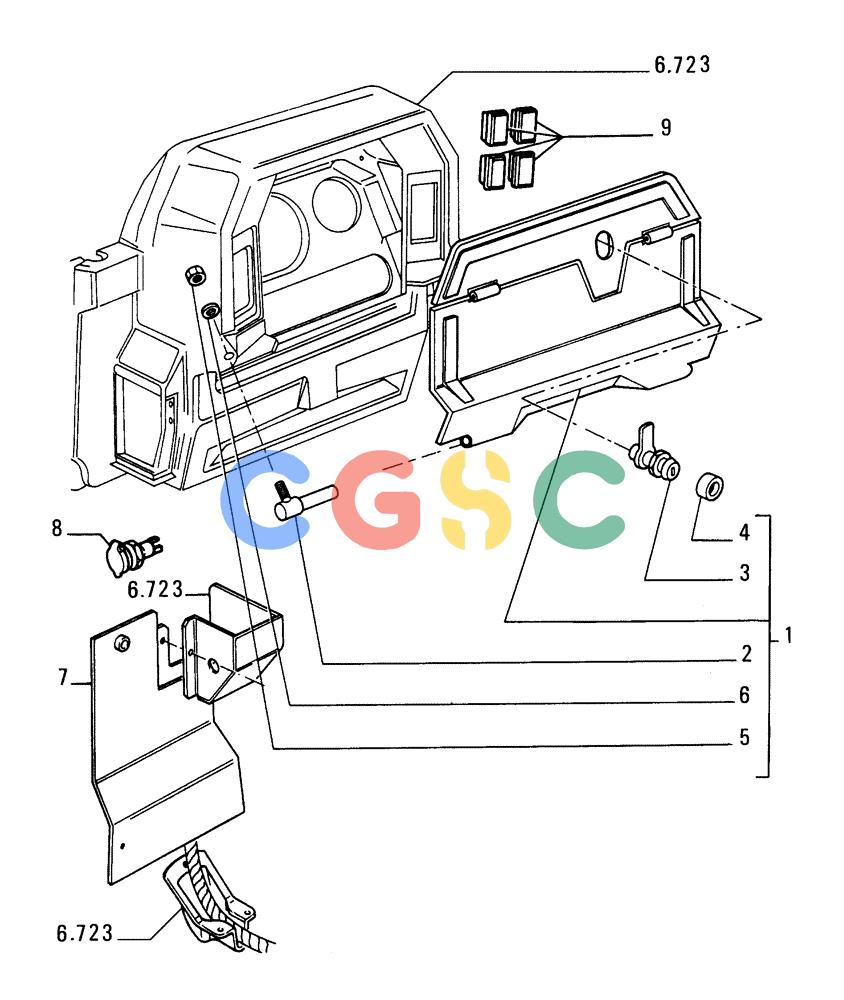

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (9.651[04]) - ROPS CANOPY - OPTIONAL CODE 76029305 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
143 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79095887 | [1] | COVER | LECASSY |
| 2. | 79098262 | [2] | PIN | LEC |
| 3. | 79092129 | [1] | LOCK | LEC Superseded by part number: 73163461, 73162564, 73162563 |
| 4. | 79094691 | [1] | SPACER | LEC |
| 6. | 12637806 | [1] | WASHER | MOD Superseded by part number: 12637821 |
| 7. | 79091336 | [1] | GUARD | LEC |
| 8. | 79090991 | [1] | POWER SOCKET | BHB |
| 9. | 79101857 | [4] | PLUG | LEC Superseded by part number: 5151033 |
| 5. | 86639241 | [2] | NUT,M5 x .8, Cl 8 | FAR |
