纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (9.665[05]) - AIR CONDITIONING - OPTIONAL CODE 76042216 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
560 次

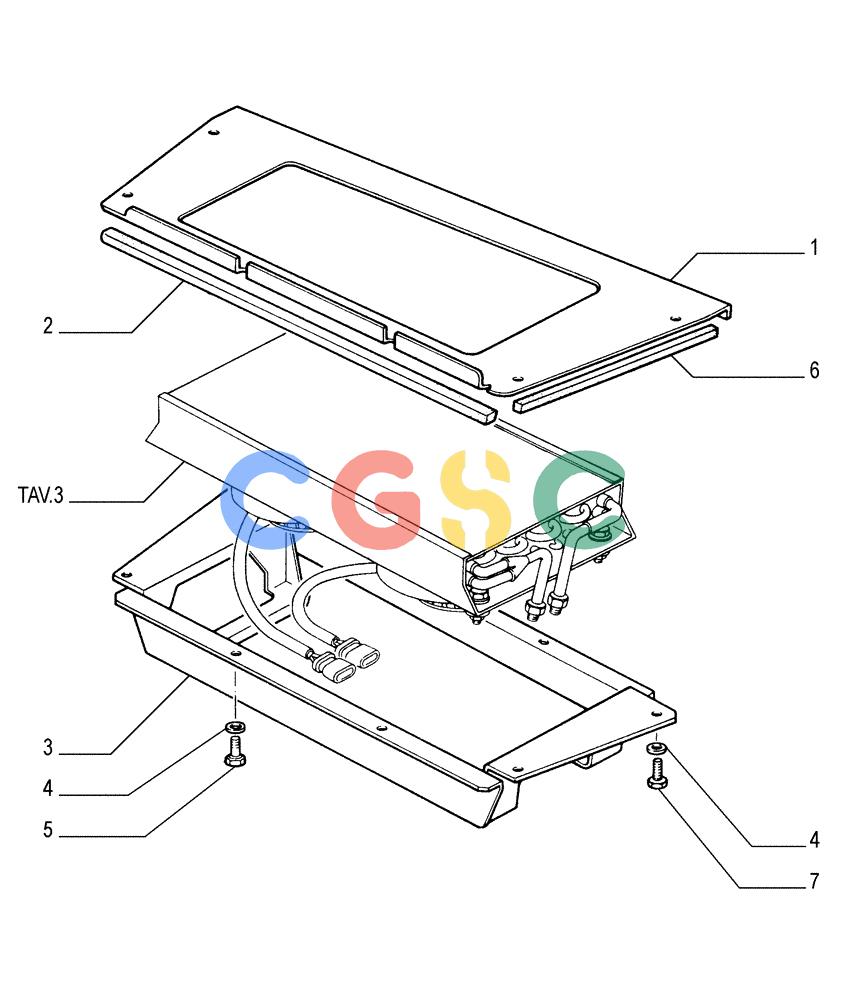

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79115124 | [1] | PLATE | LEC |
| 2. | 79115127 | [1] | GASKET | LEC |
| 3. | 79115117 | [1] | SUPPORT | LEC |
| 4. | 14496531 | [8] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC Superseded by part number: 86624184 |
| 5. | 16043631 | [4] | SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd | BHB Superseded by part number: 43234 |
| 6. | 79115126 | [2] | GASKET | LEC |
| 7. | 16043031 | [4] | BOLT,Hex, M8 x 12mm, Cl 10.9, Full Thd | LEC Superseded by part number: 43231 |
