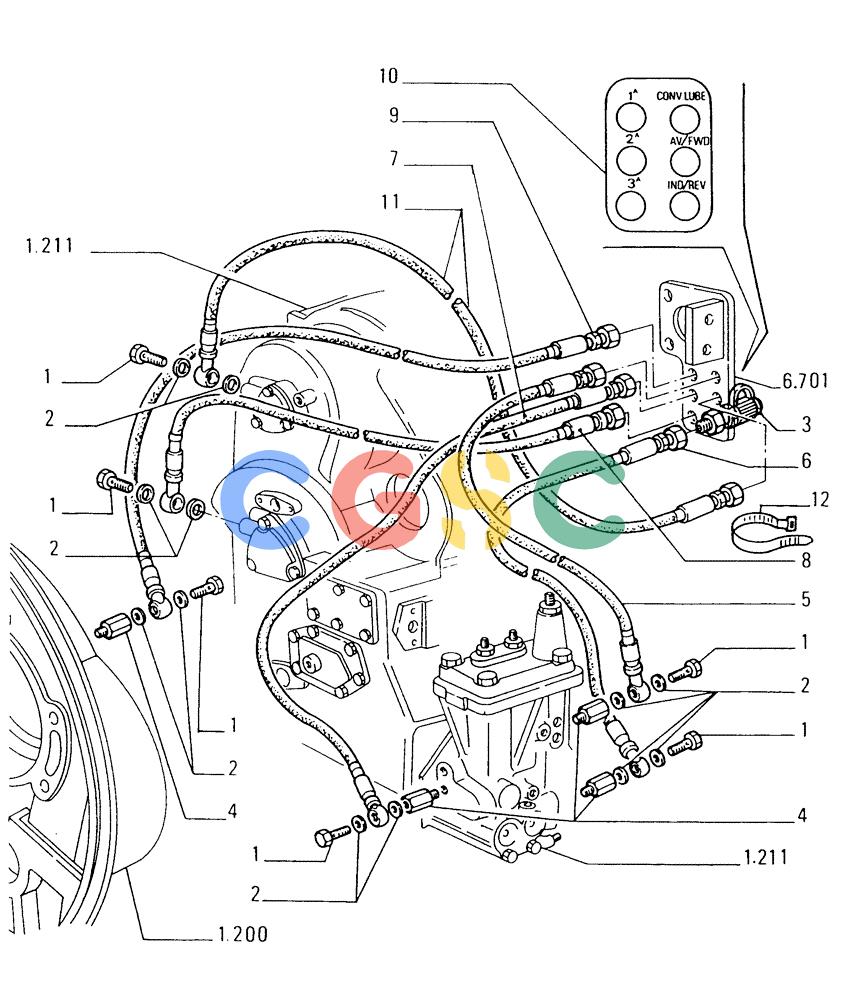

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (9.756[01]) - DIAGNOSTIC SYSTEM - OPTIONAL CODE 76042926 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
261 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 10181714 | [6] | BANJO BOLT | LEC12X1,5X11 Superseded by part number: 10181717 |
| 2. | 2854292 | [12] | SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk | TOR Superseded by part number: 10298460 |
| 3. | 79038298 | [6] | HYD CONNECTOR | LEC |
| 4. | 79072548 | [4] | HYD CONNECTOR | LEC |
| 5. | 79094617 | [1] | FLEXIBLE HOSE,1350.00 mm | LEC |
| 6. | 79094618 | [1] | FLEXIBLE HOSE,8.00 mm ID x 1450.00 mm | LEC |
| 7. | 79094619 | [1] | FLEXIBLE HOSE,1850.00 mm | LEC |
| 8. | 79094620 | [1] | FLEXIBLE HOSE,1500.00 mm | LEC |
| 9. | 79094621 | [1] | FLEXIBLE HOSE,1700.00 mm | LEC |
| 10. | 79096873 | [1] | DECAL | LEC |
| 11. | 79096840 | [1] | FLEXIBLE HOSE | LEC |
| 12. | 4982514 | [2] | CABLE TIE | LEC370 Superseded by part number: 87615202 |
