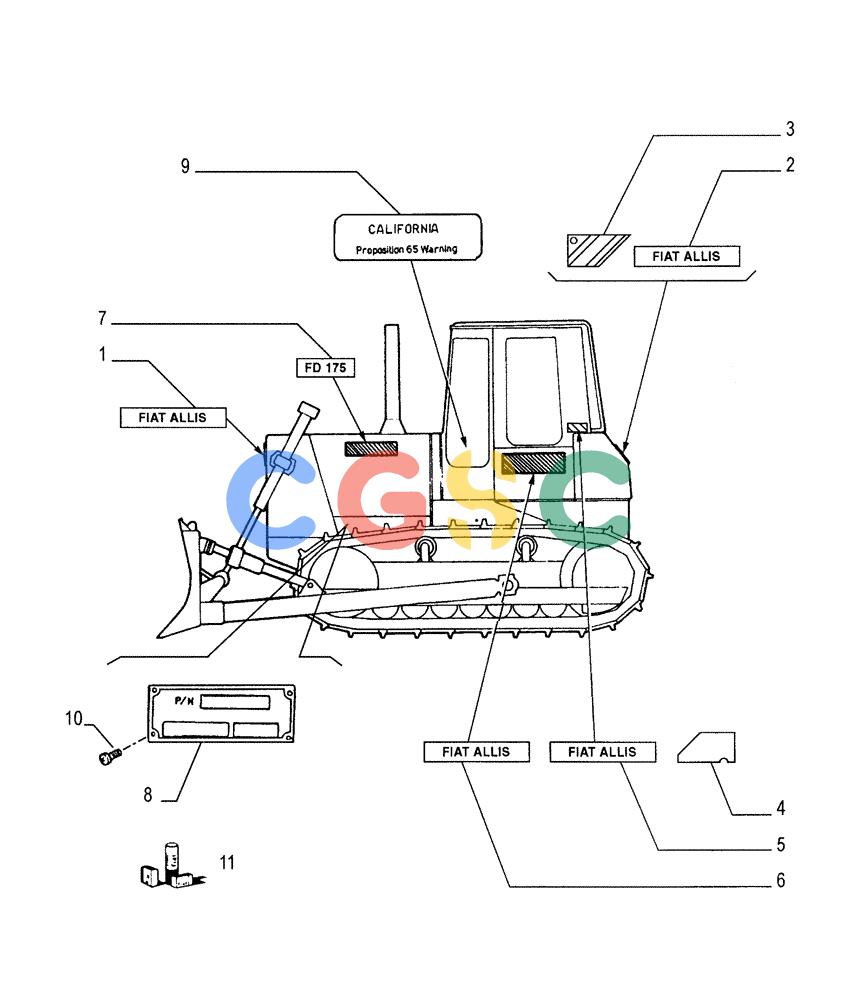

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (9.782[01]) - TRADE MARKS - FIATALLIS VERSION - OPTIONAL CODE 76041905 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
991 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76041728 | [1] | DECAL | LEC- FRONT |
| 2. | 76041903 | [1] | DECAL | LECREAR LEFT |
| 3. | 76029639 | [1] | DECAL | LECREAR RIGHT |
| 4. | 76029574 | [1] | DECAL | LECSIDE LEFT |
| 4. | 76029573 | [1] | DECAL | LECSIDE RIGHT |
| 5. | 76041761 | [2] | DECAL | LEC- SIDE |
| 6. | 76041593 | [2] | DECAL | LEC- SIDE |
| 7. | 76029571 | [2] | DECAL | LEC- SIDE FD175 |
| 8. | 500315568 | [1] | DECAL | TOR |
| 9. | 76036500 | [1] | DECAL | BHB |
| 10. | 13683801 | [4] | RIVET | NH Superseded by part number: 13683809 |
| 11. | 76041904 | [1] | KIT | LEC |
