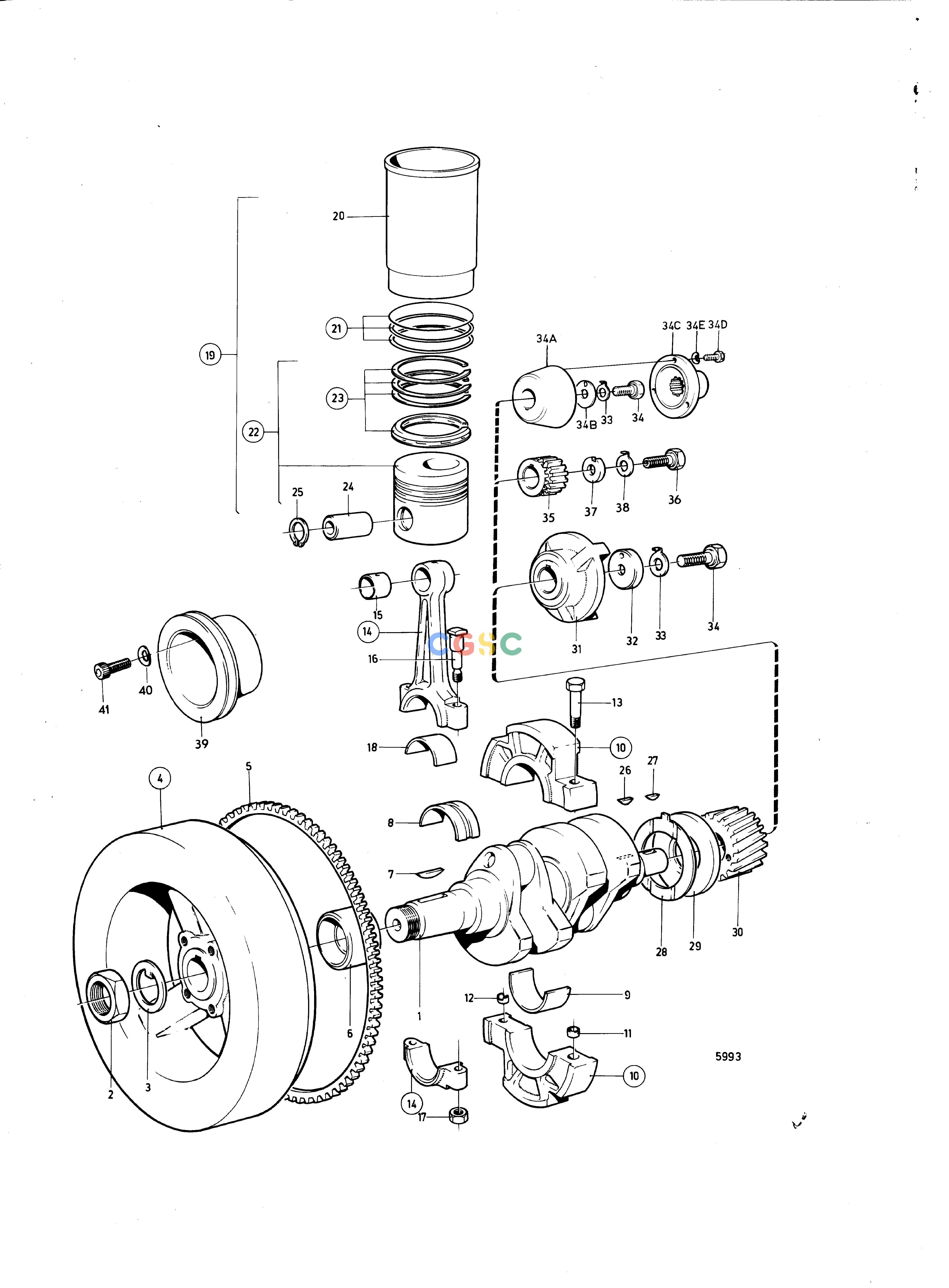

沃尔沃零件查询MD11; MD11C; MD11D; MD17; MD17C; MD17DEngineCrankshaft and Related Parts: AEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
772 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
833745
|
[1] |
Crankshaft
|
Excl MD11C/HD-RB spec 867351,-499,-577. excl MD11C/HD-BT., (833986)
|
| 1. |
829625
|
[1] |
Crankshaft
|
MD11C/HD-BT. MO-35930., MD11C/HD-RB spec 867351,-499,-577
|
| 2. |
10764
|
[1] |
Nut
|
|
| 3. |
15192
|
[1] |
Washer
|
|
| 4. |
829956
|
[1] |
Flywheel
|
(833844)
|
| 5. |
833489
|
[1] |
Gear ring
|
|
| 6. |
803356
|
[1] |
Sealing ring
|
|
| 7. |
910121
|
[1] |
Woodruff key
|
|
| 8. |
875483
|
[2] |
Main bearing kit
|
Std D
|
| 8. |
875485
|
[2] |
Main bearing kit
|
0,25mm u.s
|
| 8. |
875486
|
[2] |
Main bearing kit
|
0,50mm u.s
|
| 8. |
875487
|
[2] |
Main bearing kit
|
0,75mm u.s
|
| 9. |
875484
|
[1] |
Main bearing kit
|
Std D
|
| 9. |
875488
|
[1] |
Main bearing kit
|
0,25mm u.s
|
| 9. |
875489
|
[1] |
Main bearing kit
|
0,50mm u.s
|
| 9. |
875490
|
[1] |
Main bearing kit
|
0,75mm u.s
|
| 10. |
897223
|
[1] |
Bearing
|
|
| 11. |
70415
|
[1] |
Guide sleeve
|
|
| 12. |
301718
|
[1] |
Guide sleeve
|
|
| 13. |
955343
|
[2] |
Hexagon screw
|
|
| 14. |
807039
|
[2] |
Connecting rod
|
|
| 15. |
803555
|
[2] |
Bushing
|
|
| 16. |
807040
|
[4] |
Connecting rod bolt
|
|
| 17. |
463643
|
[4] |
Nut
|
|
| 18. |
875491
|
[2] |
Big-end bearing kit
|
Std D
|
| 18. |
875492
|
[2] |
Big-end bearing kit
|
0,25mm u.s
|
| 18. |
875493
|
[2] |
Big-end bearing kit
|
0,50mm u.s
|
| 18. |
875494
|
[2] |
Big-end bearing kit
|
0,75mm u.s
|
| 19. |
875549
|
[2] |
Cylinder liner kit
|
|
| 20. |
|
|
|
|
| 21. |
875550
|
[2] |
Sealing ring kit
|
|
| 22. |
875551
|
[2] |
Piston kit
|
|
| 23. |
875498
|
[2] |
Piston ring kit
|
|
| 24. |
833185
|
[2] |
Gudgeon pin
|
|
| 25. |
914515
|
[4] |
Snap ring
|
|
| 26. |
910121
|
[1] |
Woodruff key
|
|
| 27. |
910121
|
[1] |
Woodruff key
|
See group 4A
|
| 28. |
803515
|
[2] |
Axial bearing
|
|
| 29. |
802502
|
[1] |
Support washer
|
|
| 30. |
405025
|
[1] |
Gear
|
|
| 31. |
833746
|
[1] |
Companion flange
|
MD11C, MD11C/HY, MD11C/110S., MD11C/HD-BT, MO 35931-., See group 4A
|
| 32. |
833785
|
[1] |
Spacer washer
|
|
| 33. |
833849
|
[1] |
Lock washer
|
See group 4A
|
| 34. |
959664
|
[1] |
Hexagon screw
|
|
| 35. |
802588
|
[1] |
Gear
|
MD11C/HD-BT, MO-35930. MD11C/HD-RB
|
| 36. |
807041
|
[1] |
Lock screw
|
MD11C/HD-BT, MO-35930. MD11C/HD-RB
|
| 37. |
803225
|
[1] |
Washer
|
MD11C/HD-BT, MO-35930. MD11C/HD-RB
|
| 38. |
803226
|
[1] |
Lock washer
|
MD11C/HD-BT, MO-35930. MD11C/HD-RB.
|
| 39. |
833425
|
[1] |
Pulley
|
Spec 867421, -498, -540., MO-51375
|
| 39. |
829636
|
[1] |
V-belt pulley, 2 grooves
|
MD11C/HD-RB, MD11C/HD-BT, MD11C/HD-HY., Spec 867499, MO-51375
|
| 39. |
829603
|
[1] |
Pulley, 2 grooves
|
Spec 867499, -677, -678., MO 51376-
|
| 40. |
942336
|
[4] |
Spring washer
|
Spec 867499, -677, -678., MO 51376-
|
| 41. |
959240
|
[4] |
Hex. socket screw
|
Spec 867499, -677, -678., MO 51376-
|
| 41. |
959239
|
[4] |
Hex. socket screw
|
For pulley 433425., L=30mm
|
