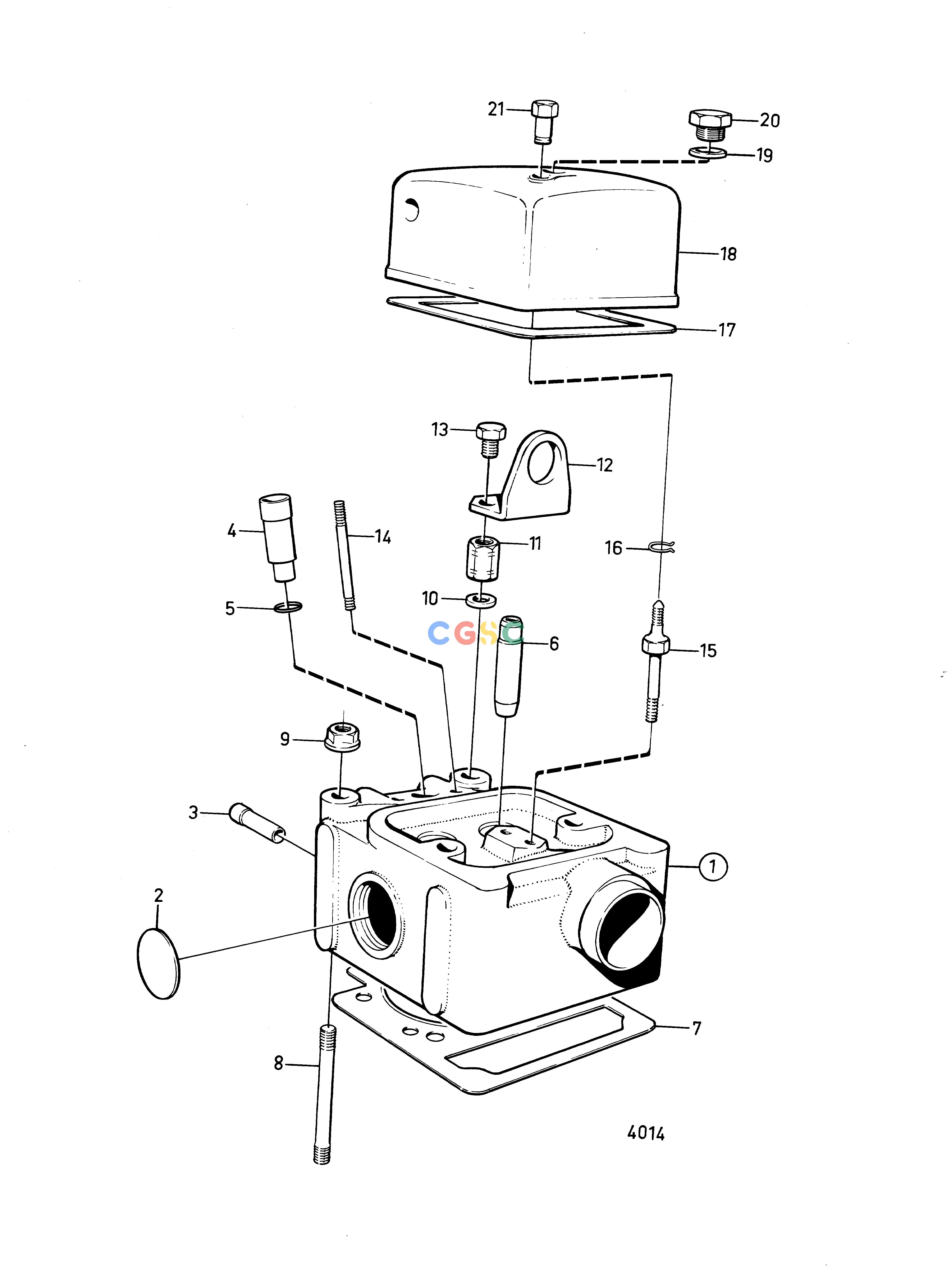

沃尔沃零件查询MD11; MD11C; MD11D; MD17; MD17C; MD17DEngineCylinder Head: BEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
499 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
833824
|
[2] |
Cylinder head
|
|
| 2. |
941400
|
[4] |
Expansion plug
|
|
| 3. |
807229
|
[2] |
Nozzle
|
|
| 4. |
897170
|
[2] |
Nozzle sleeve
|
|
| 5. |
803068
|
[3] |
O-ring
|
|
| 6. |
419653
|
[2] |
Valve guide, intake
|
|
| 6. |
829867
|
[2] |
Guide sleeve, exhaust
|
|
| 7. |
833453
|
[2] |
Gasket
|
|
| 9. |
943414
|
[6] |
Nut
|
|
| 10. |
942058
|
[2] |
Washer
|
|
| 11. |
941595
|
[2] |
Hexagon nut
|
|
| 12. |
|
|
|
|
| 13. |
941596
|
[2] |
Screw
|
|
| 14. |
952991
|
[4] |
Stud
|
See group 2C
|
| 15. |
829723
|
[2] |
Screw
|
MD11C spec 867420, 867421., MD17C spec 867422, -423, -426, -427, -428.
|
| 16. |
403098
|
[2] |
Spring ring
|
|
| 17. |
802399
|
[2] |
Gasket
|
|
| 18. |
833268
|
[2] |
Valve cover
|
|
| 19. |
957191
|
[2] |
Gasket
|
|
| 20. |
833496
|
[2] |
Plug
|
|
| 21. |
150146
|
[2] |
Nut
|
|
