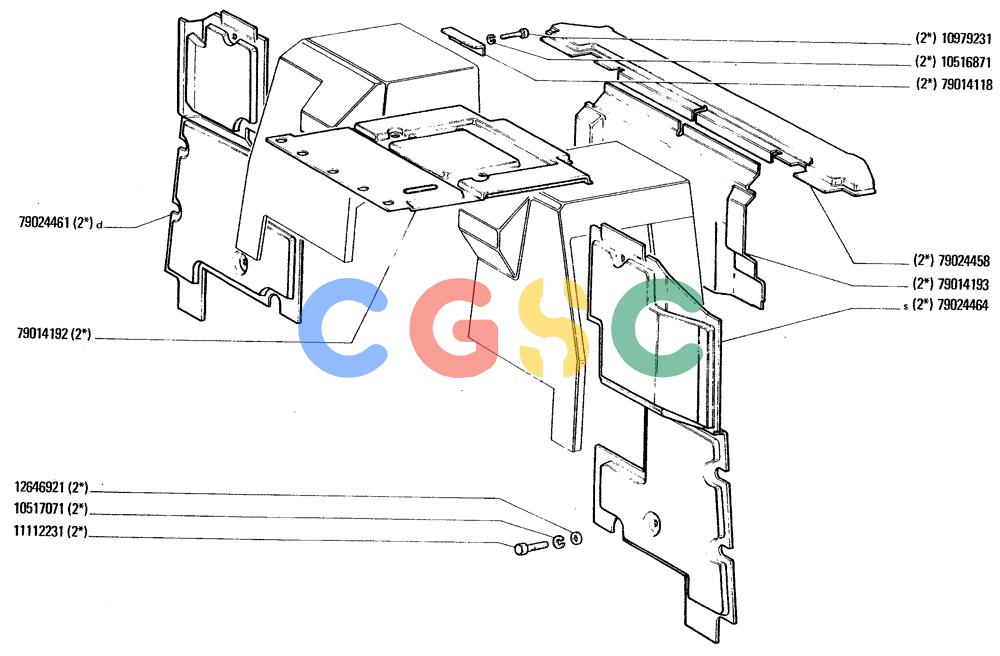

纽荷兰零件查询(FD20) - CRAWLER DOZER (L3.10[001A]) - SEAT PANELS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
765 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 10516871. | 10516871 | [2] | LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk | HFILOCKWASHER Superseded by part number: 10571873 |
| 10517071. | 10517071 | [6] | LOCK WASHER,12.2mm ID x 21.1mm OD x 3.1mm Thk | HFILOCKWASHER Superseded by part number: 10517073 |
| 10979231. | 10979231 | [2] | BOLT,Hex, M10 x 16mm, Cl 10.9, Full Thd | LEC Superseded by part number: 87547661 |
| 11112231. | 11112231 | [6] | SCREW,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd | LEC Superseded by part number: 398792 |
| 12646921. | 12646921 | [6] | WASHER,12.2mm ID x 28mm OD x 3mm Thk | BHB Superseded by part number: 16887624 |
| 79014118. | 79014118 | [2] | BRACKET | LEC |
| 79014192. | 79014192 | [1] | PANEL | LEC |
| 79014193. | 79014193 | [1] | GUARD | LECPROTECTION |
| 79024458. | 79024458 | [1] | PANEL | LEC |
| 79024461. | 79024461 | [1] | PANEL | LEC |
| 79024464. | 79024464 | [1] | PANEL | LEC |
