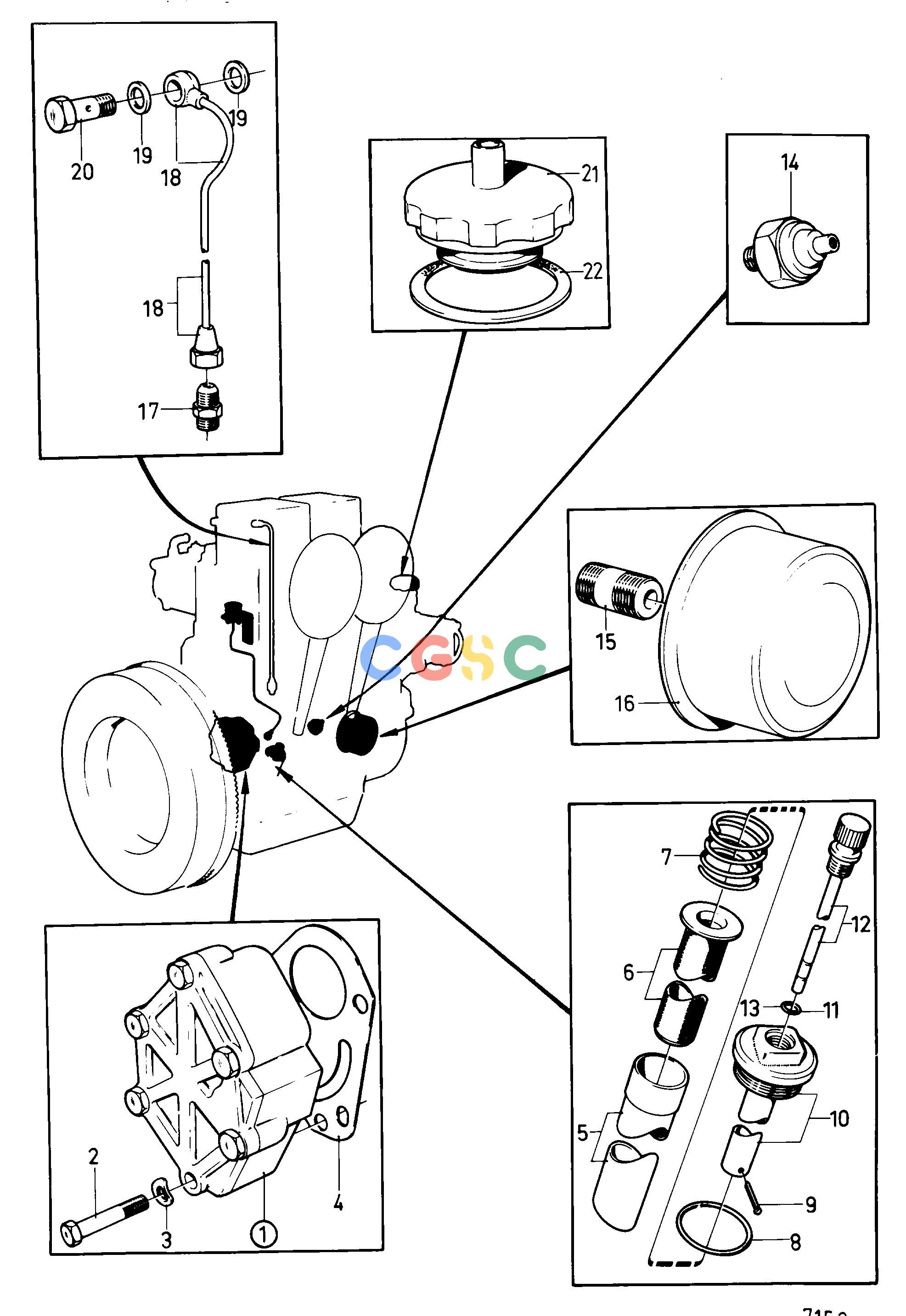

沃尔沃零件查询MD11; MD11C; MD11D; MD17; MD17C; MD17DEngineLubricating System: BEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
237 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
829730
|
[1] |
Oil pump
|
|
| 2. |
947235
|
[3] |
Screw
|
|
| 3. |
941907
|
[3] |
Spring washer
|
|
| 4. |
833856
|
[1] |
Gasket
|
|
| 5. |
840538
|
[1] |
Tube
|
MD11D excl MD11D/HD-HE, MD11D/1SA spec 867696
|
| 6. |
803251
|
[1] |
Oil strainer
|
|
| 7. |
803339
|
[1] |
Spring
|
|
| 8. |
807363
|
[1] |
Sealing ring
|
MO 13398-
|
| 9. |
907834
|
[1] |
Split pin
|
|
| 10. |
840540
|
[1] |
Cover
|
|
| 12. |
840536
|
[1] |
Oil dipstick
|
MD11D excl MD11D/HD-HE, MD11D/1SA spec 867696
|
| 12. |
829943
|
[1] |
Oil dipstick
|
MD11D/HD-HE, MD11D/USA spec 867696
|
| 13. |
949187
|
[1] |
O-ring
|
MD11D excl MD11D/HD-HE, MD11D/1SA spec 867696., Included in 840536.
|
| 14. |
|
|
|
See group 3
|
| 15. |
418440
|
[1] |
Nipple
|
|
| 16. |
897321
|
[1] |
Oil filter
|
|
| 17. |
829590
|
[2] |
Nipple
|
|
| 18. |
807128
|
[2] |
Pipe
|
|
| 19. |
957171
|
[4] |
Gasket
|
|
| 20. |
74033
|
[2] |
Hollow screw
|
|
| 21. |
418954
|
[1] |
Ventilator cowl
|
MO 12432-
|
| 22. |
940096
|
[1] |
Gasket
|
|
