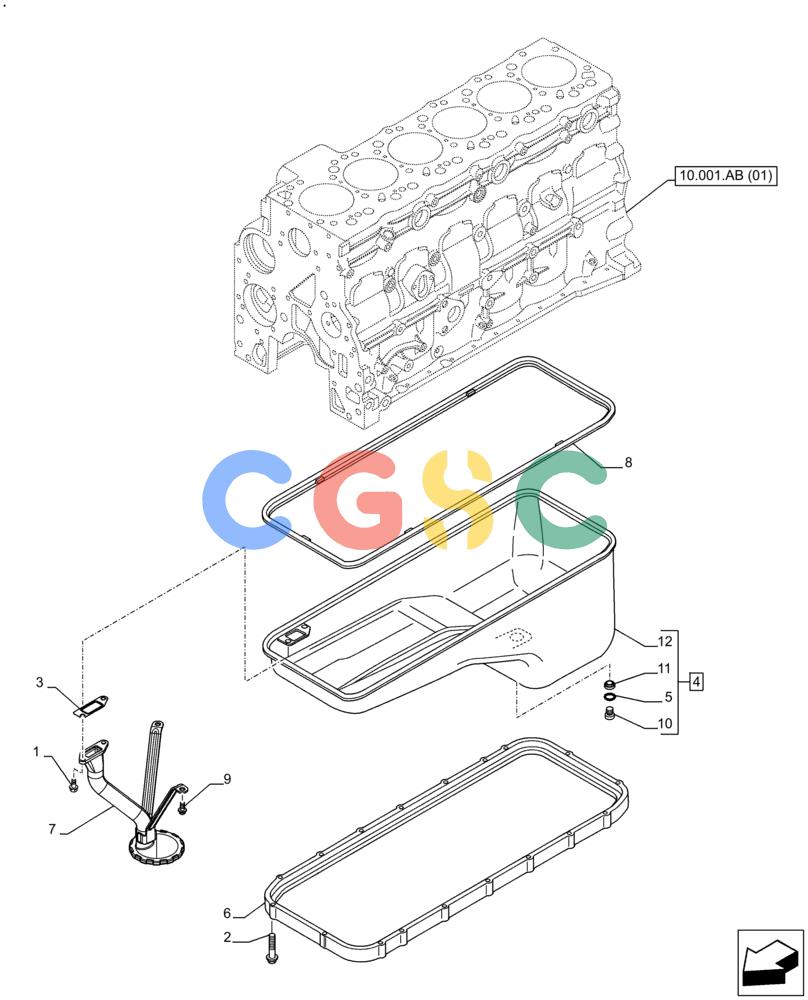

神钢零件查询(F4HFE613G B004) - ENGINE 5801862194 - 47587184 TIER4 B (9/15-) (10.102.AP) - ENGINE, OIL PAN Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
764 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4899020 | [2] | FLANGE BOLT,Hex, M8 x 1.25 x 20mm | TOR Superseded by part number: 16673635 |
| 2. | 4899091 | [18] | SCREW,Hex Flange Cap, M8 x 1.25 x 40.00mm | BAS |
| 3. | 4898301 | [1] | GASKET,0.42mm Thk | TOR |
| 5. | NSS | [1] | NOT SOLD SEPARAT | CONO-RING; Incl in 4 |
| 6. | 4897858 | [1] | SPACER | TOR |
| 9. | 4895291 | [2] | SCREW,Hex Flg, M10 x 1.5 x 20 | TOR |
| 10. | NSS | [1] | NOT SOLD SEPARAT | CONPLUG; Incl in 4 |
| 11. | NSS | [1] | NOT SOLD SEPARAT | CONBUSH; Incl in 4 |
| 12. | NSS | [1] | NOT SOLD SEPARAT | CONPAN; Incl in 4 |
