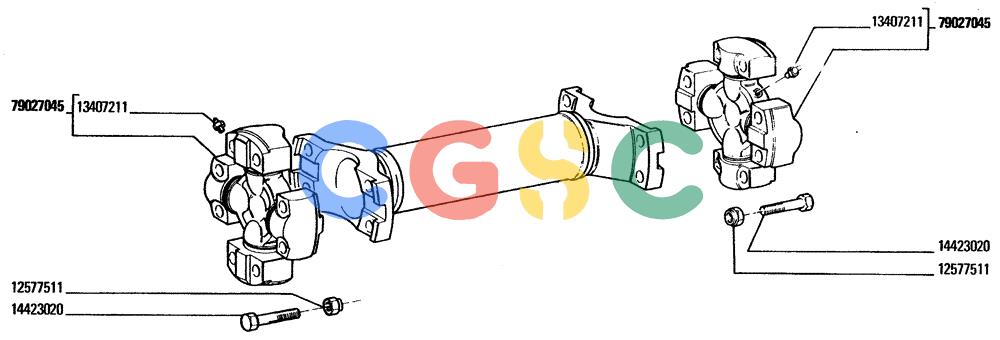

纽荷兰零件查询(FD20) - CRAWLER DOZER (B3.16[001]) - PROPELLER SHAFT New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
376 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 12577511. | 12577511 | [8] | NUT,M12 x 1.75, Cl 8 | LECLOCK, M12 x 1.75, Cl 8 Superseded by part number: 12577521 |
| 13407211. | 13407211 | [2] | LUBE NIPPLE,M10 x 1 | TTFNIPPLE, LUBE, M10 x 1 Superseded by part number: 84351730 |
| 14423020. | 14423020 | [8] | HEX SOC SCREW,M12 x 1.75 x 80mm, Cl 8.8 | LEC |
| 79027045. | 79027045 | [2] | SPIDER | LEC Superseded by part number: 84355368 |
| 79027047. | 79027047 | [1] | SHAFT | LEC |
