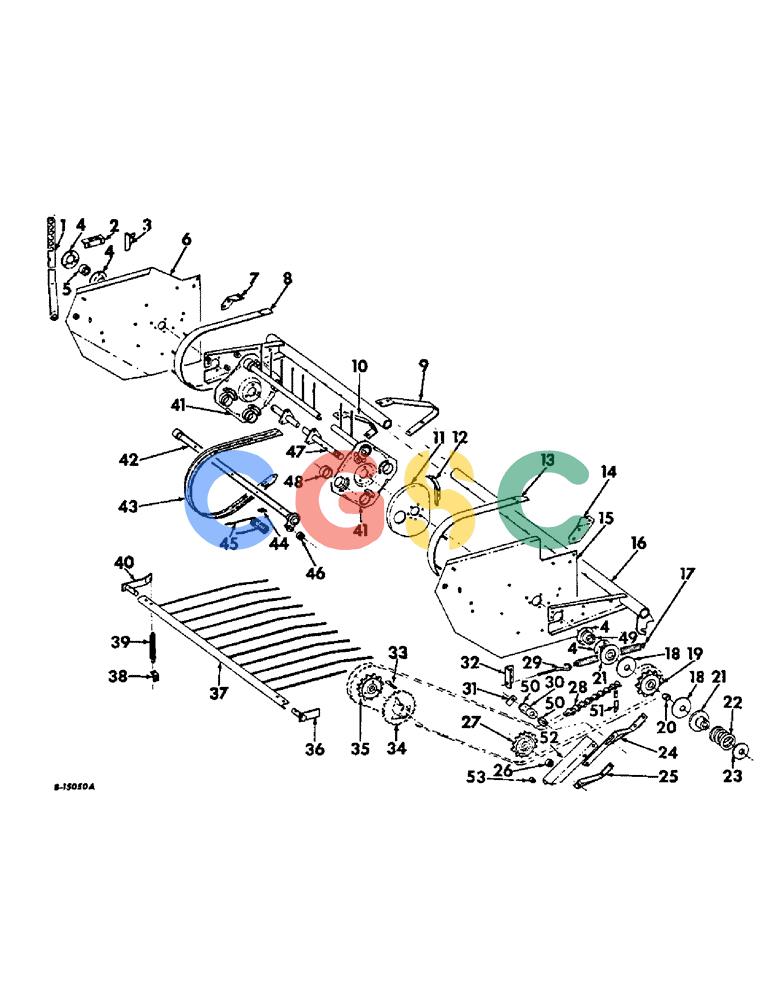

| 1. |
670565R1
|
[1] |
|
P
STRAP, pickup latch
|
| . . |
179885
|
[1] |
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5
|
IH
Superseded by part number: 87689
|
| . . |
102637
|
[1] |
NUT,1/2"-13, G5
|
IH
Superseded by part number: 280431
|
| . . |
19574R1
|
[1] |
BOLT, 3/8 x 5/8 C-Z hex-hd mach
|
|
| . . |
120377
|
[1] |
NUT,3/8" - 16, Gr 5
|
IH
Superseded by part number: 280136
|
| 2. |
670566R1
|
[1] |
SUPPORT ASSY.
|
IH
BRACKET, pickup latch
|
| . . |
80280503
|
[2] |
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd
|
BEL
BOLT, 3/8 x 1 sq-nk crg
|
| . . |
102635
|
[2] |
NUT,3/8"-16, G5
|
IH
Superseded by part number: 280136
|
| . . |
103321
|
[2] |
LOCK WASHER,3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| 3. |
670567R1
|
[1] |
SUPPORT
|
IH
LOCK, pickup latch
|
| . . |
14994R1
|
[1] |
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2
|
IH
BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2 Superseded by part number: 434-512
|
| . . |
9635082
|
[2] |
NUT,5/16" - 18, Gr 5
|
NH
5/16-18 hex.
|
| 4. |
671682R1
|
[4] |
NO LONGER SERVICED
|
IH
FLANGE, pickup cylinder brg Superseded by part number: 3101582R1
|
| . . |
17425R1
|
[3] |
BOLT,Hex, 5/16" - 18 x 1", Gr 2
|
IH
5/16 x 1 hex-hd mach Superseded by part number: 179818
|
| . . |
15007R1
|
[3] |
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2
|
IH
BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2 Superseded by part number: 598803R1, 411-516
|
| . . |
103320
|
[6] |
LOCK WASHER,5/16"
|
IH
WASHER, LOCK, 5/16" Superseded by part number: 322358, 83990583
|
| 5. |
671681R91
|
[1] |
BEARING ASSY,25.43mm ID x 52.09mm OD x 16mm W
|
IH
ASSY, pickup cylinder
|
| 6. |
670535R1
|
[1] |
SHEET
|
IH
pickup end RH
|
| . . |
17412R1
|
[2] |
BOLT,Hex, 3/8" - 16 x 3/4", Gr 2
|
IH
3/8 x 3/4 hex-hd mach Superseded by part number: 86500692
|
| . . |
Q1597
|
[4] |
WASHER
|
IH
13/32 x 3/4 x 16 ga Superseded by part number: 86632580
|
| 7. |
670540R1
|
[1] |
|
P
ANGLE, stripper support RH
|
| 8. |
670534R11
|
[1] |
STRIPPER
|
IH
ASSY, end RH Superseded by part number: 201588C1
|
| . . |
Q397
|
[4] |
WASHER
|
IH
11/32 x 3/4 x 16 ga Superseded by part number: 95-81069
|
| 9. |
670537R2
|
[11] |
HOLDER
|
IH
SUPPORT, pickup stripper
|
| . . |
17648R1
|
[11] |
BOLT, 3/8 x 3-1/4 hex-hd mach
|
|
| 10. |
670538R2
|
[11] |
|
P
BRACE, pickup stripper
|
| 11. |
662317R2
|
[1] |
CAM
|
IH
pickup tooth control
|
| 12. |
662318R11
|
[1] |
GUIDE
|
IH
ASSY, tooth bar roller
|
| . . |
550827R1
|
[1] |
NUT, 5/16-18 weld pilot std
|
|
| . . |
17407R1
|
[1] |
BOLT,5/16" - 18 x 5/8"
|
IH
5/16 x 5/8 hex-hd mach
|
| 13. |
670533R11
|
[1] |
|
P
STRIPPER ASSY, end LH
|
| 14. |
670539R1
|
[1] |
ANGLE
|
IH
stripper support LH
|
| 15. |
670532R1
|
[1] |
SHEET
|
IH
pickup end LH
|
| 16. |
670527R91
|
[1] |
FUNNEL
|
IH
FRAME ASSY, pickup
|
| 17. |
312
|
[1] |
|
P
SPRING, pickup balance
|
| 18. |
662291R1
|
[2] |
LINING
|
IH
pickup drive clutch Superseded by part number: 662291R2
|
| 19. |
662023R1
|
[1] |
DRIVE SPROCKET
|
IH
SPROCKET, pickup slip clutch
|
| 20. |
662079R1
|
[1] |
BUSHING
|
IH
pickup slip clutch sprocket
|
| 21. |
662026R2
|
[2] |
HUB
|
IH
pickup slip clutch Superseded by part number: 662026R4
|
| 22. |
U13661
|
[1] |
VALVE SPRING
|
IH
SPRING, compression
|
| 23. |
662356R1
|
[1] |
DISC
|
IH
WASHER, slip clutch spring retainer Superseded by part number: 202090C1
|
| . . |
219755
|
[1] |
BACK-UP RING
|
IH
1-14 hex. jam
|
| 24. |
670560R91
|
[1] |
|
P
BRACKET ASSY, chain tightener, 5889N and below
|
| 25. |
670557R91
|
[1] |
|
P
SUPPORT ASSY, stationary sprocket, 5889N and below
|
| . . |
17629R1
|
[1] |
BOLT,Hex, 5/8" - 11 x 3"
|
IH
5/8 x 3 hex-hd mach Superseded by part number: 87338
|
| . . |
657102R1
|
[2] |
WASHER
|
IH
21/32 x 1-1/4 x 3/16
|
| . . |
15043R1
|
[2] |
BOLT, 5/8 x 1-1/2 sq-nk crg
|
|
| . . |
102639
|
[3] |
NUT,5/8"-11, G5
|
IH
Superseded by part number: 280374
|
| . . |
103325
|
[3] |
LOCK WASHER,5/8"
|
IH
WASHER, LOCK, 5/8" Superseded by part number: 86729275
|
| 26. |
479589R91
|
[2] |
BALL BEARING,21.74mm ID x 35.26mm OD x 18mm W
|
IH
ASSY, idler sprocket, 5889N and below
|
| 27. |
670554R91
|
[1] |
|
P
IDLER ASSY, sprocket pickup, 5889N and below
|
| 27. |
673797R91
|
[1] |
DRIVE SPROCKET
|
IH
IDLER ASSY, sprocket pickup, 5890N up Superseded by part number: 300647, 790121R1, 204117C1
|
| . . |
17651R1
|
[1] |
BOLT,Hex, 5/8" - 11 x 3 1/4"
|
IH
5/8 x 3-1/4 hex-hd mach Superseded by part number: 9827853
|
| . . |
551177R1
|
[1] |
WASHER
|
IH
21/32 x 1-1/4 x 16 ga Superseded by part number: 131016
|
| 29. |
670541R1
|
[1] |
SPINDLE
|
IH
BOLT, pickup balance spring
|
| 30. |
668147R1
|
[1] |
BLOCK
|
IH
TIGHTENER, block Superseded by part number: 667459R1
|
| 31. |
670562R1
|
[1] |
RETAINER
|
IH
pickup drive chain
|
| . . |
15160R1
|
[1] |
BOLT
|
IH
1/2 x 3-1/4 sq-nk crg Superseded by part number: 27461R1
|
| . . |
103323
|
[1] |
LOCK WASHER,1/2"
|
IH
WASHER, LOCK, 1/2" Superseded by part number: 87326976
|
| . . |
PO10535
|
[1] |
WASHER
|
IH
17/32 x 1-1/4 x 11 ga Superseded by part number: 495-81287
|
| 32. |
670542R1
|
[1] |
ANCHOR
|
IH
balance spring
|
| . . |
14995R1
|
[2] |
BOLT
|
IH
3/8 x 3/4 sq-nk crg Superseded by part number: 19284R1
|
| 33. |
Q3950
|
[1] |
KEY,Gib, 3/8" Sq x 2 1/4"
|
IH
3/8 x 2-1/4 sq tapered
|
| 35. |
670564R1
|
[1] |
DRIVE SPROCKET
|
IH
SPROCKET, pickup drive
|
| . . |
17471R1
|
[3] |
BOLT,Hex, 3/8" - 16 x 1 1/2"
|
IH
3/8 x 1-1/2 hex-hd mach Superseded by part number: 179843
|
| 36. |
670543R91
|
[1] |
LARGE PIN
|
IH
ARM ASSY, pickup tension LH
|
| . . |
668752R1
|
[1] |
WASHER
|
IH
29/32 x 1-1/4 x 16 ga C-Z Superseded by part number: 86624165
|
| . . |
180151
|
[2] |
BOLT,Hex, 7/16" - 14 x 1 3/4", Gr 5
|
IH
SCREW, 7/16-14 x 1-3/4 hex-hd cap Superseded by part number: 84192879
|
| . . |
271501
|
[2] |
SOCKET
|
NNA
NUT, 7/16-14 znd hex.
|
| . . |
120383
|
[2] |
LOCK WASHER,Helical Spring, 7/16"
|
IH
WASHER, LOCK, 7/16" Superseded by part number: 81547
|
| 37. |
670548R91
|
[1] |
SPARE PART
|
IH
TINE ASSY, pickup cover Superseded by part number: 670548R92
|
| 38. |
662387R1
|
[1] |
ANCHOR
|
IH
CLIP, spring anchor
|
| . . |
18673R1
|
[1] |
CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2
|
IH
BOLT, 5/16 x 1/2 znd sq-nk crg Superseded by part number: 411-58
|
| . . |
120376
|
[1] |
NUT,5/16"-18, G5
|
IH
Superseded by part number: 9635082
|
| . . |
80681
|
[1] |
LOCK NUT,5/16"
|
NH
WASHER, LOCK, 5/16" Superseded by part number: 83990583
|
| . . |
NLS
|
[2] |
NO LONGER SERVICED
|
BAS
NUT, 7/16-14 znd hex.
|
| 39. |
PO91
|
[1] |
SPRING
|
IH
pickup cover
|
| 40. |
670546R91
|
[1] |
ARM
|
IH
ASSY, pickup cover tension RH
|
| . . |
615191R1
|
[1] |
WASHER
|
IH
29/32 x 1-1/4 x 16 ga Superseded by part number: 86624165
|
| 41. |
670724R11
|
[2] |
SUPPORT
|
IH
END W/BUSHINGS, pickup cylinder
|
| 42. |
495279R93
|
[4] |
CARRIER
|
IH
BAR ASSY, pickup tooth Superseded by part number: 3100831R92
|
| . . |
Q366
|
[16] |
WASHER
|
IH
2-1/16 x 2-15/16 x 16 ga (or as required) Superseded by part number: 86625259
|
| . . |
432-1240
|
[4] |
COTTER PIN,3/16" x 2 1/2"
|
CAS
Pin, Split (Cotter), 3/16" x 2 1/2" Superseded by part number: 86523959
|
| 43. |
670536R2
|
[11] |
|
P
STRIPPER, pickup
|
| . . |
14993R1
|
[22] |
|
P
BOLT, 1/4 x 3/4 sq-nk crg
|
| . . |
109084
|
[22] |
NUT,1/4"-20, G5
|
IH
Superseded by part number: 7770
|
| . . |
103319
|
[22] |
LOCK WASHER,1/4"
|
IH
WASHER, LOCK, 1/4" Superseded by part number: 92-11025
|
| 44. |
27513K
|
[24] |
CUP WASHER
|
IH
WASHER, pickup cylinder spring tooth
|
| 45. |
MA74528
|
[24] |
SPRING
|
IH
pickup tooth
|
| 46. |
ST543
|
[4] |
BALL BEARING,15mm ID x 35mm OD x 11mm W
|
IH
BEARING ASSY, pickup cylinder tine control
|
| 47. |
670551R91
|
[1] |
SHAFT
|
IH
ASSY, pickup cylinder Superseded by part number: 670551R92
|
| . . |
Q114
|
[3] |
WASHER
|
IH
1-1/32 x 1-7/16 x 18 ga (or as required) Superseded by part number: 591715R1
|
| . . |
Q3481
|
[1] |
WASHER
|
IH
1-1/32 x 1-1/2 x 16 ga (or as required) Superseded by part number: 86624169
|
| . . |
103409
|
[1] |
PIN, SPLIT (COTTER),3/16" x 1 1/2"
|
IH
Superseded by part number: 20328R1
|
| . . |
576483R1
|
[3] |
LOCK PIN,5/16" x 1 1/2", Slotted
|
IH
Pin, 5/16" x 1 1/2", Slotted Superseded by part number: 86624089
|
| . . |
Q3480
|
[1] |
WASHER
|
IH
1-1/32 x 1-1/2 x 11 ga Superseded by part number: 95-81047
|
| 48. |
659437R1
|
[8] |
BUSHING
|
IH
pickup cylinder end
|
| . . |
17411R1
|
[6] |
BOLT,Hex, 5/16"-18 X 3/4", G2
|
IH
5/16 x 3/4 hex-hd mach Superseded by part number: 179816
|
| 49. |
155264C91
|
[1] |
BALL BEARING,25.43mm ID x 52.09mm OD x 16mm W
|
IH
ASSY, pickup cylinder drive side
|
| 50. |
673666R1
|
[2] |
CAP
|
IH
block tightener end, 5890N up
|
| 51. |
673799R1
|
[1] |
HOLDER
|
IH
BRACKET, front shield, 5890N up
|
| 52. |
673798R1
|
[1] |
|
P
CHANNEL, idler bracket, 5890N up
|
| 53. |
673800R1
|
[1] |
SPACER
|
IH
pipe, 5890N up
|
