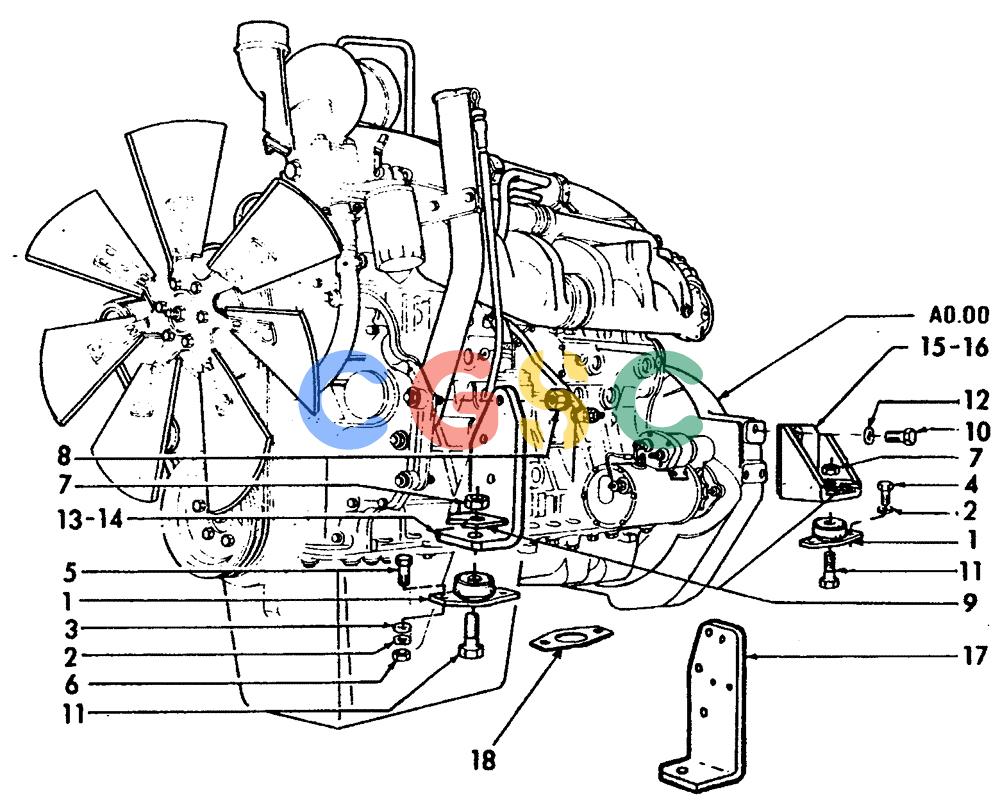

纽荷兰零件查询(FD20) - CRAWLER DOZER (A0.02[001]) - ENGINE MOUNTING New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
814 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 74955094 | [4] | PAD | NH Superseded by part number: 4955094 |
| 2. | 10517271 | [8] | LOCK WASHER,16.2mm ID x 27.7mm OD x 4mm Thk | BHBLOCKWASHER Superseded by part number: 10572173 |
| 3. | 10520201 | [4] | WASHER,16.4mm ID x 28mm OD x 3mm Thk | TTF Superseded by part number: 10520204 |
| 4. | 11118537 | [4] | SCREW | LEC Superseded by part number: 374835 |
| 5. | 11390537 | [4] | BOLT,Hex, M16 x 1.5 x 40, 10.9, Full Thd | LEC Superseded by part number: 11390534 |
| 6. | 12164127 | [4] | NUT,M16 x 1.5, Cl 10 | LEC Superseded by part number: 12164124 |
| 7. | 12164527 | [4] | NUT,M24 x 1.5, Cl 10 | LEC |
| 8. | 13598221 | [8] | NUT,M14 x 1.5 | BAS |
| 9. | 14199511 | [4] | COVER PLATE | LECLOCKPLATE |
| 10. | 14272037 | [6] | SCREW | LEC Superseded by part number: 14272031 |
| 11. | 15997337 | [4] | BOLT,Hex, M24 x 2 x 70mm, Cl 10.9, Full Thd | LECSCREW |
| 12. | 79005239 | [6] | WASHER,18.8mm ID x 41mm OD x 8mm Thk | LEC |
| 13. | 79014030 | [1] | SUPPORT | LECRIGHT |
| 14. | 79014031 | [1] | SUPPORT | LECLEFT |
| 15. | 79014033 | [2] | SUPPORT | LEC Superseded by part number: 79028398 |
| 16. | 79028398 | [2] | SUPPORT | LEC |
| 17. | 73132162 | [1] | BODY | CMISUPPORT, LEFT |
| 18. | 76005102 | [1] | SHIM,60mm ID x 100mm OD x 2mm Thk | LEC2.0 |
| 18. | 76005103 | [1] | SHIM | LEC4.0 |
