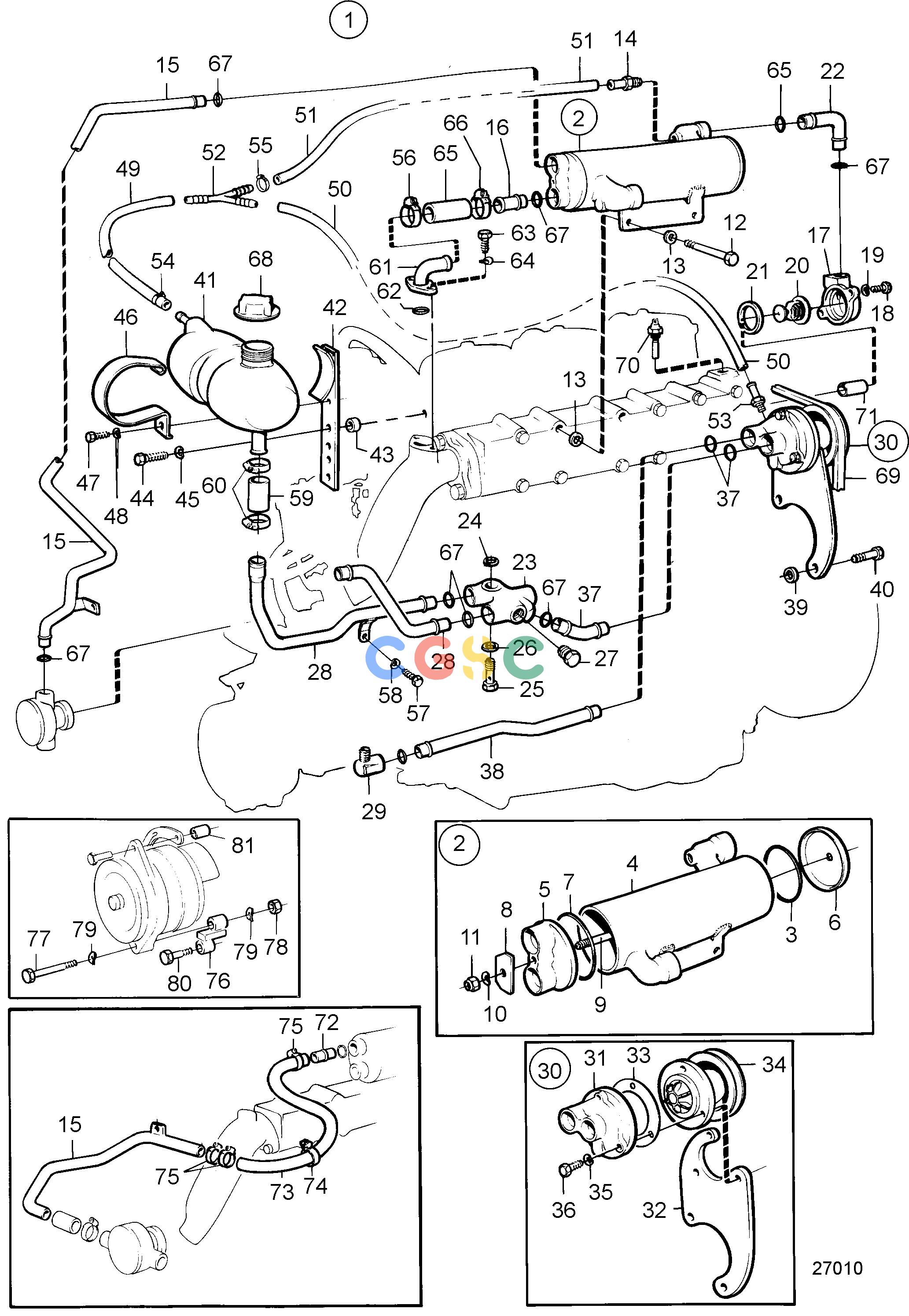

沃尔沃零件查询MD11; MD11C; MD11D; MD17; MD17C; MD17DMiscellaneous EquipmentFresh-water Cooling: 829960EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
115 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
829960
|
[1] |
Heater
|
Replaced by kit 840603 + drive belt 958325., MD17C
|
| 2. |
829911
|
[1] |
Heat exchanger
|
|
| 3. |
829972
|
[1] |
Gasket
|
|
| 4. |
|
|
|
|
| 5. |
829987
|
[1] |
End plate
|
|
| 6. |
829988
|
[1] |
End plate
|
|
| 7. |
829989
|
[1] |
Gasket
|
|
| 8. |
829990
|
[1] |
Bracket
|
|
| 9. |
829991
|
[1] |
Bar
|
|
| 10. |
941906
|
[3] |
Spring washer
|
|
| 11. |
963105
|
[3] |
Lock nut
|
|
| 12. |
100223
|
[2] |
Hexagon screw
|
|
| 13. |
960141
|
[4] |
Washer
|
|
| 14. |
829917
|
[1] |
Hose coupling
|
|
| 15. |
829941
|
[1] |
Coolant pipe
|
Pipe 829941 must be cut off 185mm, MO-17972.
|
| 16. |
829901
|
[1] |
Connecting pipe
|
|
| 17. |
829916
|
[1] |
Thermostat housing
|
|
| 18. |
940132
|
[2] |
Hexagon screw
|
|
| 19. |
941907
|
[2] |
Spring washer
|
|
| 20. |
838501
|
[1] |
Thermostat
|
76°C
|
| 21. |
416033
|
[1] |
Sealing ring
|
|
| 22. |
829932
|
[1] |
Coolant pipe
|
|
| 23. |
829906
|
[1] |
Coupling piece
|
|
| 24. |
829915
|
[1] |
Spacer ring
|
|
| 25. |
840269
|
[1] |
Hollow screw
|
(180211)
|
| 26. |
957178
|
[1] |
Gasket
|
|
| 27. |
927963
|
[1] |
Plug
|
|
| 28. |
829933
|
[1] |
Coolant pipe
|
|
| 29. |
829920
|
[1] |
Insert nipple
|
|
| 30. |
|
|
|
|
| 31. |
829847
|
[1] |
Pump housing
|
|
| 32. |
829899
|
[1] |
Bracket
|
|
| 33. |
829923
|
[1] |
Gasket
|
|
| 34. |
829953
|
[1] |
Circulation pump
|
|
| 35. |
941906
|
[3] |
Spring washer
|
|
| 36. |
955275
|
[3] |
Hexagon screw
|
|
| 37. |
829939
|
[1] |
Coolant pipe
|
|
| 38. |
829940
|
[1] |
Coolant pipe
|
|
| 39. |
829957
|
[2] |
Washer
|
|
| 40. |
955345
|
[2] |
Hexagon screw
|
L=55mm
|
| 41. |
1276040
|
[1] |
Expansion tank
|
|
| 42. |
840172
|
[1] |
Bracket
|
|
| 43. |
829653
|
[2] |
Spacer sleeve
|
|
| 44. |
940142
|
[2] |
Hexagon screw
|
L=30mm
|
| 45. |
941907
|
[2] |
Spring washer
|
|
| 46. |
840171
|
[1] |
Clamp
|
|
| 47. |
956092
|
[1] |
Cross recessed screw
|
L=12mm
|
| 48. |
941906
|
[1] |
Spring washer
|
|
| 49. |
942700
|
[1] |
Hose
|
L=700mm
|
| 50. |
942700
|
[1] |
Hose
|
L=295mm
|
| 51. |
942700
|
[1] |
Hose
|
L=40mm
|
| 52. |
840179
|
[1] |
Hose coupling
|
|
| 53. |
829917
|
[1] |
Hose coupling
|
|
| 54. |
945651
|
[1] |
Hose clamp
|
|
| 55. |
945650
|
[5] |
Hose clamp
|
|
| 56. |
829938
|
[1] |
Coolant pipe
|
|
| 57. |
955294
|
[1] |
Hexagon screw
|
L=16mm
|
| 58. |
941907
|
[1] |
Spring washer
|
|
| 59. |
943369
|
[1] |
Rubber hose
|
L=95mm
|
| 60. |
943473
|
[2] |
Hose clamp
|
|
| 61. |
829928
|
[1] |
Hose connection
|
|
| 62. |
418445
|
[1] |
Sealing ring
|
|
| 63. |
955269
|
[2] |
Hexagon screw
|
L=12mm
|
| 64. |
941900
|
[2] |
O-ring
|
|
| 65. |
952969
|
[1] |
Hose
|
L=190mm
|
| 66. |
943472
|
[2] |
Hose clamp
|
|
| 67. |
418411
|
[12] |
Sealing ring
|
|
| 68. |
844624
|
[1] |
Pressure cap
|
(1542591)
|
| 69. |
958325
|
[1] |
V-belt
|
L=1375mm
|
| 70. |
827151
|
[1] |
Temperature sensor
|
|
| 71. |
807120
|
[1] |
Tube
|
Must be pressed into the exhaust manifold.
|
| 72. |
829901
|
[1] |
Connecting pipe
|
MO-17972.
|
| 73. |
952969
|
[1] |
Hose
|
MO-17972., L=380mm
|
| 74. |
947827
|
[1] |
Clamp
|
MO-17972.
|
| 75. |
943472
|
[3] |
Hose clamp
|
MO-17972.
|
