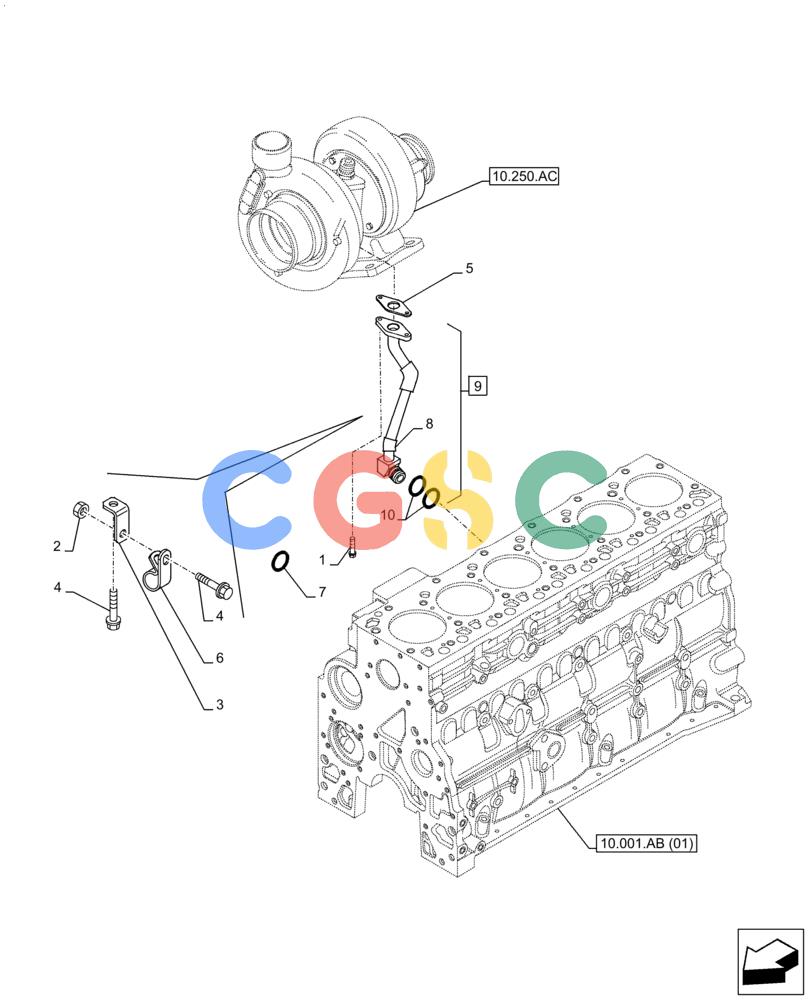

神钢零件查询(F4HFE613G B004) - ENGINE 5801862194 - 47587184 TIER4 B (9/15-) (10.250.AE) - TURBOCHARGER, OIL, RETURN, LINE Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
453 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4899079 | [2] | SCREW,Hex Flg, M8 x 1.25 x 25 | TOR |
| 2. | 2852389 | [1] | FLANGE NUT | TOR Superseded by part number: 17044725 |
| 3. | 2852390 | [1] | BRACKET | TOR Superseded by part number: 98459285 |
| 4. | 2852100 | [2] | FLANGE BOLT,Hex, M8 x 1.25 x 16mm | TOR Superseded by part number: 16586225 |
| 5. | 4891288 | [1] | GASKET,0.8mm Thk | TOR |
| 6. | 4896893 | [1] | CLAMP,20mm W | TOR |
| 7. | 4895089 | [1] | PLUG,0.886" L | TOR |
| 8. | NSS | [1] | NOT SOLD SEPARAT | CONPipe, Incl in 9 |
