神钢零件查询(F4HFE613G B004) - ENGINE 5801862194 - 47587184 TIER4 B (9/15-) (10.254.AM) - INTAKE MANIFOLD Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
763 次

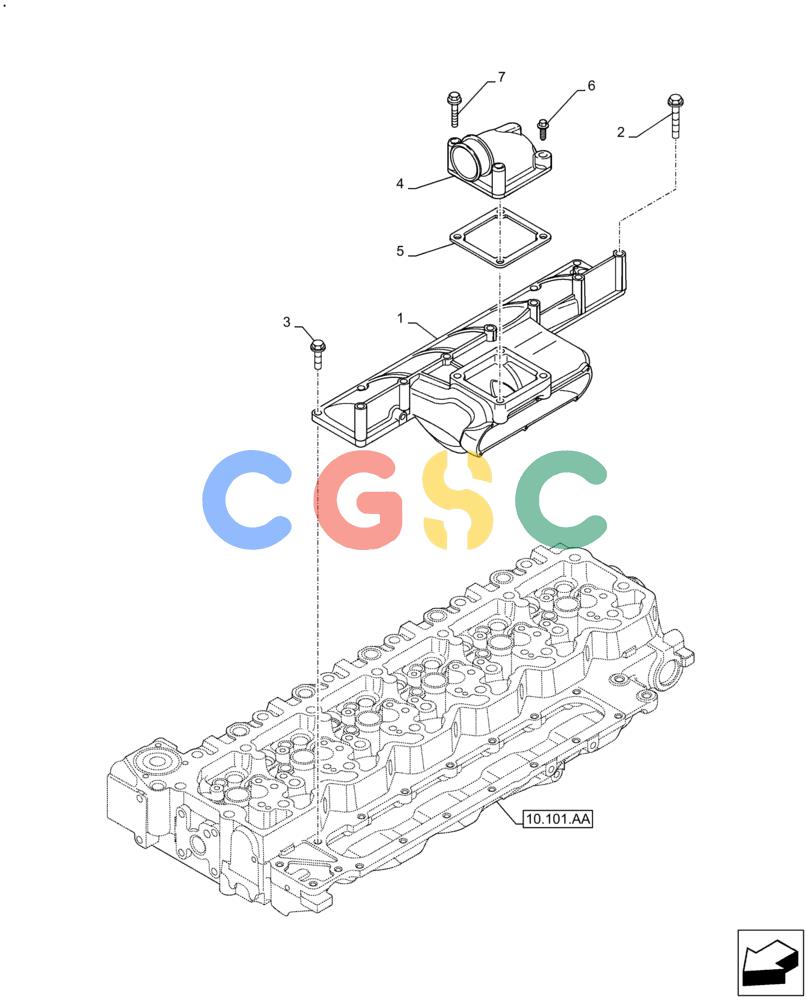

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2854534 | [1] | INLET MANIFOLD | TOR Superseded by part number: 504114393 |
| 2. | 4895432 | [3] | SCREW,M8 x 1.25 x 70mm | TOR |
| 3. | 4899039 | [7] | BOLT,Flng, M8 x 1.25 x 25mm, Cl 10.9 | TOR |
| 5. | 4899921 | [1] | GASKET,1.2mm Thk | TOR |
| 6. | 2852295 | [2] | SCREW,Hex, M8 x 1.25 x 40mm | TOR Superseded by part number: 16586725 |
| 7. | 2852267 | [2] | FLANGE BOLT,Hex, M8 x 1.25 x 90mm | TOR Superseded by part number: 16598224 |
