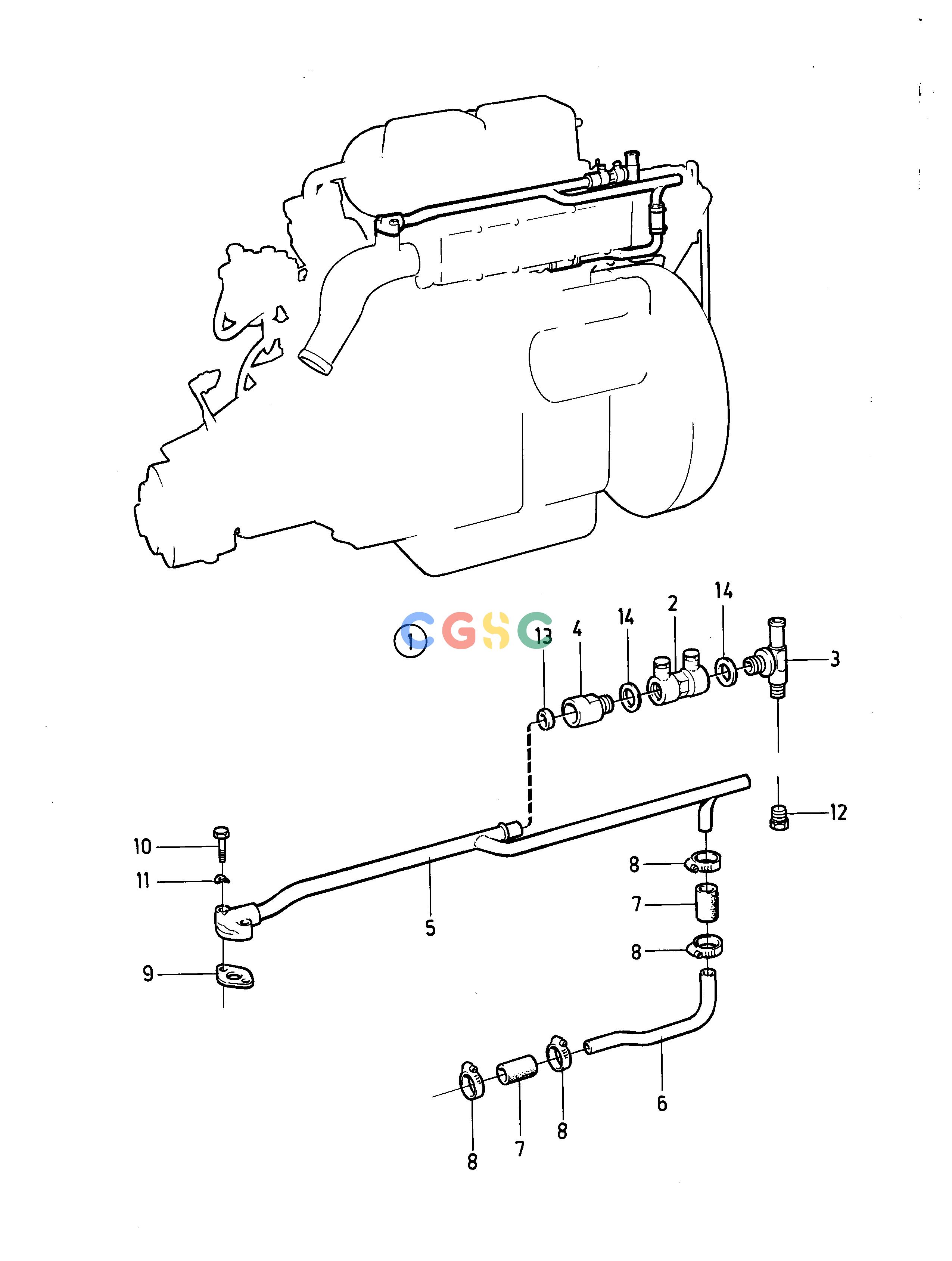

沃尔沃零件查询MD11; MD11C; MD11D; MD17; MD17C; MD17DMiscellaneous EquipmentHot Water Outlet: AEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
630 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
829793
|
[1] |
Set
|
MD11C
|
| 2. |
829797
|
[1] |
Valve
|
|
| 3. |
829798
|
[1] |
T-pipe
|
|
| 4. |
829811
|
[1] |
Insert nipple
|
|
| 5. |
829809
|
[1] |
Tube
|
|
| 6. |
829807
|
[1] |
Tube
|
|
| 7. |
|
|
|
L=2X55mm
|
| 8. |
943472
|
[4] |
Hose clamp
|
|
| 9. |
800326
|
[1] |
Gasket
|
|
| 10. |
955275
|
[2] |
Hexagon screw
|
|
| 11. |
941906
|
[2] |
Spring washer
|
|
| 12. |
927963
|
[1] |
Plug
|
|
| 13. |
418411
|
[1] |
Sealing ring
|
|
| 14. |
957184
|
[2] |
Gasket
|
|
