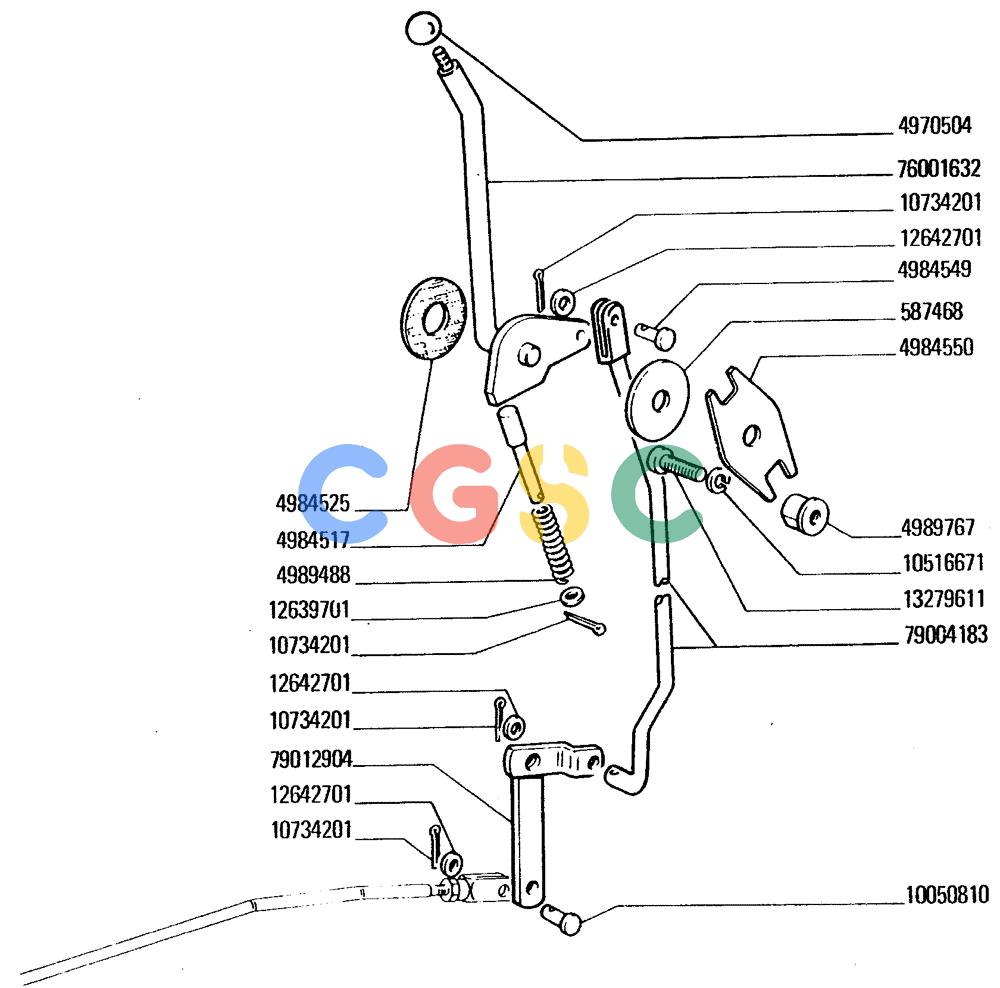

纽荷兰零件查询(FD20) - CRAWLER DOZER (A2.21[002]) - ACCELERATOR CONTROL LINKAGE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
237 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 587468. | 587468 | [1] | DISC | LECPLATE |
| 4970504. | 4970504 | [1] | HANDLE GRIP | LECKNOB |
| 4984517. | 4984517 | [1] | PIN | LEC |
| 4984525. | 4984525 | [1] | DISC,20.5mm ID x 45mm OD x 3mm Thk | LECPLATE |
| 4984549. | 4984549 | [1] | PIN | LEC |
| 4984550. | 4984550 | [1] | SPRING | LEC |
| 4989488. | 4989488 | [1] | SPRING | LEC |
| 4989767. | 4989767 | [2] | NUT | LEC |
| 10050810. | 10050810 | [1] | PIN | MKT Superseded by part number: 10050811 |
| 10516671. | 10516671 | [2] | LOCK WASHER | BHBLOCKWASHER Superseded by part number: 83990583 |
| 10734201. | 10734201 | [4] | COTTER PIN,M2 x 12 | TTFPIN, SPLIT (COTTER), M2 x 12 Superseded by part number: |
| 12639701. | 12639701 | [1] | WASHER,6.15mm ID x 11mm OD x 1mm Thk | BHB Superseded by part number: 17094724 |
| 12642701. | 12642701 | [3] | WASHER,8.15mm ID x 12mm OD x 1mm Thk | TTF |
| 13279611. | 13279611 | [2] | SCREW,Pozidriv Pan Hd, M8 x 25mm | LEC Superseded by part number: 86585704 |
| 76001632. | 76001632 | [1] | LEVER | LEC Superseded by part number: 75242608 |
| 79004183. | 79004183 | [1] | TIE-ROD | LECTIEROD |
| 79012904. | 79012904 | [1] | LEVER | LEC |
