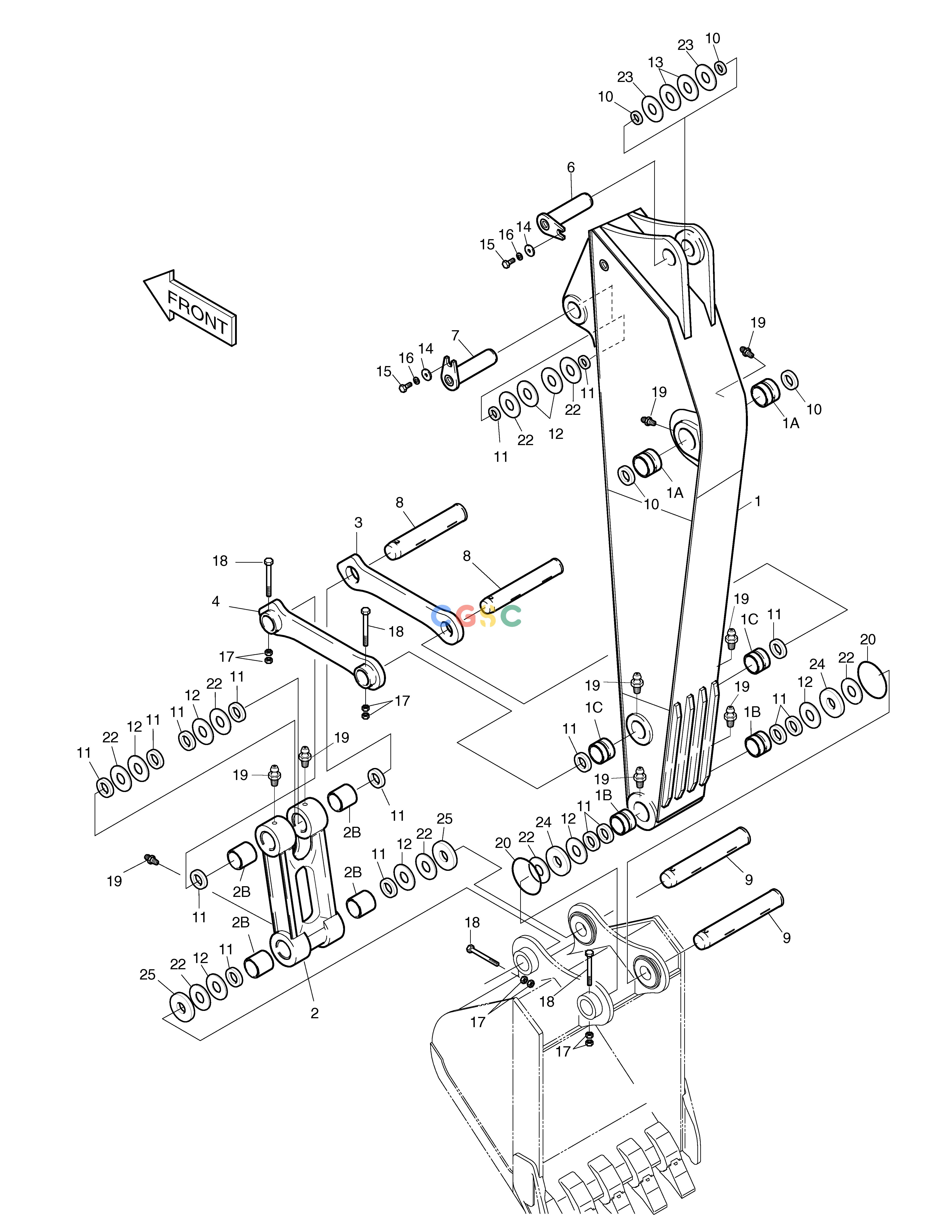

斗山零件查询ARM-1.96m-ARTI.BOOM SOLAR 130W-V(2) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
686 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
701-00108
|
[-] |
ARM ASS'Y-1.96m
|
|
| 1. |
701-00113A
|
[1] |
ARM SUB ASS'Y-1.96m
|
|
| 10. |
2180-1106BD4
|
[4] |
SEAL;DUST
|
|
| 11. |
2180-1106BD3
|
[14] |
SEAL;DUST
|
|
| 12. |
2114-1058D12
|
[8] |
SHIM
|
|
| 13. |
2114-1059D127
|
[2] |
SHIM
|
|
| 14. |
2116-1060D6
|
[2] |
STOPPER
|
|
| 15. |
S0521361
|
[2] |
BOLT M16X2.0X35
|
|
| 16. |
S5102901
|
[2] |
. WASHER;SPRING
|
|
| 17. |
S4012933
|
[8] |
NUT
|
|
| 18. |
S0566761
|
[4] |
BOLT M16X2.0X125
|
|
| 19. |
S6710041
|
[9] |
NIPPLE,GREASE
|
|
| 1A. |
110-00060
|
[2] |
BUSHING
|
|
| 1B. |
110-00102
|
[2] |
BUSHING
|
|
| 1C. |
110-00101
|
[2] |
BUSHING
|
|
| 2. |
2155-1339E
|
[1] |
LINK;PUSH ASS'Y
|
|
| 20. |
180-00077D3
|
[2] |
O-RING
|
|
| 22. |
2114-1059D89
|
[8] |
SHIM
|
|
| 23. |
2114-1059D129
|
[2] |
SHIM
|
|
| 24. |
2114-1994A
|
[2] |
SPACER
|
|
| 25. |
2114-1995A
|
[2] |
SPACER
|
|
| 2B. |
2110-1366A
|
[4] |
BUSHING
|
|
| 3. |
2155-1306B
|
[1] |
LINK;GUIDE(R)
|
|
| 4. |
2155-1307B
|
[1] |
LINK;GUIDE(L)
|
|
| 6. |
2123-2209C
|
[1] |
PIN
|
|
| 7. |
2123-2225C
|
[1] |
PIN
|
|
| 8. |
2123-2211C
|
[2] |
PIN
|
|
| 9. |
2123-2212C
|
[2] |
PIN
|
|
