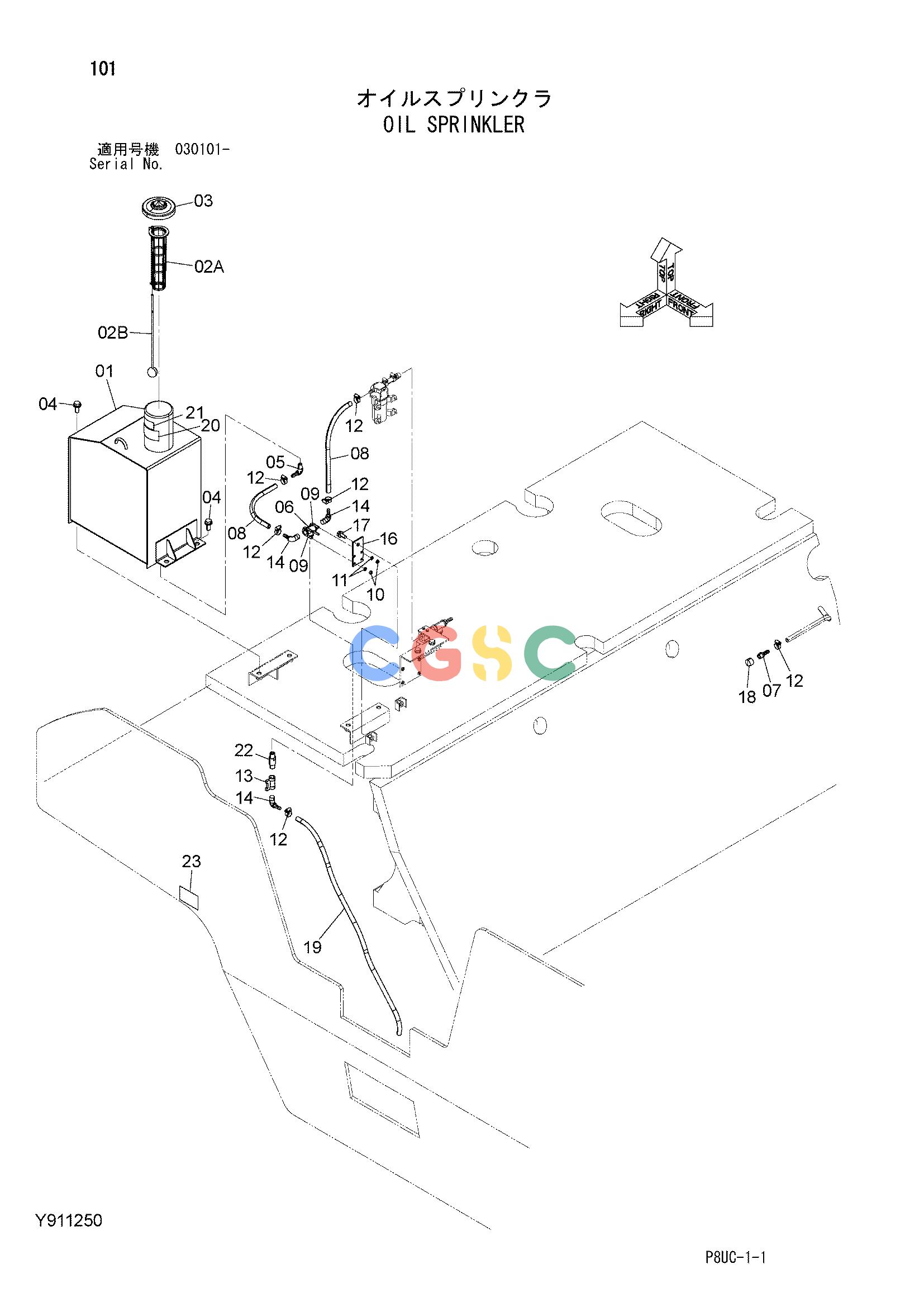

日立零件查询（CP220-3）OIL SPRINKLER Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
563 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | Y700759 | [1] | TANK | |
| 02. | 4353560 | [1] | STRAINER | |
| 02A. | 4372619 | [1] | STRAINER | |
| 02B. | 4372620 | [1] | FLOAT | |
| 03. | 4168610 | [1] | CAP | |
| 03A. | 4168820 | [1] | PACKING;RUBBER | |
| 04. | J271230 | [4] | BOLT;SEMS | |
| 04A. | J901230 | [1] | BOLT | |
| 04B. | J222012 | [1] | WASHER | |
| 05. | Y407729 | [1] | HOSE;FITTING | |
| 06. | J70483 | [1] | TEE | |
| 07. | Y402305 | [1] | FITTING;HOSE | |
| 08. | Y407730 | [2] | HOSE;VINYL | |
| 09. | Y401840 | [2] | BOLT;U | |
| 10. | M500605 | [4] | NUT | |
| 11. | A590906 | [4] | WASHER;SPRING | |
| 12. | 4514700 | [6] | CLIP;HOSE | |
| 13. | Y405723 | [1] | VALVE;BALL | |
| 14. | Y402069 | [3] | FITTING;HOSE | |
| 15. | J70783 | [1] | ADAPTER | |
| 16. | Y417164 | [1] | PLATE | |
| 17. | J271025 | [1] | BOLT;SEMS | |
| 17A. | J901025 | [1] | BOLT | |
| 17B. | J222010 | [1] | WASHER | |
| 18. | Y402032 | [1] | CAP | |
| 19. | Y410936 | [1] | HOSE;VINYL | |
| 20. | Y409412 | [1] | DECAL | (LIQUID SPRAY TANK LEVEL ) |
| 21. | Y409413 | [1] | DECAL | (LIQUID COMPENSATING PORT ) |
| 22. | 4205975 | [1] | ADAPTER | |
| 23. | Y417823 | [1] | DECAL | (CHANGE LEVER OPERATION) |
