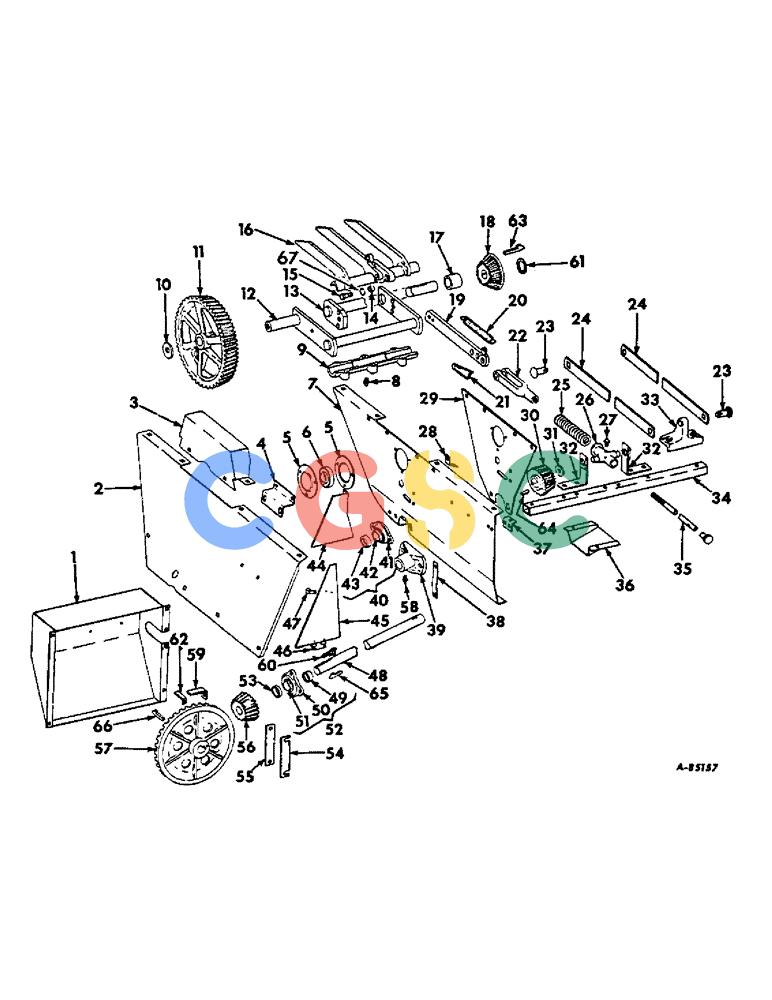

| 1. |
667770R91
|
[1] |
|
P
COVER, packer drive cpt.
|
| . . |
14994R1
|
[6] |
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2
|
IH
BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2 Superseded by part number: 434-512
|
| . . |
9635082
|
[6] |
NUT,5/16" - 18, Gr 5
|
NH
5/16
|
| . . |
103320
|
[6] |
LOCK WASHER,5/16"
|
IH
WASHER, LOCK, 5/16" Superseded by part number: 322358, 83990583
|
| 2. |
667730R1
|
[1] |
|
P
SHIELD, packer crank
|
| . . |
14995R1
|
[5] |
BOLT
|
IH
cge. 3/8 x 3/4 Superseded by part number: 19284R1
|
| . . |
102635
|
[5] |
NUT,3/8"-16, G5
|
IH
Superseded by part number: 280136
|
| . . |
103321
|
[5] |
LOCK WASHER,3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| . . |
17411R1
|
[2] |
BOLT,Hex, 5/16"-18 X 3/4", G2
|
IH
5/16 x 3/4 hex-hd mach Superseded by part number: 179816
|
| . . |
Q398
|
[2] |
WASHER
|
IH
11/32 x 7/8 x 16 ga Superseded by part number: 95-61034
|
| 3. |
667721R1
|
[1] |
|
P
SHIELD, upper packer gear
|
| 4. |
667804R1
|
[1] |
|
P
SUPPORT, plunger shield, regular for 47 Baler, special for 37 Baler
|
| 5. |
667861R1
|
[2] |
BEARING CAP,2.8346" ID x 4.8125" OD x 0.375"
|
IH
bearing retainer
|
| . . |
86508749
|
[3] |
CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5
|
GI
BOLT, cge. 3/8 x 1-1/4
|
| 6. |
571588R91
|
[1] |
BALL BEARING
|
IH
BEARING, packer crank front Superseded by part number: 47066
|
| 7. |
667699R1
|
[1] |
|
P
SUPPORT, packer bearing front
|
| . . |
80280503
|
[1] |
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd
|
BEL
BOLT, cge. 3/8 x 1
|
| 8. |
109461
|
[1] |
LUBE NIPPLE,1/8"-27 x .66 lg
|
IH
NIPPLE, LUBE, 1/8"-27 x .66 lg Superseded by part number: 80710
|
| 9. |
662012R1
|
[1] |
CAP
|
IH
packer finger bearing Superseded by part number: 674129R21
|
| . . |
17496R1
|
[6] |
BOLT,Hex, 3/8" - 16 x 1 3/4"
|
IH
mach. 3/8 x 1-3/4
|
| 10. |
667698R1
|
[1] |
WASHER
|
IH
packer crank bearing front
|
| . . |
9409973
|
[1] |
|
P
BOLT, hex lock type AA 7/16 x 1
|
| 11. |
667768R1
|
[1] |
GEAR
|
IH
packer drive upper
|
| . . |
17576R1
|
[1] |
BOLT,Hex, 1/2"-13 x 2 1/2", G2
|
IH
mach. 1/2 x 2-1/2 Superseded by part number: 87972
|
| . . |
102637
|
[1] |
NUT,1/2"-13, G5
|
IH
Superseded by part number: 280431
|
| . . |
103323
|
[1] |
LOCK WASHER,1/2"
|
IH
WASHER, LOCK, 1/2" Superseded by part number: 87326976
|
| . . |
Q5035
|
[1] |
WASHER
|
IH
17/32 x 1 x 16 ga. (or as req.) Superseded by part number: 495-81254
|
| 12. |
667694R91
|
[1] |
CRANKSHAFT
|
IH
packer cpt.
|
| . . |
551769R1
|
[4] |
WASHER
|
IH
1-13/32 x 2 x 16 ga Superseded by part number: 495-81213
|
| . . |
Q275
|
[1] |
WASHER
|
IH
1-13/32 x 2 x 20 ga Superseded by part number: 495-81213
|
| 13. |
667726R91
|
[1] |
CRANKSHAFT
|
IH
packer rear cpt.
|
| . . |
179845
|
[1] |
BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5
|
IH
SCREW, cap, 3/8 x 1-3/4 Superseded by part number: 113-233
|
| . . |
103411
|
[1] |
|
NNA
SPLIT (COTTER), 3/16" x 2" Superseded by part number: 432-1232, 432-1232, NLS
|
| 14. |
662555R1
|
[1] |
BUSHING,8.46mm ID x 15.98mm OD x 12.83mm L
|
IH
shear bolt
|
| . . |
425-115
|
[1] |
NUT,5/16"-24, G5
|
CAS
5/16NF Superseded by part number: 86629539
|
| 15. |
181347
|
[1] |
BOLT,Hex, 5/16" - 24 x 2", Gr 5
|
IH
shear, 5/16 NF x 2 type 2 cap screw Superseded by part number: 60451
|
| 16. |
667744R11
|
[1] |
|
P
FINGER W/CAP, packer
|
| 17. |
667729R2
|
[1] |
SLEEVE
|
IH
packer crank
|
| 18. |
495163R3
|
[1] |
GEAR
|
IH
intermediate miter
|
| 19. |
667747R1
|
[1] |
|
P
ARM, packer finger
|
| . . |
663108R1
|
[1] |
HEADED PIN,7/16" x 2 1/2"
|
IH
PIN, std. hd. 7/16 x 2-1/2
|
| . . |
432-1216
|
[1] |
COTTER PIN,3/16" x 1"
|
CAS
Pin, Split (Cotter), 3/16" x 1"
|
| 20. |
662632R1
|
[1] |
SPRING
|
IH
packer Superseded by part number: 1970961C1
|
| 21. |
664840R1
|
[1] |
RING
|
IH
PIN, packer finger clip, for 47 Baler, see Note A
|
| 22. |
662032R2
|
[1] |
CONNECTOR, ELEC
|
IH
CONNECTOR, packer finger relief, for 47 Baler, see Note A
|
| . . |
663047R2
|
[1] |
PIN
|
IH
rod end 3/4 x 2-5/32
|
| 23. |
667754R1
|
[1] |
|
P
PIN, packer control link, 2 for 37 Baler
|
| . . |
432-1624
|
[2] |
COTTER PIN,1/4" x 1 1/2"
|
CAS
Pin, Split (Cotter), 1/4" x 1 1/2" Superseded by part number: 80753
|
| 24. |
667753R1
|
[1] |
|
P
LINK, packer control, 2 for 37 Baler
|
| 25. |
663902R1
|
[1] |
VALVE SPRING
|
IH
SPRING, packer relief, for 47 Baler, see Note A
|
| 26. |
495195R1
|
[1] |
|
P
TRUNNION, packer finger, for 47 Baler, see Note A
|
| 27. |
87414
|
[1] |
LUBE NIPPLE,1/4" - 28
|
NH
FITTING, 1/4 self tapping straight lubrication, for 47 Baler, see Note A
|
| 28. |
667724R1
|
[1] |
ANCHOR
|
IH
packer bearing support
|
| . . |
17426R1
|
[1] |
BOLT,Hex, 3/8" - 16 x 1", Gr 2
|
IH
mach. 3/8 x 3/4 Superseded by part number: 24840R1
|
| 29. |
667725R1
|
[1] |
PLATE
|
IH
packer bearing front support
|
| 30. |
667766R1
|
[1] |
GEAR
|
IH
PINION, packer drive upper
|
| 32. |
667752R1
|
[1] |
|
P
ANCHOR, packer relief, 2 for 47 Baler, see Note A
|
| . . |
15071R1
|
[4] |
BOLT,Short NK, 3/8"-16 x 2", G2
|
IH
cge. 3/8 x 2 Superseded by part number: 598812R1
|
| 33. |
668049R1
|
[1] |
|
P
ANCHOR, packer linkg, for 37 Baler
|
| . . |
17548R1
|
[2] |
BOLT, 3/8 x 2-1/4 mach
|
|
| 34. |
667751R1
|
[1] |
|
P
TUBE, packer relief anchor support
|
| . . |
15089R1
|
[1] |
BOLT
|
IH
cge. 3/8 x 2-1/4 Superseded by part number: 27451R1
|
| 35. |
664678R1
|
[1] |
|
P
ROD, packer relief guide, for 47 Baler, see Note A
|
| . . |
Q5099
|
[1] |
WASHER
|
IH
25/32 x 1-3/4 x 11 ga
|
| . . |
425-1012
|
[1] |
NUT,3/4"-10, G5
|
CAS
3/4 Superseded by part number: 280954
|
| 36. |
667741R1
|
[1] |
SHIELD
|
IH
packer pinion hay
|
| 37. |
668047R1
|
[1] |
|
P
BRACE, packer relief tube
|
| 38. |
667763R1
|
[1] |
STRAP
|
IH
packer bearing adjusting
|
| 39. |
667764R1
|
[1] |
|
P
BEARING, packer drive upper, for 37 Baler
|
| . . |
15039R1
|
[2] |
BOLT
|
IH
cge. 3/8 x 1-1/2 Superseded by part number: 18685R1
|
| 40. |
667863R91
|
[1] |
BEARING ASSY,4.9375" OD x 0.875"
|
IH
packer drive upper, for 47 Baler
|
| . . |
15054R1
|
[2] |
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 3/4", Gr 2
|
IH
BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 3/4", G2 Superseded by part number: 111-381
|
| 43. |
517645R11
|
[1] |
COLLAR
|
IH
W/SET SCREW, bearing locking, for 47 Baler Superseded by part number: 47577188
|
| 44. |
667737R1
|
[1] |
SHEET
|
IH
tool box end, for 47 Baler
|
| . . |
171102
|
[2] |
SCREW,Self-Tap, Hex, 5/16" - 18 x 5/8"
|
IH
5/16-18 x 5/8 cd-pltd hex-hd tapping Superseded by part number: 172451
|
| . . |
619855R1
|
[2] |
WASHER
|
IH
11/32 x 3/4 x 16 ga cd-pltd Superseded by part number: 86637953
|
| 45. |
667733R91
|
[1] |
|
P
DOOR, tool box, for 47 Baler
|
| 46. |
667736R1
|
[1] |
HINGE
|
IH
tool box door, for 47 Baler
|
| . . |
112419
|
[4] |
RIVET, .140 x 17/64 tinner
|
|
| . . |
166684
|
[2] |
COVER PLATE
|
PA
SCREW, 10-32 x 3/8 cd-pltd cr-rec-rd hd tap
|
| 47. |
667735R1
|
[1] |
|
P
LATCH, tool box door, for 47 Baler
|
| 48. |
667762R1
|
[1] |
SHAFT
|
IH
packer drive
|
| 52. |
668369R91
|
[1] |
FLANGED BEARING
|
IH
packer drive lower cpt. Superseded by part number: 546661R91
|
| 53. |
668325R1
|
[1] |
SPACER
|
IH
lower packer pinion
|
| 54. |
667761R1
|
[3] |
SHIM
|
IH
packer gear wear (or as req.)
|
| 55. |
667760R1
|
[1] |
STRIP
|
IH
WEAR STRIP, packer gear
|
| 56. |
667769R1
|
[1] |
GEAR
|
IH
PINION, packer drive lower
|
| 57. |
667759R4
|
[1] |
GEAR
|
IH
packer drive lower Superseded by part number: 667759R5
|
| 58. |
87569
|
[1] |
LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive
|
PA
FITTING, 1/4-28 45 deg angle self-tap. lubrication
|
| 59. |
668766R1
|
[1] |
RETAINER
|
IH
packer drive shaft lower key
|
| 60. |
656955R1
|
[1] |
STUD
|
IH
lower packer bearing dowel
|
| . . |
115551
|
[1] |
LOCK WASHER,Int Tooth, 1/2"
|
IH
WASHER, LOCK, Int Tooth, 1/2" Superseded by part number: 20355
|
| 61. |
667438R1
|
[1] |
SHIM
|
IH
miter gear (or as required)
|
| 62. |
671631R1
|
[1] |
RETAINER
|
IH
packer gear key
|
| . . |
426816
|
[1] |
SCREW,Hex Soc Hd, 1/4"-20 x 3/4"
|
IH
1/4-20 x 3/4 hex-soc-hd cap Superseded by part number: 61-32512
|
| . . |
103319
|
[1] |
LOCK WASHER,1/4"
|
IH
WASHER, LOCK, 1/4" Superseded by part number: 92-11025
|
| . . |
297059R1
|
[2] |
|
P
WASHER, 1-25/32 x 2-1/4 x 22 ga (or as req.)
|
| . . |
Q3489
|
[3] |
WASHER
|
IH
1-25/32 x 2-1/2 x 16 ga (or as required) Superseded by part number: 20705R1
|
| 63. |
Q81
|
[1] |
KEY,Gib, 3/8" Sq x 1 3/4"
|
IH
gib, 3/8 x 1-3/4
|
| 64. |
452563
|
[1] |
KEY
|
IH
Woodruff 128, 5/16 x 2-1/8 Superseded by part number: 57388D
|
| 65. |
Q1497
|
[1] |
KEY,Gib, 3/8" Sq x 2"
|
IH
taper gib 3/8 x 2
|
| 66. |
669016R1
|
[1] |
KEY
|
IH
taper gib 3/8 x 2-3/4
|
| 67. |
673878R1
|
[1] |
|
P
RETAINER, packer finger shear bolt
|
