沃尔沃零件查询MD11; MD11C; MD11D; MD17; MD17C; MD17DTransmissionsConnecting Components Reverse GearEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
935 次

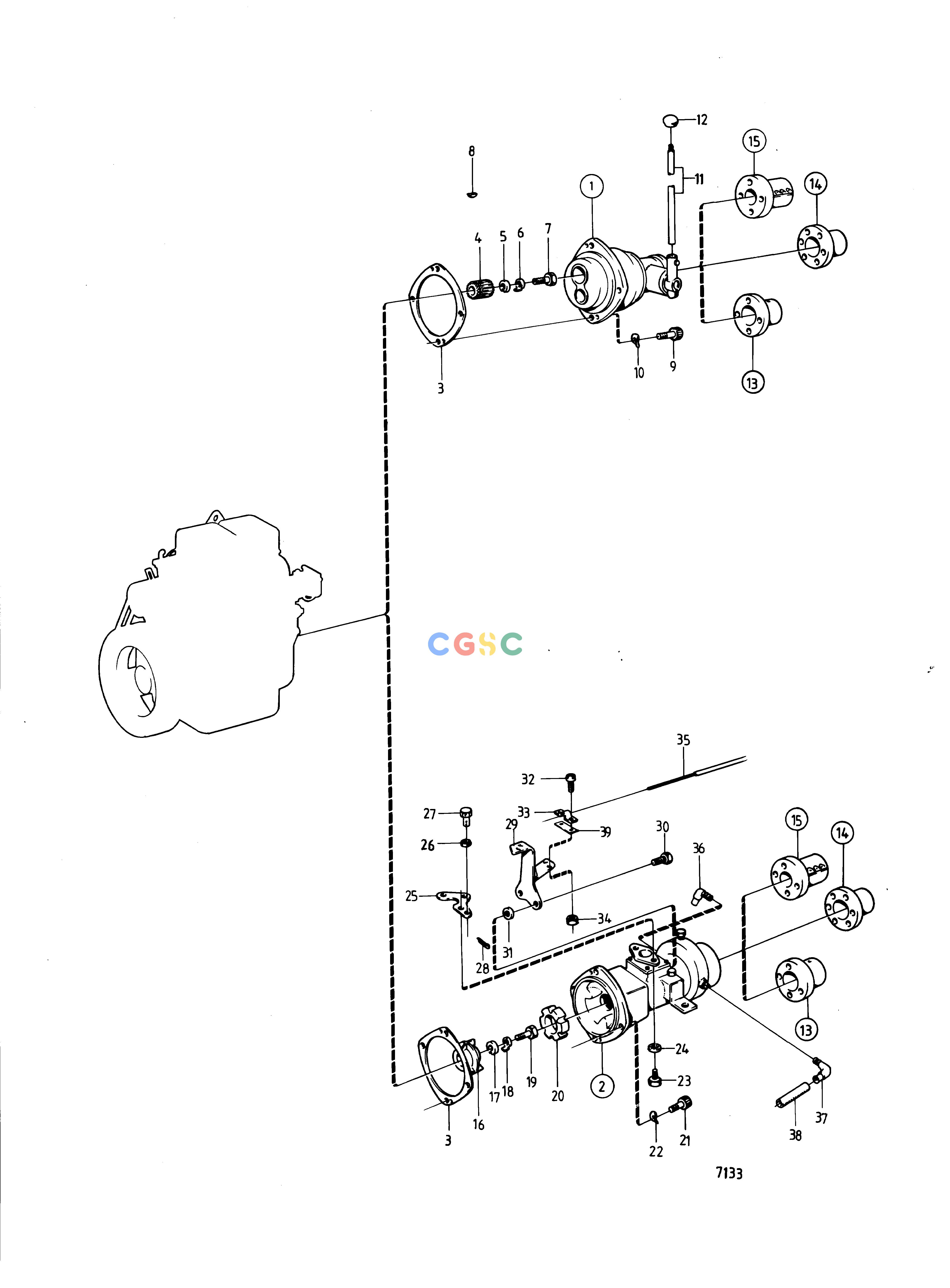

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
807370
|
[1] |
Reversing gear
|
MD2B spec 867007,-008,-143,-144. MD11C/HD-RB., Ratio 1,87:1
|
| 1. |
|
|
|
See group 4B
|
| 2. |
833860
|
[1] |
Reversing gear
|
MD11D/USA spec867696
|
| 2. |
|
|
|
See group 4B
|
| 3. |
803227
|
[1] |
Gasket
|
MD11D/USA spec867696
|
| 4. |
802588
|
[1] |
Gear
|
MD2B spec 867007,-008,-143,-144. MD11C/HD-RB., Spec 867012, 867145., See group 2A
|
| 5. |
803225
|
[1] |
Washer
|
|
| 6. |
803226
|
[1] |
Lock washer
|
|
| 7. |
807041
|
[1] |
Lock screw
|
MD2B spec 867007,-008,-143,-144. MD11C/HD-RB., Spec 867012, 867145., See group 2A
|
| 8. |
910121
|
[1] |
Woodruff key
|
See group 2A
|
| 9. |
955319
|
[4] |
Hexagon screw
|
|
| 10. |
942336
|
[4] |
Spring washer
|
|
| 11. |
802743
|
[1] |
Control lever
|
|
| 12. |
60544
|
[1] |
Handle
|
|
| 13. |
806384
|
[1] |
Clutch flange
|
25mm hole for propeller shaft., Alt
|
| 14. |
833748
|
[1] |
Clutch half
|
30mm hole for propeller shaft., Alt
|
| 15. |
827924
|
[1] |
Clamp coupling
|
25mm hole for propeller shaft., Alt
|
| 15. |
827927
|
[1] |
Clamp coupling
|
30mm hole for propeller shaft., Alt
|
| 15. |
827958
|
[1] |
Instrument panel
|
1'' hole for propeller shaft., Alt
|
| 16. |
833746
|
[1] |
Companion flange
|
Spec 867208, 867420., See group 2A
|
| 17. |
833785
|
[1] |
Spacer washer
|
|
| 18. |
833849
|
[1] |
Lock washer
|
|
| 19. |
959664
|
[1] |
Hexagon screw
|
Spec 867208, 867420., See group 2A
|
| 20. |
827615
|
[1] |
Rubber coupling
|
MD11D/USA spec867696
|
| 21. |
959239
|
[4] |
Hex. socket screw
|
MD11D/USA spec867696
|
| 22. |
942336
|
[4] |
Spring washer
|
MD11D/USA spec867696
|
| 23. |
955268
|
[2] |
Hexagon screw
|
MD11D/USA spec867696
|
| 24. |
941906
|
[2] |
Spring washer
|
MD11D/USA spec867696
|
| 25. |
834021
|
[1] |
Lever
|
MD11D/USA spec867696
|
| 26. |
955892
|
[2] |
Washer
|
MD11D/USA spec867696
|
| 27. |
833462
|
[1] |
Cube
|
MD11D/USA spec867696
|
| 28. |
907834
|
[1] |
Split pin
|
MD11D/USA spec867696
|
| 29. |
833970
|
[1] |
Bracket
|
MD11D/USA spec867696
|
| 30. |
940142
|
[2] |
Hexagon screw
|
MD11D/USA spec867696
|
| 31. |
961169
|
[2] |
Washer
|
MD11D/USA spec867696
|
| 32. |
956078
|
[4] |
Cross recessed screw
|
|
| 33. |
21471054
|
[2] |
Bracket
|
MD11D/USA spec867696
|
| 34. |
963104
|
[4] |
Lock nut
|
|
| 34. |
946577
|
[4] |
Lock nut
|
MD11D/USA spec867696
|
| 35. |
|
|
|
See group 9
|
| 36. |
961607
|
[2] |
Hose nipple
|
MD11D/USA spec867696
|
| 37. |
804429
|
[1] |
Hose attachment
|
|
| 37. |
955246
|
[4] |
Hexagon screw
|
MD11D/USA spec867696
|
| 38. |
952969
|
[1] |
Hose
|
L=145mm
|
| 38. |
|
|
|
MD11D/USA spec867696
|
| 39. |
819068
|
[2] |
Washer
|
MD11D/USA spec867696
|
