纽荷兰零件查询(FD20) - CRAWLER DOZER (A2.33/B[001]) - ADVANCE VARIATOR New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
969 次

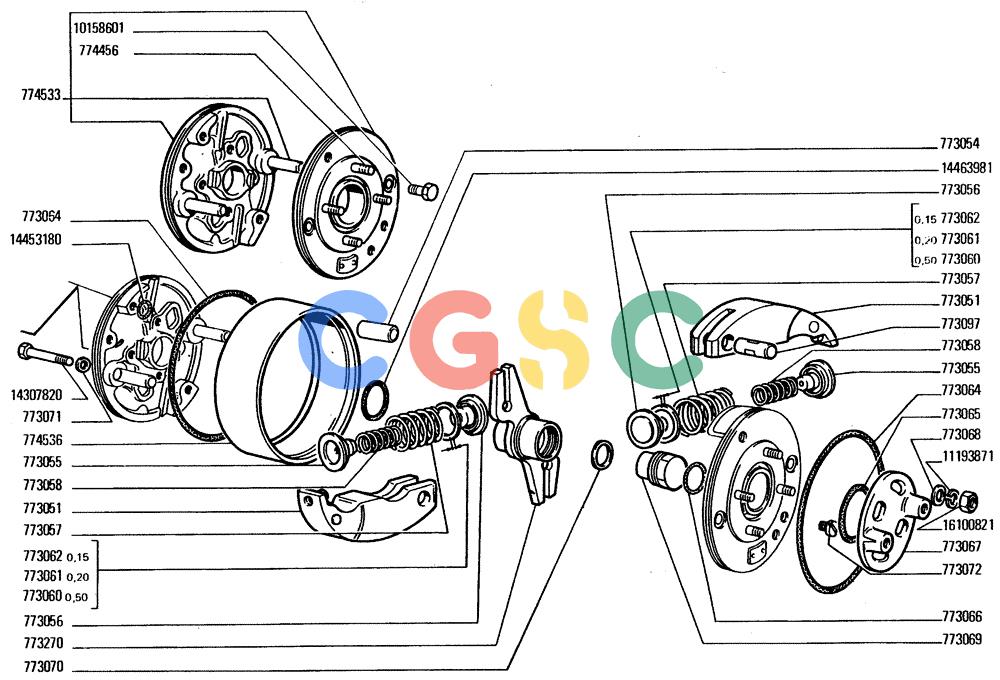

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 773051. | NLS | [2] | NO LONGER SERVICED | BASWEIGHT |
| 773054. | 773054 | [2] | BUSHING | BRE |
| 773055. | 80773055 | [2] | SPROCKET | SMALL DISK |
| 773056. | 773056 | [2] | PLATE | BRESMALL DISK Superseded by part number: 775412 |
| 773057. | 773057 | [2] | SPRING | BRE |
| 773058. | 773058 | [2] | SPRING | BRE |
| 773060. | 773060 | [1] | WASHER | MOD |
| 773061. | 773061 | [1] | WASHER | BRE |
| 773062. | 773062 | [1] | WASHER | BRE |
| 773064. | 773064 | [2] | O-RING | BRE Superseded by part number: 775412 |
| 773065. | 773065 | [1] | O-RING | BRE Superseded by part number: 775412 |
| 773066. | 773066 | [1] | O-RING | BRE Superseded by part number: 775412 |
| 773067. | 773067 | [1] | SLEEVE | BRE |
| 773068. | 773068 | [4] | WASHER | BRE |
| 773069. | 51219668 | [1] | RING | NHNUT |
| 773070. | 773070 | [1] | WASHER | BRE |
| 773071. | 773071 | [2] | WASHER | BRE |
| 773072. | 773072 | [1] | SCREW | BRE |
| 773097. | BRE773097 | [2] | PIN | BRESLIDING BLOK |
| 773270. | 773270 | [1] | LINK BLOCK | BRELEVER |
| 774456. | 774456 | [4] | STUD | BRE |
| 774533. | 774533 | [1] | BODY | BRE |
| 774536. | 774536 | [1] | RING | BRE |
| 10158601. | 10158601 | [4] | PLUG | MKT |
| 11193871. | 11193871 | [4] | BELLEVILLE WASHER,Belleville, M8.4 | TTFWASHER Superseded by part number: 11193874 |
| 14307820. | 14307820 | [2] | SCREW | MKT Superseded by part number: 14307831 |
| 14453180. | 14453182 | [2] | O-RING,0.07" Thk x 0.489" ID, -14, Cl 9, 70 Duro | BAS |
| 14463981. | 14463981 | [1] | O-RING,-221, Cl 7, 1.421" ID x .139" Thk | MKT |
| 16100821. | 16100821 | [4] | NUT,M8, Cl 10 | LEC Superseded by part number: 43362 |
