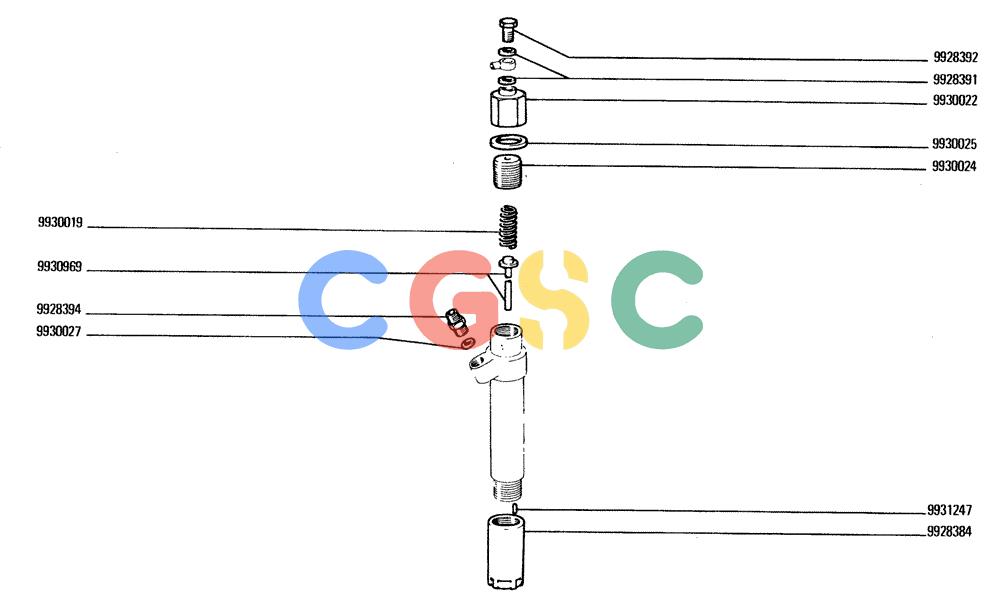

纽荷兰零件查询(FD20) - CRAWLER DOZER (A2.35/3[001]) - NOZZLE HOLDER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
989 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 9928384. | 9928384 | [1] | NUT | MODTHREADED RING |
| 9928391. | 9928391 | [2] | WASHER | MODGASKET Superseded by part number: 772052 |
| 9928392. | 9928392 | [1] | HYD CONNECTOR | MODUNION Superseded by part number: 772044 |
| 9928394. | 9928394 | [1] | HYD CONNECTOR | MODCONNECTION |
| 9930019. | 9930019 | [1] | SPRING | MOD |
| 9930022. | 9930022 | [1] | HYD CONNECTOR | MODTHREADED RING |
| 9930024. | 9930024 | [1] | HYD CONNECTOR | MODADAPTOR |
| 9930025. | 9930025 | [1] | WASHER | MODGASKET Superseded by part number: 772040 |
| 9930027. | 9930027 | [1] | WASHER | MODGASKET |
| 9930969. | 9930969 | [1] | ADJUSTMENT ROD | BREROD |
| 9931247. | 9931247 | [1] | ROLL PIN | MODDOWEL |
