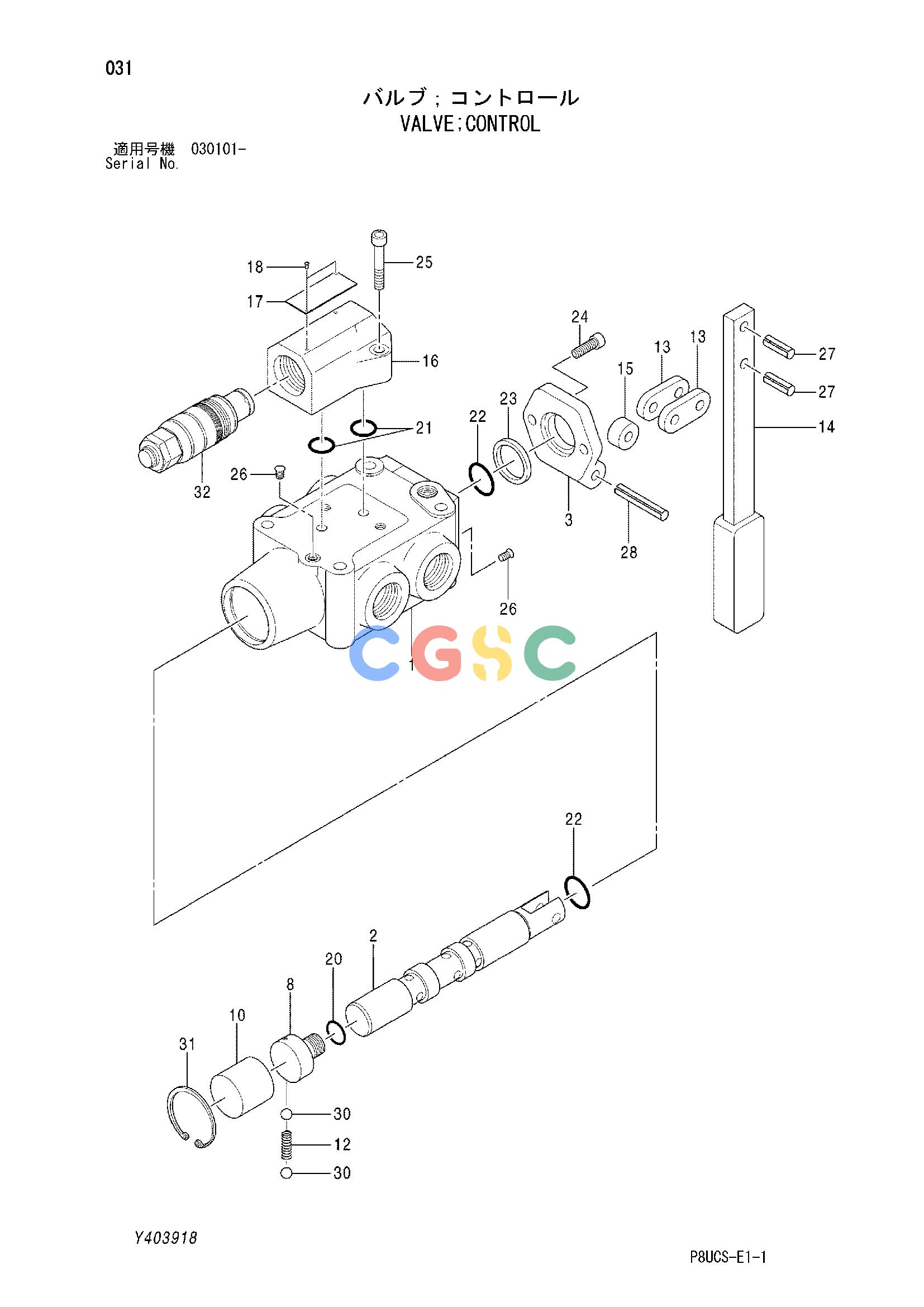

日立零件查询（CP220-3）VALVE;CONTROL Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
291 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | Y403918 | [1] | VALVE;CONTROL | |
| 1. | +++++++ | [1] | BODY | |
| 2. | +++++++ | [1] | SPOOL | |
| 3. | Y413369 | [1] | BRACKET | |
| 8. | Y413370 | [1] | STOPPER | |
| 10. | Y413371 | [1] | DETENT | |
| 12. | Y413372 | [1] | SPRING | |
| 13. | Y413373 | [2] | PLATE | |
| 14. | Y413374 | [1] | LEVER | |
| 15. | Y413375 | [1] | PIECE;DISTANCE | |
| 16. | Y413376 | [1] | BODY | |
| 17. | +++++++ | [1] | NAME-PLATE | |
| 18. | 0242006 | [2] | SCREW;DRIVE | |
| 20. | 4506320 | [1] | O-RING | |
| 21. | Y413377 | [2] | O-RING | |
| 22. | 0699802 | [2] | O-RING | |
| 23. | Y413378 | [1] | SEAL;DUST | |
| 24. | 0486104 | [2] | BOLT;SOCKET | |
| 25. | 0350010 | [2] | BOLT;SOCKET | |
| 26. | +++++++ | [1] | PLUG | |
| 27. | 0774504 | [2] | PIN;SPRING | |
| 28. | Y413379 | [1] | PIN;SPRING | |
| 30. | 0436304 | [2] | BALL;STEEL | |
| 31. | 0625819 | [1] | RING;RETAINING | |
| 32. | Y413380 | [1] | VALVE;RELIEF | |
