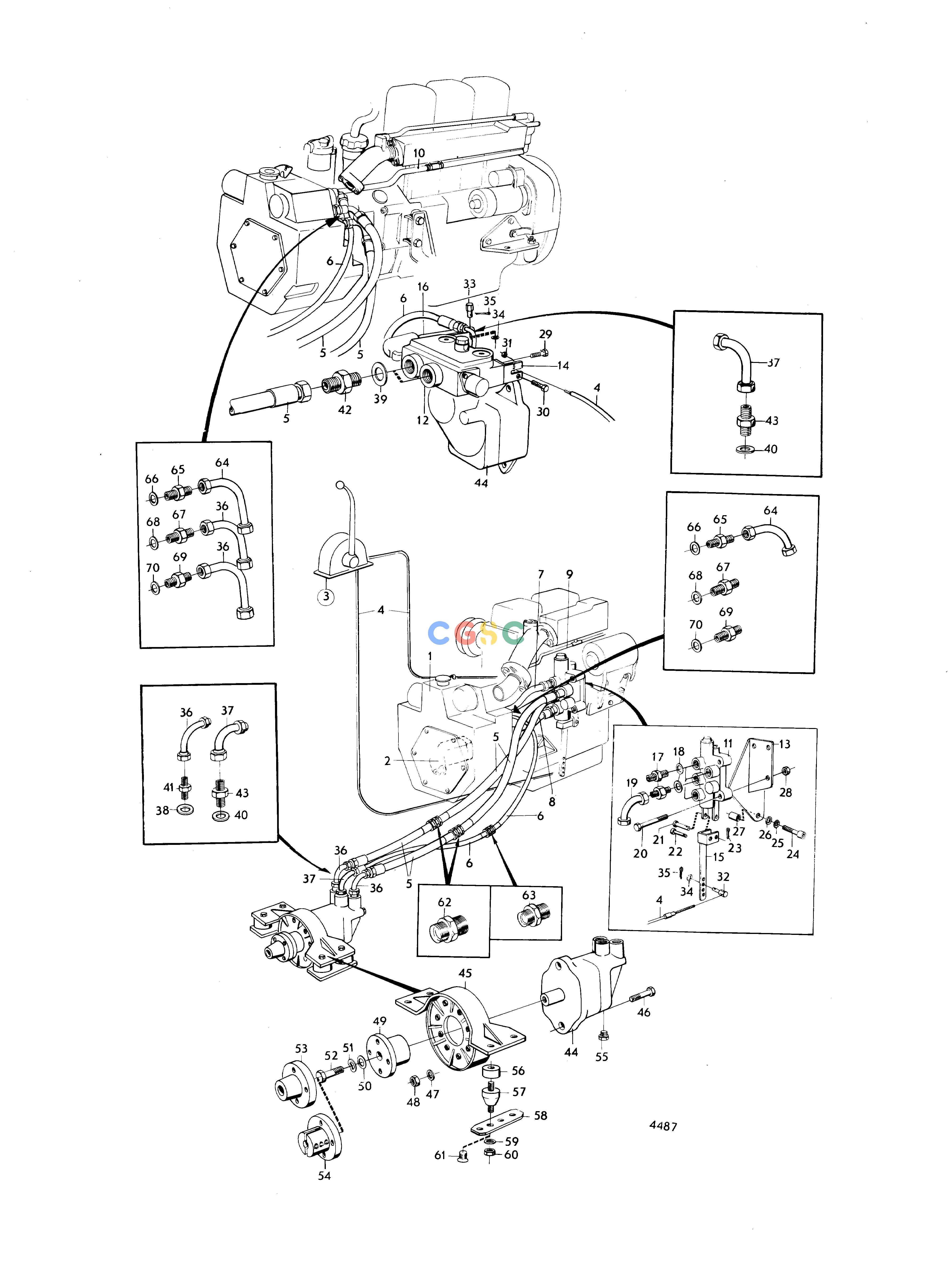

沃尔沃零件查询MD11; MD11C; MD11D; MD17; MD17C; MD17DTransmissionsHydraulic Transmission: MD17EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
451 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
833515
|
[1] |
Oil tank
|
See group 4A
|
| 2. |
833519
|
[1] |
Hydraulic pump
|
See group 4A
|
| 3. |
|
|
|
See group 9
|
| 4. |
|
|
|
See group 9
|
| 5. |
833533
|
[2] |
Hydraulic hose
|
Alt, L=2000mm
|
| 5. |
833534
|
[2] |
Hydraulic hose
|
Alt, L=3000mm
|
| 5. |
|
|
|
Alt, L=4000mm
|
| 6. |
833530
|
[1] |
Hydraulic hose
|
Alt, L=2000mm
|
| 6. |
833536
|
[1] |
Hydraulic hose
|
Alt, L=3000mm
|
| 6. |
833537
|
[1] |
Hydraulic hose
|
Alt, L=4000mm
|
| 10. |
829645
|
[1] |
Coolant pipe
|
See group 2B
|
| 12. |
3701078
|
[1] |
Direction valve
|
|
| 14. |
3701494
|
[1] |
Bracket
|
|
| 16. |
3701493
|
[1] |
Control lever
|
|
| 29. |
942000
|
[2] |
Hex. socket screw
|
|
| 30. |
956076
|
[1] |
Cross recessed screw
|
|
| 31. |
955780
|
[1] |
Hexagon nut
|
|
| 33. |
804312
|
[1] |
Cube
|
|
| 34. |
955892
|
[1] |
Washer
|
|
| 35. |
907834
|
[1] |
Split pin
|
|
| 36. |
396075
|
[2] |
Pipe elbow
|
|
| 37. |
396063
|
[1] |
Pipe elbow
|
|
| 39. |
944252
|
[2] |
Gasket
|
|
| 40. |
943908
|
[1] |
Gasket
|
|
| 42. |
396035
|
[2] |
Nipple
|
|
| 43. |
396033
|
[1] |
Nipple
|
|
| 44. |
827673
|
[1] |
Hydraulic motor
|
|
| 45. |
827904
|
[1] |
Anchorage
|
|
| 46. |
955346
|
[2] |
Hexagon screw
|
|
| 47. |
955897
|
[2] |
Washer
|
|
| 48. |
955784
|
[2] |
Hexagon nut
|
|
| 49. |
827905
|
[1] |
Clutch flange
|
|
| 50. |
827906
|
[1] |
Washer
|
|
| 51. |
940280
|
[1] |
Spring washer
|
|
| 52. |
955339
|
[1] |
Hexagon screw
|
|
| 53. |
806384
|
[1] |
Clutch flange
|
Alt, see group 4A
|
| 54. |
827924
|
[1] |
Clamp coupling
|
Alt, see group 4A
|
| 54. |
827927
|
[1] |
Clamp coupling
|
Alt, see group 4A
|
| 54. |
827958
|
[1] |
Instrument panel
|
Alt, see group 4A
|
| 55. |
914392
|
[1] |
Plug
|
|
| 56. |
807228
|
[4] |
Sleeve
|
|
| 57. |
833955
|
[4] |
Rubber cushion
|
|
| 58. |
833954
|
[2] |
Attaching plate
|
|
| 60. |
955850
|
[4] |
Hexagon nut
|
|
| 61. |
947936
|
[4] |
Hex. socket screw
|
|
| 62. |
396005
|
[1] |
Nipple
|
|
| 63. |
396003
|
[1] |
Nipple
|
|
| 64. |
396063
|
[1] |
Pipe elbow
|
|
| 65. |
396013
|
[1] |
Nipple
|
|
| 66. |
948883
|
[1] |
Gasket
|
|
| 67. |
396015
|
[1] |
Nipple
|
|
| 68. |
948885
|
[1] |
Gasket
|
|
| 69. |
833513
|
[1] |
Nipple
|
|
| 70. |
944252
|
[1] |
Gasket
|
|
