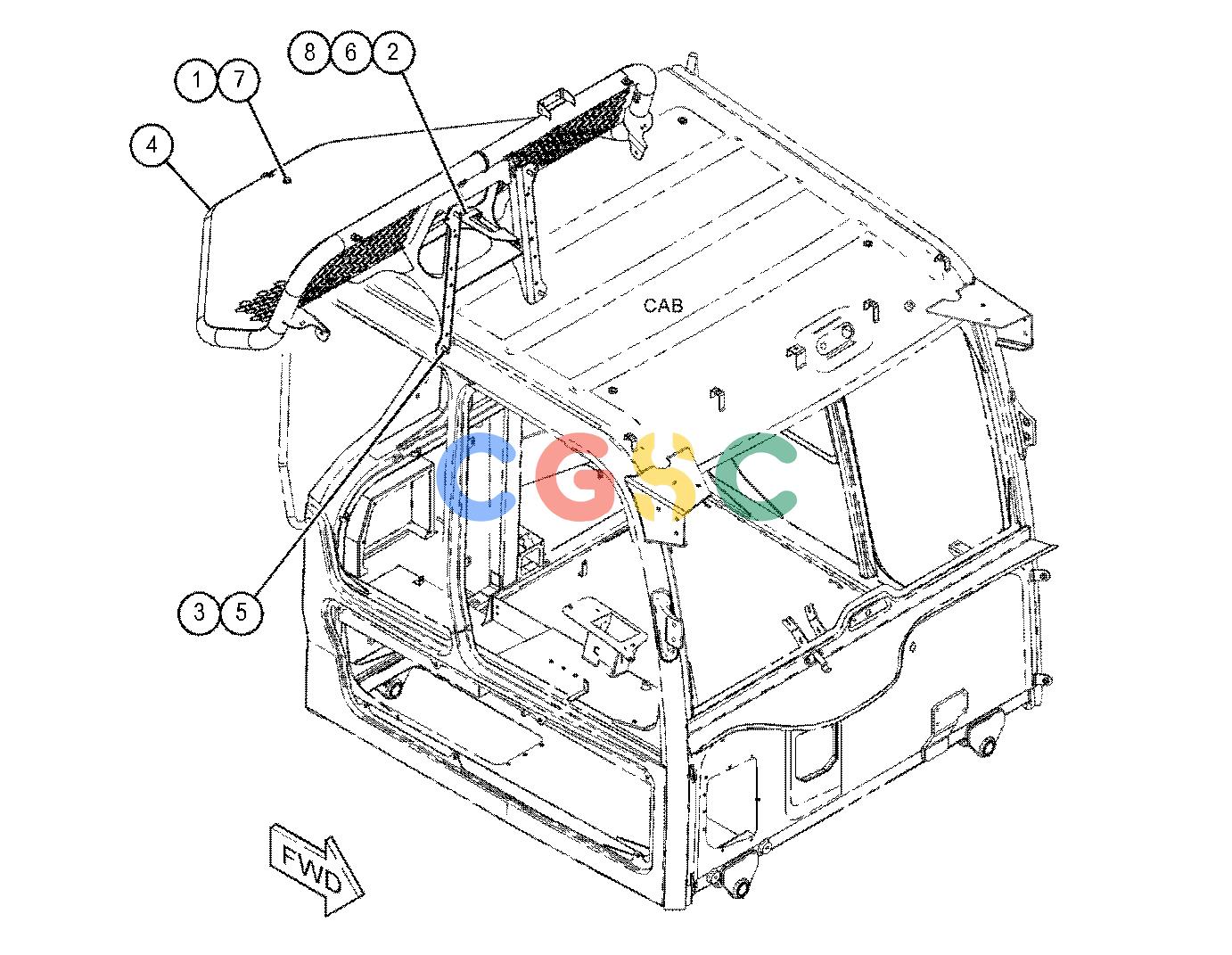

卡特零件查询（730） 560-2819: GUARD GP-WINDOW
广数供应链运营团队, 15 02月, 2025，浏览：
623 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8T-4223 | [3] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 2. | 528-4819 | [1] | BRACKET | |
| 3. | 198-4778 | [4] | WASHER-HARD(13.5X30X12-MM THK) | |
| 4. | 559-3048 | [1] | GUARD AS | |
| | 6V-9632M | [2] | NUT-WELD(M6X1-THD) | |
| | 7T-1099 | [12] | LINK | |
| | 8T-3597M | [3] | NUT-WELD(M12X1.75-THD) | |
| | 8T-3612M | [8] | NUT-WELD(M8X1.25-THD) | |
| 5. | 8T-4183M | [4] | BOLT(M12X1.75X40-MM) | |
| 6. | 8T-4189M | [2] | BOLT(M8X1.25X20-MM) | |
| 7. | 8T-4192M | [3] | BOLT(M12X1.75X25-MM) | |
| 8. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| | M | | METRIC PART |
