神钢零件查询(F4HFE613H B003) - ENGINE 5801731919 - 47519637 (2/14-) (10.206.AG) - FUEL FILTER Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
699 次

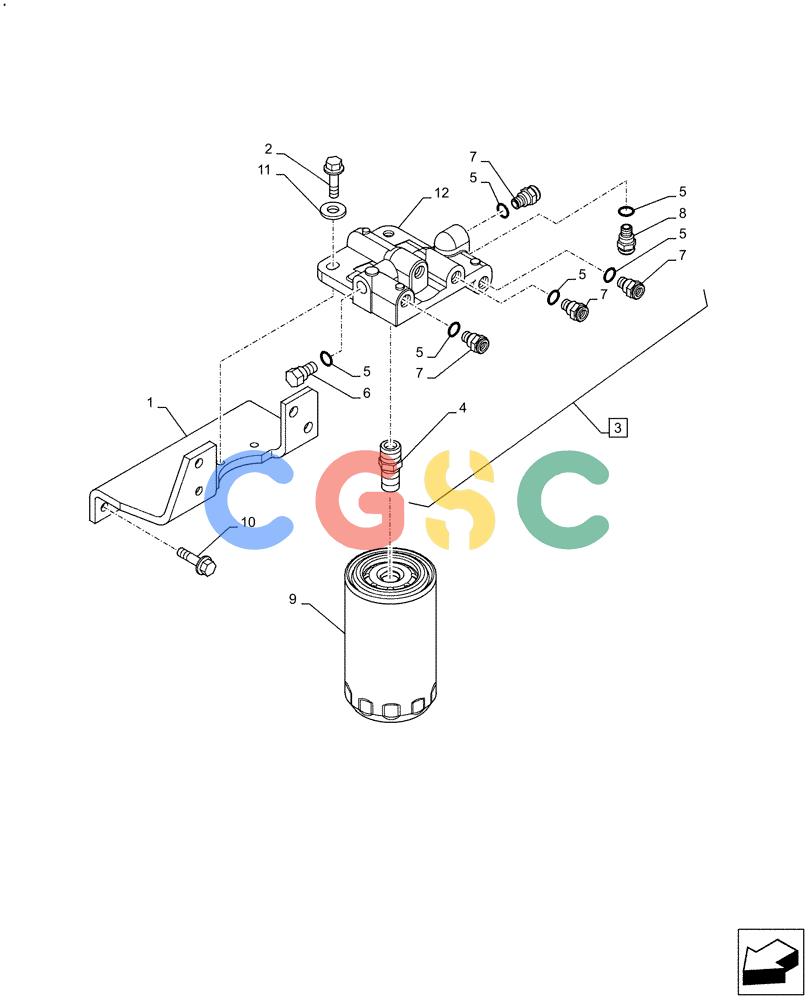

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2852793 | [1] | BRACKET | TOR |
| 2. | 2830733 | [2] | SCREW | TOR |
| 3. | 2859185 | [1] | FILTER HEAD | TORAssy, Incl 4 - 8, 12 Superseded by part number: |
| 5. | 4894721 | [6] | SEALING WASHER,12.2mm ID x 17mm OD x 1.5mm Thk | TOR |
| 6. | 4893464 | [1] | PLUG | TOR |
| 7. | 4890964 | [4] | FITTING,M12 x 1.5 | TOR |
| 8. | 4896543 | [1] | FITTING | TOR |
| 9. | 84412164 | [1] | FUEL FILTER,94mm OD x 192mm L, M20 x 1.5, 10 Microns | FAR |
| 11. | 12647104 | [2] | WASHER,8.15mm ID x 20mm OD x 3mm Thk | BAS |
| 12. | NSS | [1] | NOT SOLD SEPARAT | CONHead-Fuel Filter, Incl in 3 |
