| Pos. | Part No | Qty | Parts name | Comments |
|---|

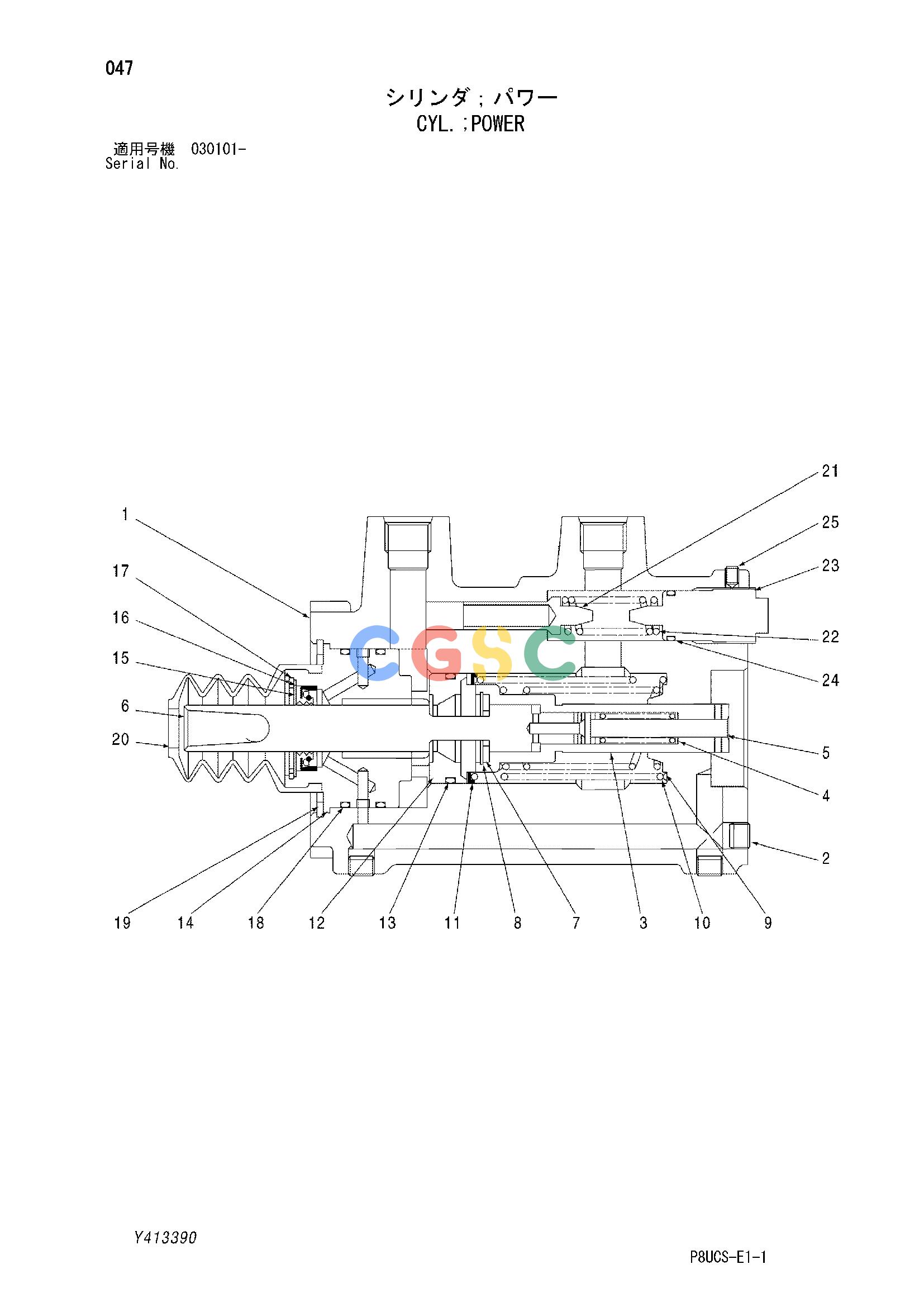

| | Y413390 | [1] | CYL.;POWER | |
| 1. | +++++++ | [1] | BODY | |
| 2. | +++++++ | [3] | PLUG | |
| 3. | Y413904 | [1] | CONNECTER | |
| 4. | Y413905 | [1] | SPRING | |
| 5. | Y413906 | [1] | ROD | |
| 6. | Y413907 | [1] | SPOOL | |
| 7. | Y413908 | [1] | WASHER;THRUST | |
| 8. | Y413909 | [1] | RING;RETAINING | |
| 9. | Y413910 | [1] | SPRING | |
| 10. | Y413911 | [1] | SPRING | |
| 11. | Y413912 | [1] | SEAT;SPRING | |
| 12. | Y413913 | [1] | PISTON;POWER | |
| 13. | Y413914 | [1] | O-RING | |
| 14. | Y413915 | [1] | COVER | |
| 15. | Y413916 | [1] | SEAL;OIL | |
| 16. | Y413917 | [1] | PLATE | |
| 17. | Y413918 | [1] | RING;RETAINING | |
| 18. | Y413919 | [2] | O-RING | |
| 19. | Y413920 | [1] | RING;RETAINING | |
| 20. | Y413921 | [1] | COVER | |
| 21. | Y413922 | [1] | VALVE | |
| 22. | Y413923 | [1] | SPRING | |
| 23. | Y413924 | [1] | PLUG | |
| 24. | Y413925 | [1] | O-RING | |
| 25. | Y413926 | [1] | SCREW;SET | |
