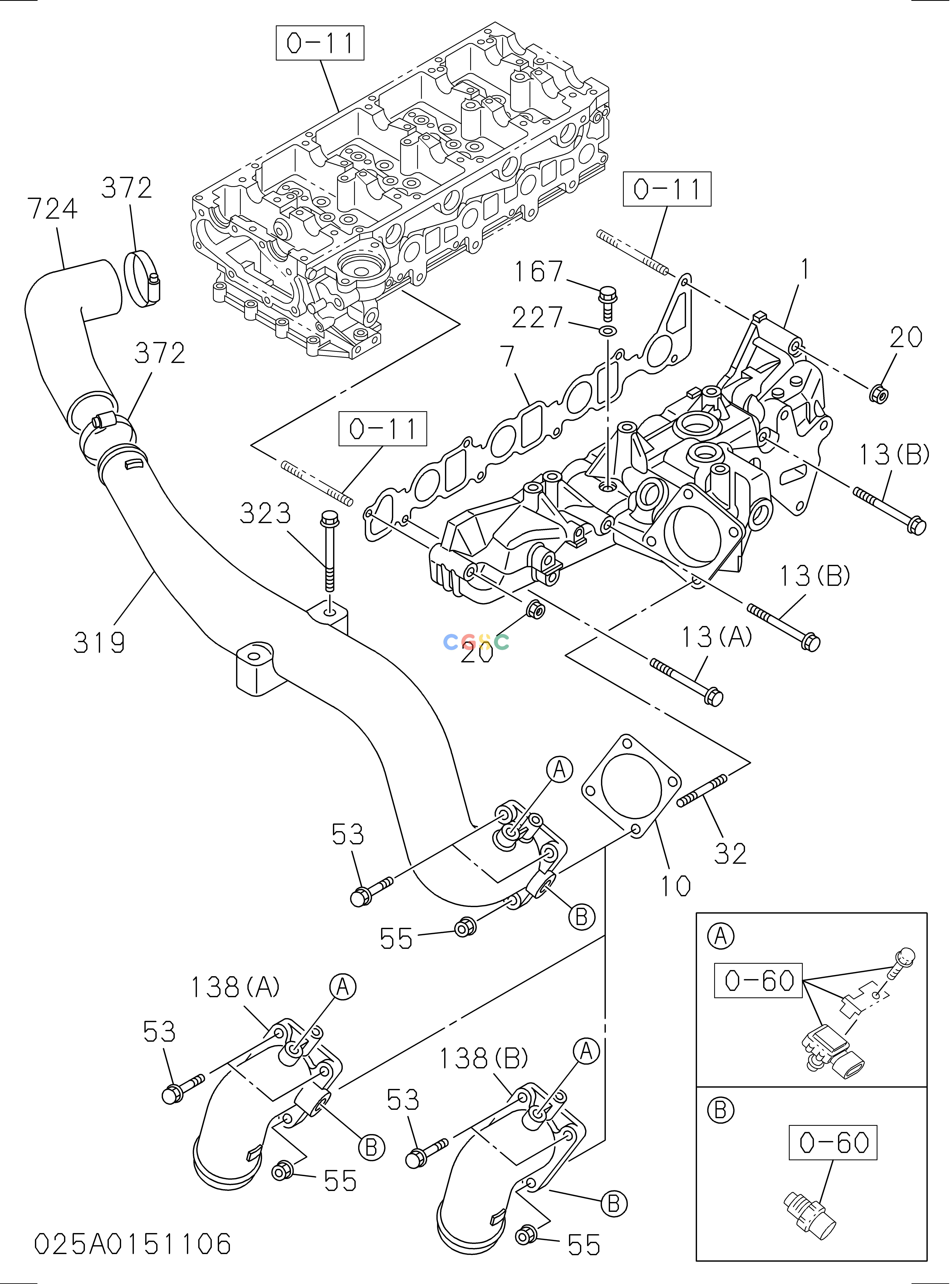

日立零件查询（CP220-3）025: INLET MANIFOLD Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
747 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 001. | 8980244111 | [1] | MANIFOLD; INL | A |
| 001. | 8981783290 | [1] | MANIFOLD; INL | |
| 007. | 8973120671 | [1] | GASKET; INL MANIF TO HD | A ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 007. | 8980633960 | [1] | GASKET; INL MANIF TO HD | ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 010. | 8973667841 | [1] | GASKET; INL PIPE TO MANIF | A ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 010. | 8980969680 | [1] | GASKET; INL PIPE TO MANIF | ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 013(A). | 0280508700 | [4] | BOLT; INL MANIF | M8X70 FLANGE |
| 013(B). | 0280558110 | [2] | BOLT; INL MANIF | M8X110 FLANGE |
| 020. | 0911802080 | [2] | NUT; INL MANIF | M8 FLANGE |
| 032. | 0410106200 | [2] | STUD; INL PIPE | M6X20 L=28 |
| 053. | 0286506300 | [2] | BOLT; INL PIPE | M6X30 FLANGE |
| 055. | 0911105060 | [2] | NUT; INL PIPE | M6 |
| 138(B). | 8980198310 | [1] | PIPE; INL | |
| 167. | 1096040740 | [1] | PLUG;INL MANIF | |
| 227. | 9095714100 | [1] | GASKET; PLUG | |
