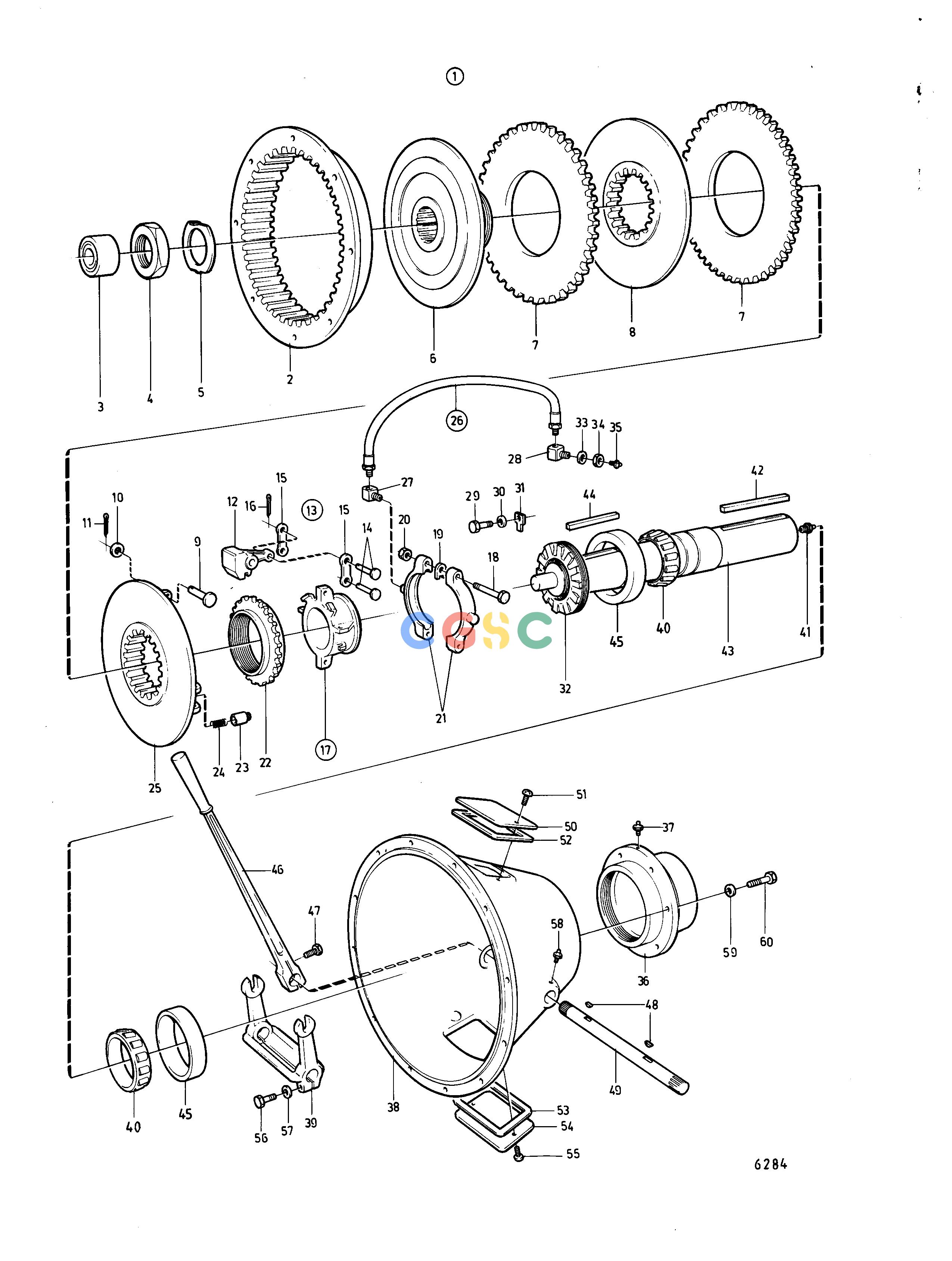

沃尔沃零件查询MD120A; MD120AK; TMD120A; TMD120AK; TAMD120A; TAMD120AK; TMD120B; TAMD120B; TAMD120B-CCClutch, Elastic CouplingClutchEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
286 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
821366
|
[1] |
Clutch
|
Pre-drilled 38mm
|
| 2. |
806009
|
[1] |
Drive ring
|
|
| 3. |
821066
|
[1] |
Drive outlet
|
|
| 4. |
827624
|
[1] |
Nut
|
|
| 5. |
827625
|
[1] |
Lock washer
|
|
| 6. |
827628
|
[1] |
Pressure plate
|
|
| 7. |
827629
|
[2] |
Disc
|
|
| 8. |
804831
|
[1] |
Intermediate plate
|
|
| 9. |
825504
|
[4] |
Locating pin
|
|
| 10. |
804857
|
[8] |
Lock washer
|
|
| 11. |
907881
|
[4] |
Split pin
|
(907877)
|
| 12. |
804854
|
[4] |
Lever
|
|
| 13. |
827630
|
[1] |
Release bearing
|
|
| 14. |
827354
|
[8] |
Clevis pin
|
|
| 15. |
|
|
|
|
| 16. |
907861
|
[8] |
Split pin
|
|
| 17. |
|
|
|
|
| 18. |
|
|
|
|
| 19. |
|
|
|
|
| 20. |
|
|
|
|
| 21. |
|
|
|
|
| 22. |
804814
|
[1] |
Adjusting ring
|
|
| 23. |
|
|
|
|
| 24. |
804859
|
[1] |
Spring
|
|
| 25. |
804853
|
[1] |
Pressure plate
|
|
| 26. |
806038
|
[1] |
Lubricating hose
|
|
| 27. |
|
|
|
|
| 28. |
|
|
|
|
| 29. |
805521
|
[1] |
Screw
|
|
| 30. |
808733
|
[1] |
Washer
|
|
| 31. |
805498
|
[1] |
Lock washer
|
|
| 32. |
827623
|
[1] |
Bearing carrier
|
|
| 33. |
955953
|
[1] |
Toothed washer
|
|
| 34. |
805560
|
[1] |
Nut
|
|
| 35. |
914167
|
[1] |
Lubricating nipple
|
|
| 36. |
805745
|
[1] |
Bearing carrier
|
|
| 37. |
914167
|
[1] |
Lubricating nipple
|
|
| 38. |
|
|
|
|
| 39. |
805739
|
[1] |
Release fork
|
|
| 40. |
181298
|
[2] |
Inner ring
|
|
| 41. |
805620
|
[2] |
Protective hat
|
|
| 42. |
805582
|
[1] |
Key
|
|
| 43. |
821005
|
[1] |
Shaft
|
|
| 44. |
805587
|
[1] |
Key
|
|
| 45. |
181128
|
[2] |
Cup
|
|
| 46. |
805808
|
[1] |
Lever
|
|
| 47. |
806005
|
[1] |
Lock bolt
|
|
| 48. |
827626
|
[2] |
Key
|
|
| 49. |
805430
|
[1] |
Shaft
|
|
| 50. |
806007
|
[1] |
Hatch
|
|
| 51. |
805558
|
[2] |
Screw
|
|
| 52. |
805431
|
[1] |
Gasket
|
|
| 53. |
805431
|
[1] |
Gasket
|
|
| 54. |
806008
|
[1] |
Hatch
|
|
| 55. |
805558
|
[2] |
Screw
|
|
| 56. |
805524
|
[2] |
Screw
|
|
| 57. |
955950
|
[2] |
Toothed washer
|
|
| 58. |
827627
|
[2] |
Lubricator
|
|
| 59. |
805596
|
[6] |
Lock washer
|
|
| 60. |
805540
|
[6] |
Screw
|
|
