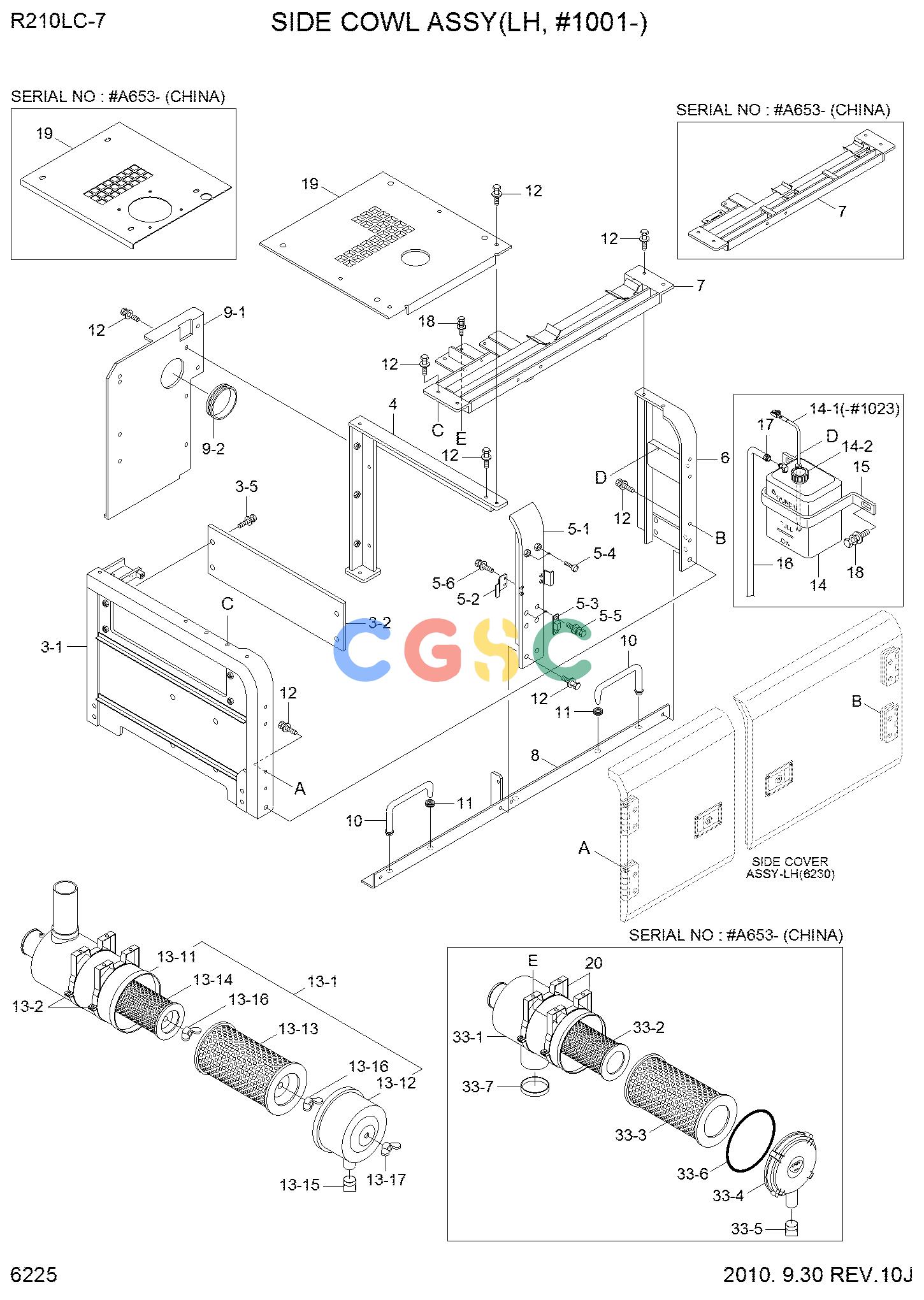

现代零件查询R210LC-7A SIDE COWL ASSY(LH, LOG LOADER)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
533 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
71W5-52000
|
[1] |
SIDE COWL ASSY-LH
|
|
| . |
71W5-52002
|
[1] |
SIDE COWL ASSY-LH
|
|
| 3. |
71W5-52300
|
[1] |
SUPPORT ASSY-LH(FR)
|
|
| 3-1. |
71N6-52310
|
[1] |
SUPPORT-WA-LH(FR)
|
|
| 3-2. |
71N8-52322
|
[1] |
COVER-PLATE
|
|
| 3-3. |
S037-122552
|
[4] |
BOLT-W/WASHER
|
|
| 4. |
74N6-52410
|
[1] |
SUPPORT WA-LH(MID1)
|
|
| 5. |
71W5-52400
|
[1] |
SUPPORT ASSY-LH(MID2)
|
|
| 5-1. |
71W5-52410
|
[1] |
SUPPORT WA-LH(MID2)
|
|
| 5-2. |
71W5-52490
|
[2] |
PLATE-LOCK
|
|
| 5-3. |
71EH-13150
|
[2] |
BUMPER-RUBBER
|
|
| 5-4. |
S037-122056
|
[4] |
BOLT-W/WASHER
|
|
| 6. |
71W5-52500
|
[1] |
SUPPORT WA-LH(RR)
|
|
| 7. |
76N6-52600
|
[1] |
SUPPORT WA-ENG HOOD
|
|
| 8. |
71N6-52703
|
[1] |
SUPPORT-LH,BOTTOM
|
|
| 9. |
76N6-52910
|
[1] |
SCREEN ASSY-MCV
|
|
| 9-1. |
76N6-52920
|
[1] |
PLATE-SCREEN
|
|
| 9-2. |
S791-030057
|
[1] |
GROMMET-PLATE
|
|
| 10. |
71N8-52950
|
[2] |
STAY-SIDE COVER
|
|
| 11. |
S681-100400
|
[2] |
GROMMET
|
|
| 12. |
S037-122556
|
[25] |
BOLT-W/WASHER
|
|
| 13. |
11N6-20010
|
[1] |
AIR CLEANER SUB ASSY
|
|
| 13-1. |
11N6-20100
|
[1] |
AIR CLEANER ASSY
|
|
| 13-1-1. |
11N6-20110
|
[1] |
BODY-AIR CLEANER
|
|
| 13-1-2. |
11N6-20120
|
[1] |
CAP-AIR CLEANER
|
|
| 13-1-3. |
11EM-21041
|
[1] |
ELEMENT-PRIMARY
|
|
| 13-1-4. |
11EM-21051
|
[1] |
ELEMENT-SAFETY
|
|
| 13-1-5. |
E211-2105
|
[1] |
VALVE-VACUUM
|
|
| 13-1-6. |
11EM-21060
|
[1] |
NUT-WING
|
|
| 13-1-7. |
11EM-21070
|
[1] |
NUT-WING
|
|
| 14. |
11N8-41070
|
[1] |
TANK-RESERVOIR
|
|
| 14-1. |
11EN-42400
|
[1] |
SENSOR-RESERVOIR
|
|
| 14-2. |
MH100020
|
[1] |
CAP-RESERVOIR TANK
|
|
| 15. |
11N8-41080
|
[1] |
CLAMP-RESERVOIR TANK
|
|
| 16. |
E111-2504
|
[1] |
HOSE
|
|
| 17. |
S520-015000
|
[1] |
CLAMP-HOSE,S/DRIVE
|
|
| 18. |
S035-082026
|
[6] |
BOLT-W/WASHER
|
|
| 19. |
74N6-55100
|
[1] |
HOOD WA-A/CLEANER
|
|
| 19. |
76N6-55100
|
[1] |
HOOD WA-A/CLEANER
|
|
| 20. |
S037-123056
|
[4] |
BOLT-W/WASHER
|
|
