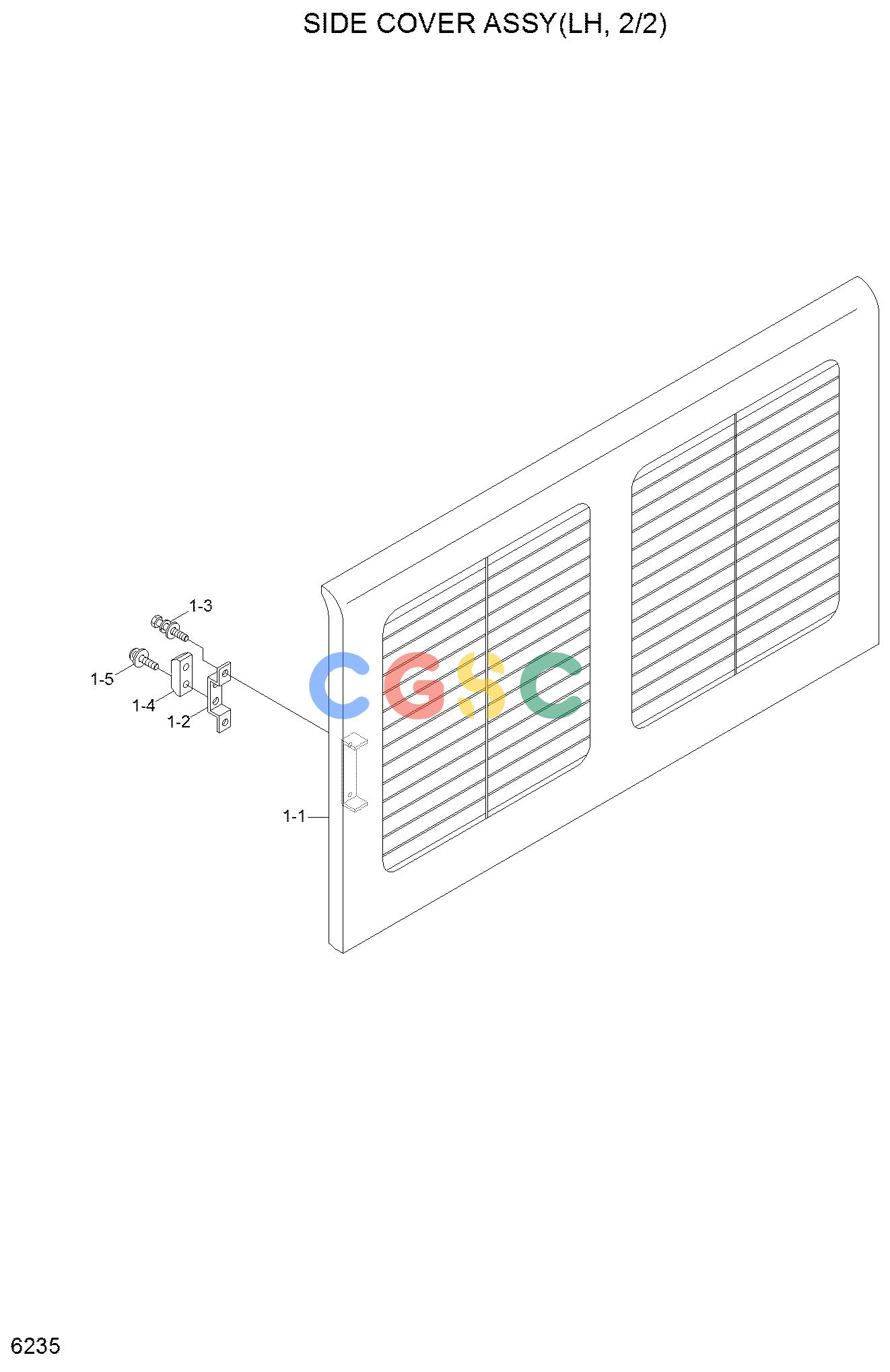

现代零件查询R210LC-7A SIDE COVER ASSY(LH, LOG LOADER)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
217 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
71W5-52000
|
[1] |
SIDE COWL ASSY-LH
|
|
| 1. |
71W5-52100
|
[1] |
SIDE COVER ASSY-LH(FR)
|
|
| 1-1. |
71W5-52110
|
[1] |
COVER WA-LH(FR)
|
|
| 1-2. |
71W5-59200
|
[1] |
CATCH ASSY
|
|
| 1-3. |
71N6-51140
|
[1] |
STOPPER-A
|
|
| 1-4. |
S681-100400
|
[1] |
GROMMET
|
|
| 1-5. |
S772-024000
|
[1] |
WEATHER STRIP
|
|
| 1-6. |
S037-102526
|
[2] |
BOLT-W/WASHER
|
|
| 1-7. |
S132-063056
|
[2] |
SCREW-W/WASHER
|
|
| 2. |
71W5-52200
|
[1] |
SIDE COVER ASSY-LH(RR)
|
|
| 2-1. |
71W5-52210
|
[1] |
COVER WA-LH(RR)
|
|
| 2-2. |
71W5-53160
|
[1] |
SPONGE
|
|
| 2-3. |
71W5-59200
|
[1] |
CATCH ASSY
|
|
| 2-4. |
71N6-51140
|
[1] |
STOPPER-A
|
|
| 2-5. |
71EM-51580
|
[8] |
CAP-STUD BOLT
|
|
| 2-6. |
71W5-51700
|
[1] |
WIRE NET
|
|
| 2-7. |
S681-100400
|
[1] |
GROMMET
|
|
| 2-8. |
S772-025900
|
[1] |
WEATHER STRIP
|
|
| 2-9. |
S037-102526
|
[2] |
BOLT-W/WASHER
|
|
| 2-10. |
S132-063056
|
[2] |
SCREW-W/WASHER
|
|
| 2-11. |
S035-081526
|
[8] |
BOLT-W/WASHER
|
|
