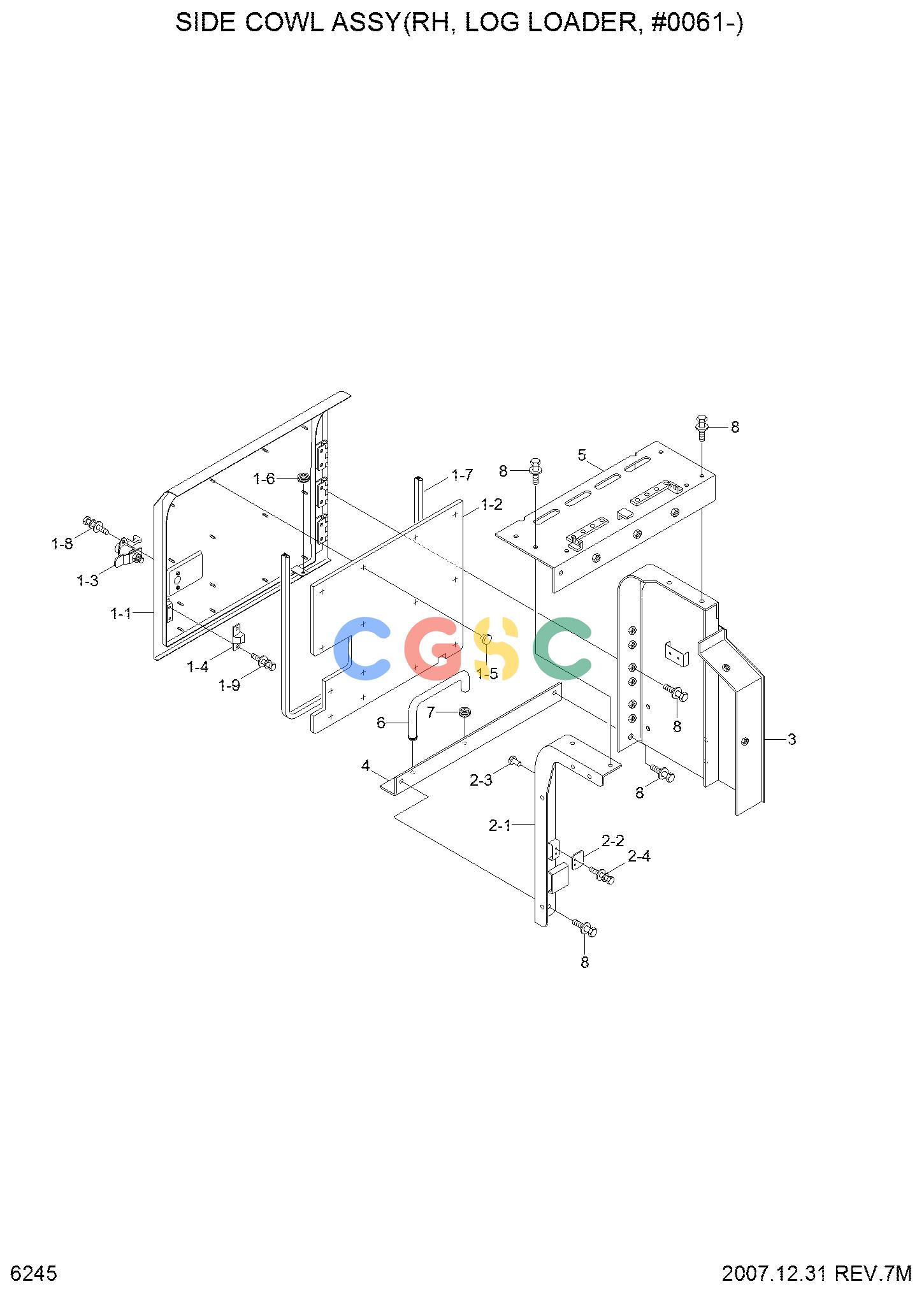

现代零件查询R210LC-7A SIDE COWL ASSY(RH, LOG LOADER)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
533 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
71W5-53100
|
[1] |
SIDE COVER ASSY-RH
|
|
| 1. |
71W5-53100
|
[1] |
SIDE COVER ASSY-RH
|
|
| 1-1. |
71W5-53110
|
[1] |
SIDE COVER WA-RH
|
|
| 1-2. |
71W5-53130
|
[1] |
SPONGE
|
|
| 1-3. |
71W5-53140
|
[1] |
SPONGE
|
|
| 1-4. |
71W5-59200
|
[1] |
CATCH ASSY
|
|
| 1-5. |
71N6-51140
|
[1] |
STOPPER-A
|
|
| 1-6. |
71EM-51580
|
[14] |
CAP-STUD BOLT
|
|
| 1-7. |
S681-100400
|
[1] |
GROMMET
|
|
| 1-8. |
S772-027500
|
[1] |
WEATHER STRIP
|
|
| 1-9. |
S037-102526
|
[2] |
BOLT-W/WASHER
|
|
| 1-10. |
S132-063056
|
[2] |
SCREW-W/WASHER
|
|
| 2. |
71W5-53260
|
[1] |
SUPPORT ASSY-RH(FR)
|
|
| 2-1. |
71W5-53270
|
[1] |
SUPPORT WA-RH(FR)
|
|
| 2-2. |
71W5-52490
|
[1] |
PLATE-LOCK
|
|
| 2-3. |
71EH-13150
|
[1] |
RUBBER-BUMPER
|
|
| 2-4. |
S037-122556
|
[2] |
BOLT W/WASHER
|
|
| 3. |
71W5-53200
|
[1] |
SUPPORT WA-RH(RR)
|
|
| 4. |
71N6-53302
|
[1] |
SUPPORT-RH(BOTTOM)
|
|
| 5. |
76N6-53401
|
[1] |
HOOD WA-PUMP
|
|
| 6. |
71N8-52950
|
[1] |
STAY-SIDE COVER
|
|
| 7. |
S681-100400
|
[1] |
GROMMET
|
|
| 8. |
S037-122556
|
[12] |
BOLT W/WASHER
|
|
