纽荷兰零件查询(FD20) - CRAWLER DOZER (A4.02[004]) - ENGINE COOLANT FILTER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
894 次

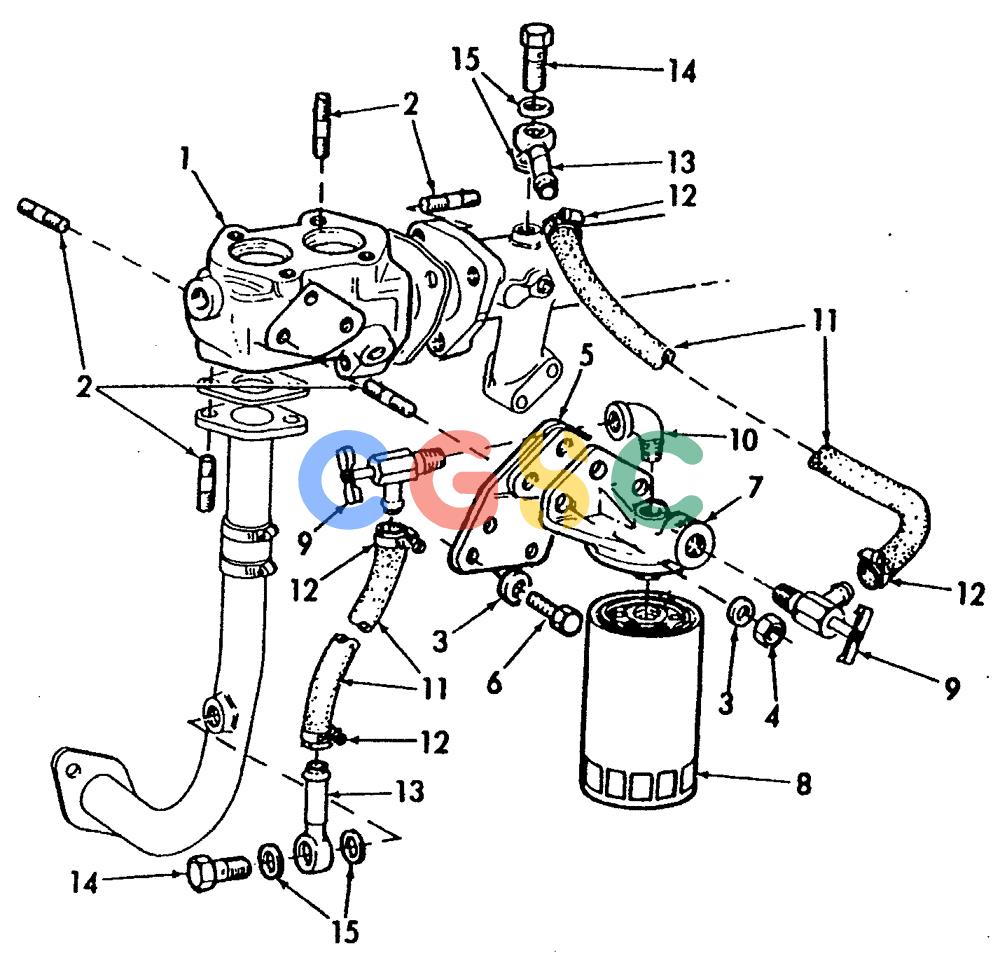

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 04736292 | [1] | HOUSING, INCLUDES ITEM 2 | |
| 2. | 13543321 | [13] | STUD | TORM8 x 1.25 x 36MM Superseded by part number: 16746624 |
| 3. | 11194071 | [6] | LOCK WASHER | MODWASHER Superseded by part number: 11194079 |
| 4. | 16100811 | [3] | NUT,Hex, M8, 6.80mm, Cl 8, ZND | TTFM8, Cl 8 Superseded by part number: 43362 |
| 5. | 79027450 | [1] | BRACKET | LEC |
| 6. | 16043431 | [3] | SCREW,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd | BHB Superseded by part number: 16605534 |
| 7. | 73143978 | [1] | SUPPORT | CMIHEAD, FILTER |
| 8. | 04681776 | [1] | ELEMENT, FILTER | |
| 9. | 70089894 | [2] | DRAINCOCK/TAP SUPPLY | BHBVALVE, SHUTOFF |
| 10. | 70901723 | [1] | ELBOW | CMI90, 3/8""NPT |
| 11. | 73144037 | [2] | HOSE | CMI Superseded by part number: 70920722 |
| 12. | 70921911 | [4] | HOSE CLIP | BHBCLAMP, 11/16"" - 1-1/4"" Superseded by part number: 86536660 |
| 13. | 73143974 | [2] | RIGID TUBE | CMITUBE |
| 14. | 10184317 | [2] | BANJO BOLT,M14 x 1.5 x 27mm | BHBBOLT Superseded by part number: 10184311 |
| 15. | 10280060 | [4] | SEAL,M14.2 x 20 x 1.5 | TTFGASKET Superseded by part number: 4858608 |
