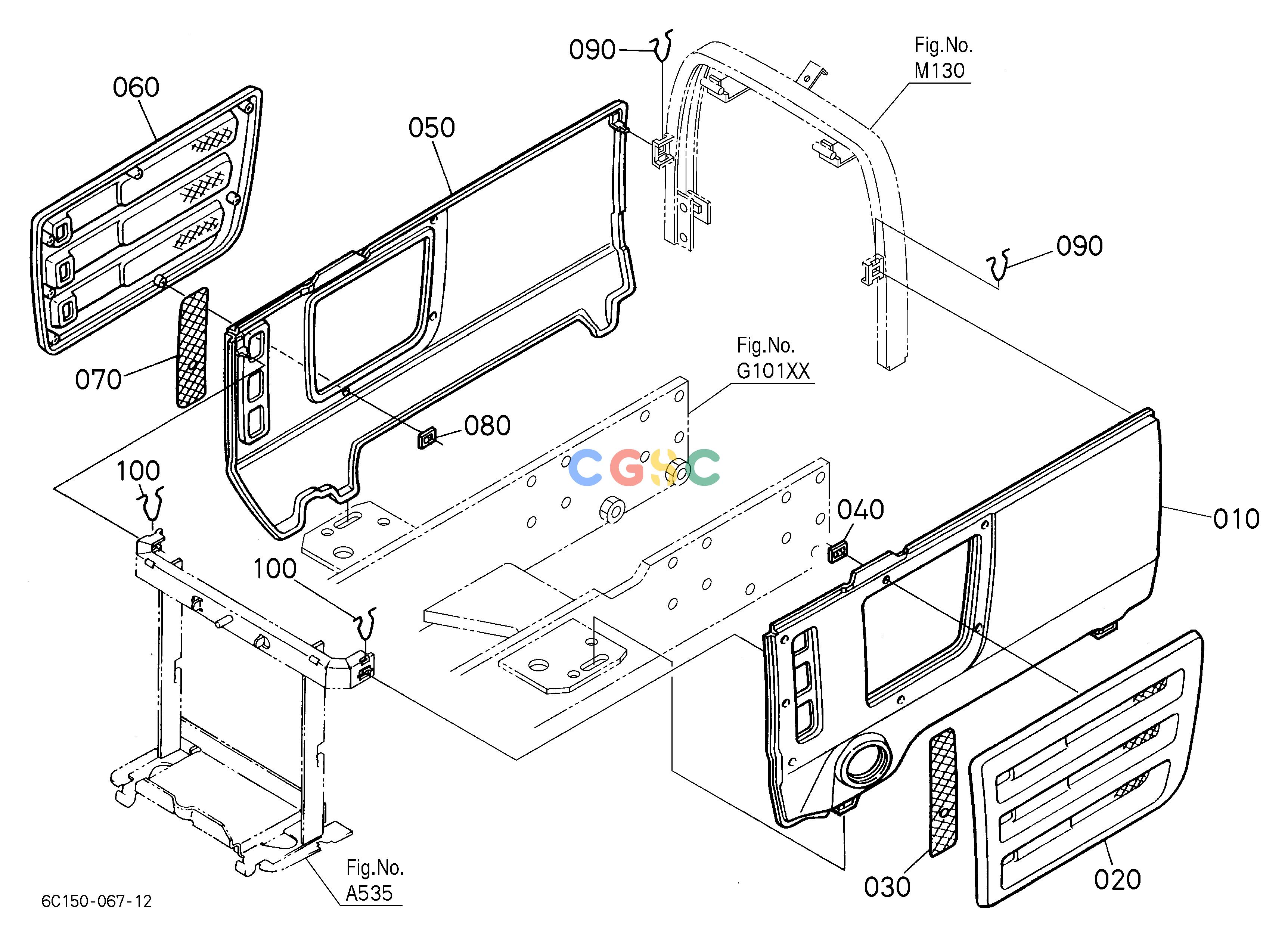

久保田零件查询M12002 SIDE COVER [AU][NZ] HOOD/BONNETEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
911 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C04054324
|
[1] |
COVER SIDE LH
|
3.2340(lbs); 1.470
|
| 020. |
6C07054330
|
[1] |
COVER
|
0.5060(lbs); 0.230
|
| 030. |
6C04054390
|
[1] |
NET
|
0.0220(lbs); 0.010
|
| 040. |
5561144190
|
[7] |
NUT
|
0.0088(lbs); 0.004
|
| 050. |
6C04054355
|
[1] |
COVER SIDE RH
|
3.2560(lbs); 1.480
|
| 060. |
6C07054380
|
[1] |
COVER
|
3.9600(lbs); 1.800
|
| 070. |
6C04054390
|
[1] |
NET
|
0.0220(lbs); 0.010
|
| 080. |
5561144190
|
[7] |
NUT
|
0.0088(lbs); 0.004
|
| 090. |
6C04054364
|
[2] |
SPRING
|
0.0088(lbs); 0.004
|
| 100. |
6C04054364
|
[2] |
SPRING
|
0.0088(lbs); 0.004
|
