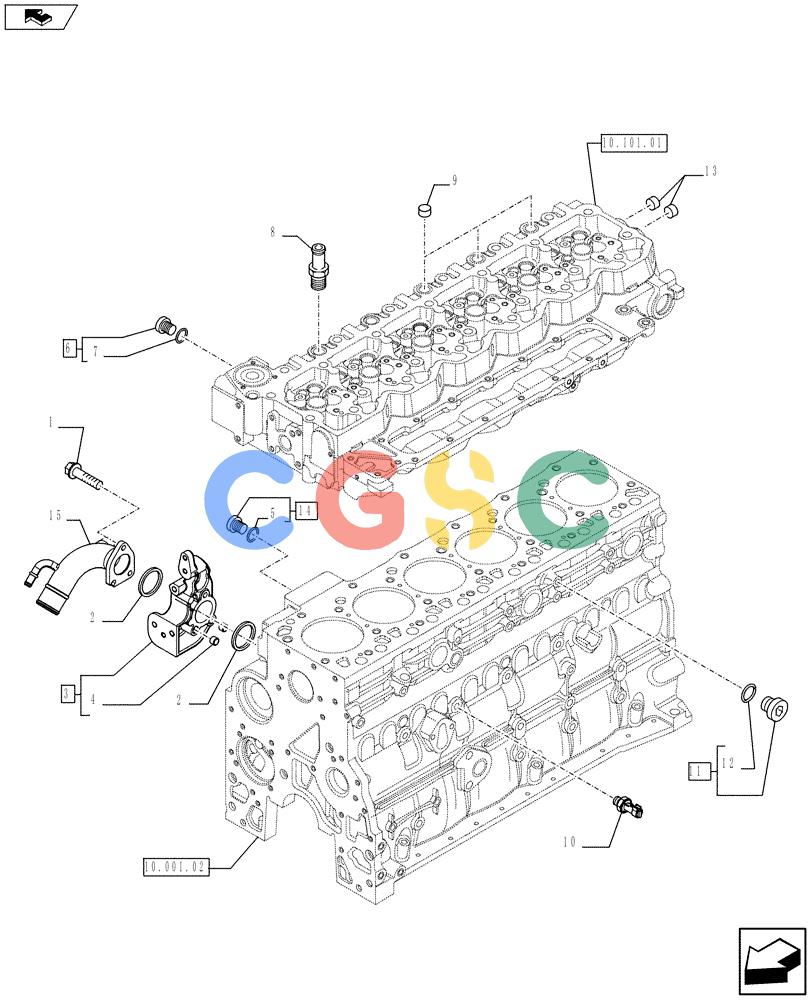

神钢零件查询(F4HFE613P A004) - ENGINE 5801366313 - LB02P00016P1 (3/10-) (10.400.01) - PIPING - ENGINE COOLING SYSTEM (504122685 - 504259533 - 504199747 - 4891480 - 504358254) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
819 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 16592924 | [3] | SCREW,M10 x 1.5 x 80mm | TORM10 x 130 Superseded by part number: 16592925 |
| 2. | 2854072 | [2] | SEALING RING,Square, 5.16mm Thk x 50.17mm ID | TOR Superseded by part number: 504062710 |
| 3. | 2852392 | [1] | SUPPORT | TORASSY Superseded by part number: 500387647 |
| 4. | 98405182 | [2] | DOWEL | TOR |
| 5. | 4895393 | [1] | O-RING,2.2mm Thk x 15.3mm ID | TOR |
| 6. | 4895080 | [1] | HEX SOCKET PLUG,M22 x 1.5 | TORASSY |
| 7. | 2854072 | [1] | SEALING RING,Square, 5.16mm Thk x 50.17mm ID | TOR Superseded by part number: 504062710 |
| 8. | 4896924 | [1] | HYD CONNECTOR | LEC |
| 9. | 4895078 | [3] | PIPE PLUG,1/2"-14 | TOR |
| 10. | 4895118 | [1] | FITTING | LEC |
| 11. | 4895623 | [1] | HEX SOCKET PLUG,M16 x 1.5 | TORASSY |
| 12. | 4895625 | [1] | O-RING,13.3mm ID x 2.2mm Width | TOR Superseded by part number: 17281681 |
| 13. | 4893036 | [2] | PIPE PLUG,3/4"-14 NPTF | TOR Superseded by part number: 2854866 |
| 14. | 4895392 | [1] | HEX SOCKET PLUG,M18 x 1.5 | TORASSY |
| 15. | 84370315 | [1] | PIPE | TOR Superseded by part number: |
