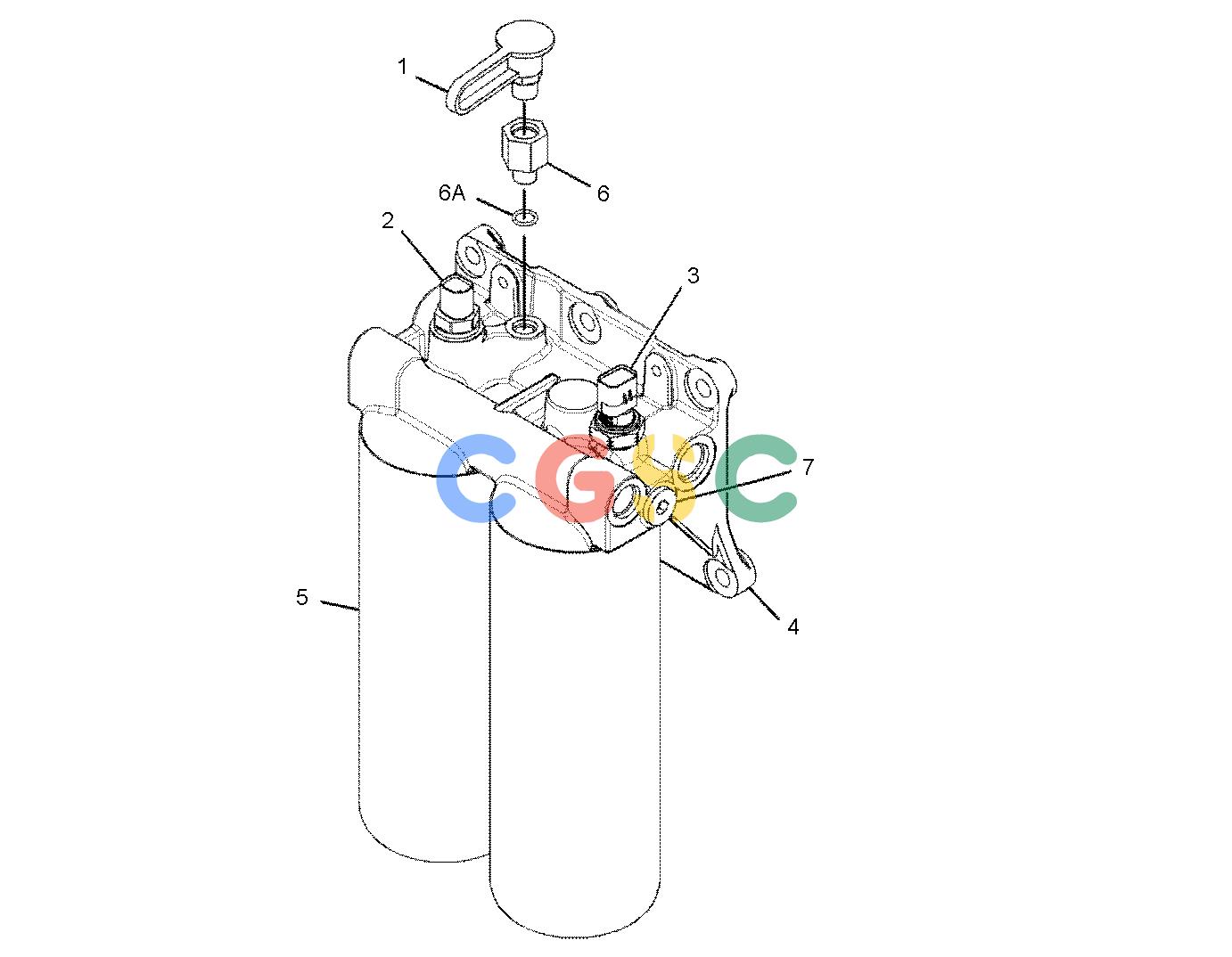

卡特零件查询（730） 343-8126: BASE GP-FUEL FILTER
广数供应链运营团队, 15 02月, 2025，浏览：
483 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 123-0783Y | [1] | VALVE GP-FLUID SAMPLING(FUEL) | |
| 2. | 234-5013Y | [1] | SENSOR GP-TEMPERATURE(FUEL) | |
| 3. | 325-8634Y | [1] | SENSOR GP-PRESSURE(FUEL) | |
| 4. | 348-7307 | [1] | BASE AS-FUEL FILTER | |
| | 9S-4167 | [2] | STUD-HOLLOW(1-14X1.47-IN) | |
| 5. | 1R-0749 | [2] | FILTER-FUEL(ADVANCED EFFICIENCY) | |
| 6. | 386-6235 | [1] | CONNECTOR AS | |
| 6A. | 214-7567 | [1] | SEAL-O-RING | |
| | 5P-1318 | [1] | ADAPTER | |
| 7. | 8L-2786 | [1] | SEAL-O-RING | |
| 8. | 9S-8005 | [1] | PLUG(3/4-16-THD) | |
| | Y | | SEPARATE ILLUSTRATION |
