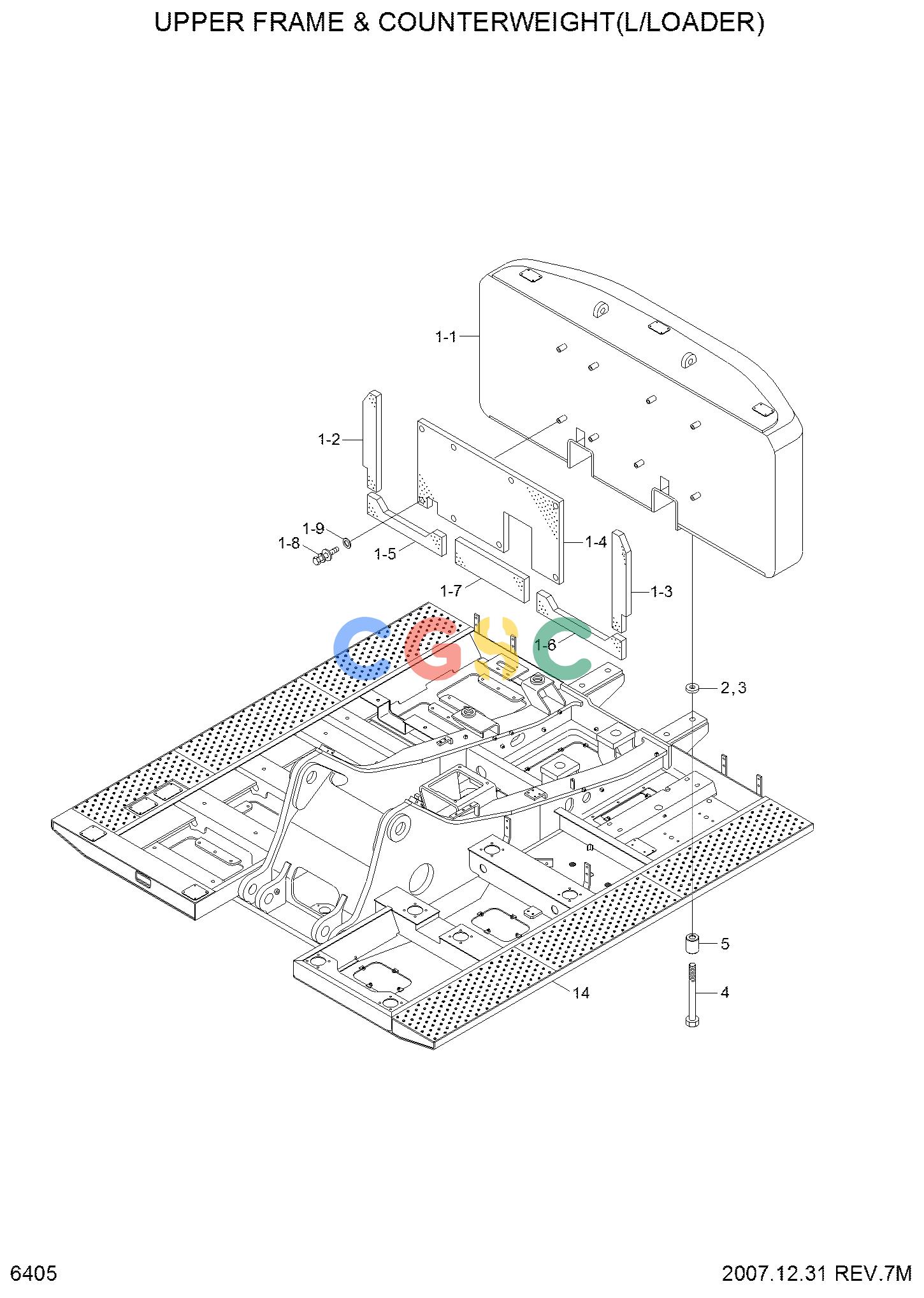

现代零件查询R210LC-7A UPPER FRAME & COUNTERWEIGHT(LOG LOADER)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
689 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
@
|
[1] |
COUNTERWEIGHT
|
|
| 1. |
41W5-24500
|
[1] |
COUNTER WEIGHT ASSY
|
|
| 1-1. |
41W5-24000
|
[1] |
COUNTER WEIGHT W.A
|
|
| 1-2. |
41N6-24211
|
[1] |
SPONGE(A)
|
|
| 1-3. |
S037-102556
|
[9] |
BOLT-W/WASHER
|
|
| 1-4. |
61L1-2037
|
[9] |
WASHER-HARDENED
|
|
| 1-5. |
41N6-22310
|
[1] |
SPONGE(B)
|
|
| 1-6. |
41N6-22320
|
[1] |
SPONGE(C)
|
|
| 1-7. |
41N6-22330
|
[1] |
SPONGE(D)
|
|
| 1-8. |
41N6-22340
|
[1] |
SPONGE(E)
|
|
| 1-9. |
41N6-22350
|
[1] |
SPONGE(F)
|
|
| 2. |
41N6-22201
|
[4] |
SPACER
|
|
| 3. |
S391-050075
|
[5] |
SHIM-ROUND(1.0T)
|
|
| 4. |
S392-050075
|
[5] |
SHIM-ROUND(2.0T)
|
|
| 5. |
S018-361356
|
[4] |
BOLT-HEX
|
|
| 11. |
41W5-00010
|
[1] |
UPPER FRAME WA
|
|
| 11. |
41W5-00011
|
[1] |
UPPER FRAME WA
|
|
