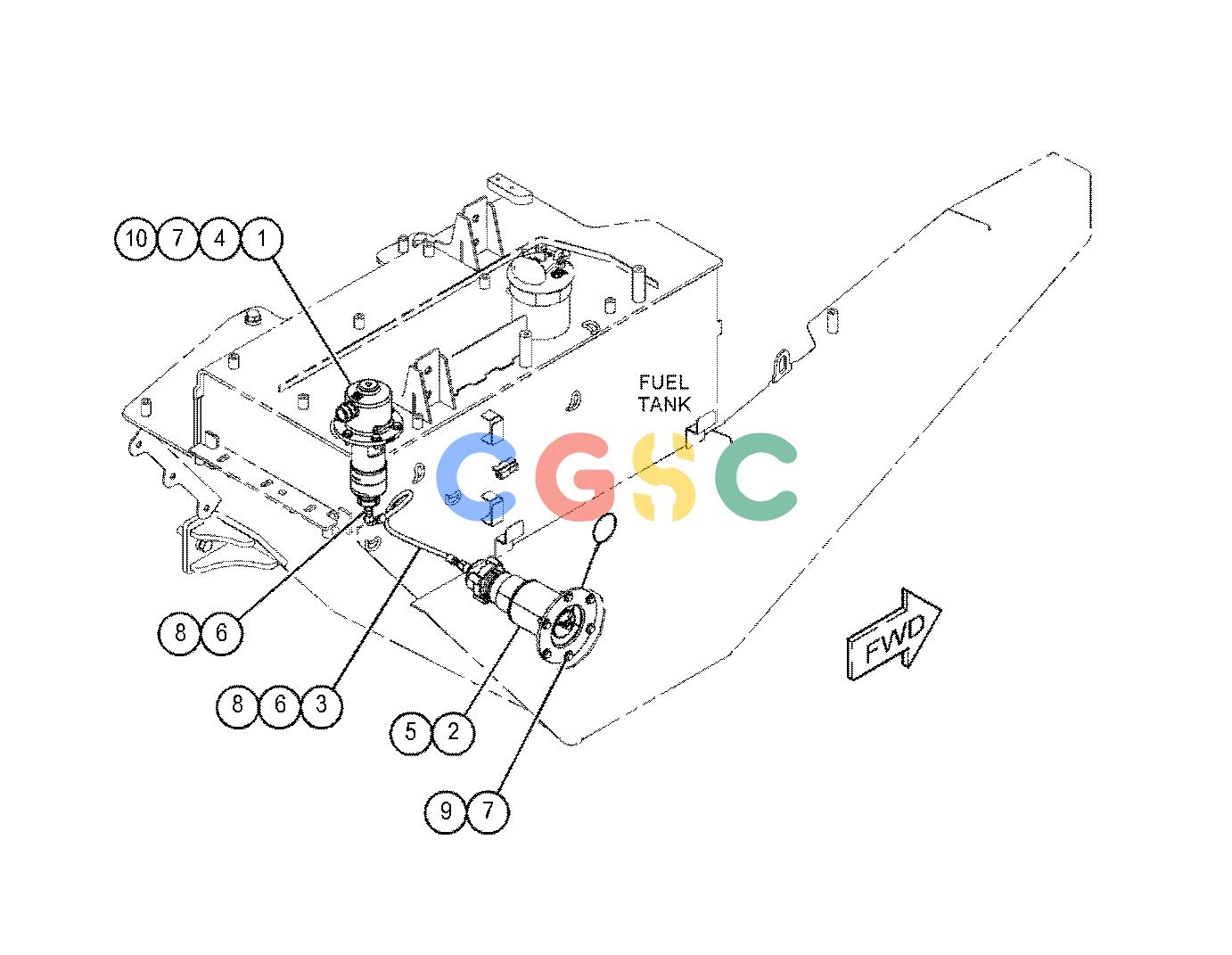

卡特零件查询（730） 526-6598: COVER GP-FUEL TANK
广数供应链运营团队, 15 02月, 2025，浏览：
843 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 252-5805 | [1] | VENT AS | |
| 2. | 391-5746 | [1] | VALVE AS(RECESSED) | |
| | 005-8593 | [1] | SEAL-O-RING | |
| | 373-7052 | [1] | VALVE | |
| | 471-8197 | [1] | ADAPTER-FAST FILL FUEL | |
| 3. | 415-3841I | [1] | HOSE AS | |
| 4. | 1H-8128 | [1] | SEAL-O-RING | |
| 5. | 259-4598 | [1] | SEAL-O-RING | |
| 6. | 5P-2618 | [2] | CONNECTOR | |
| 7. | 5P-4116 | [12] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 8. | 5P-7814 | [2] | SEAL-O-RING | |
| 9. | 8T-4189M | [6] | BOLT(M8X1.25X20-MM) | |
| 10. | 8T-4908M | [6] | BOLT(M8X1.25X25-MM) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
