神钢零件查询(F4HFE613R A004) - ENGINE 5801366310 - LQ02P00062P1 (9/10-) (10.103.01) - SHORT BLOCK - CRANKSHAFT (5801371818 - 504068995) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
453 次

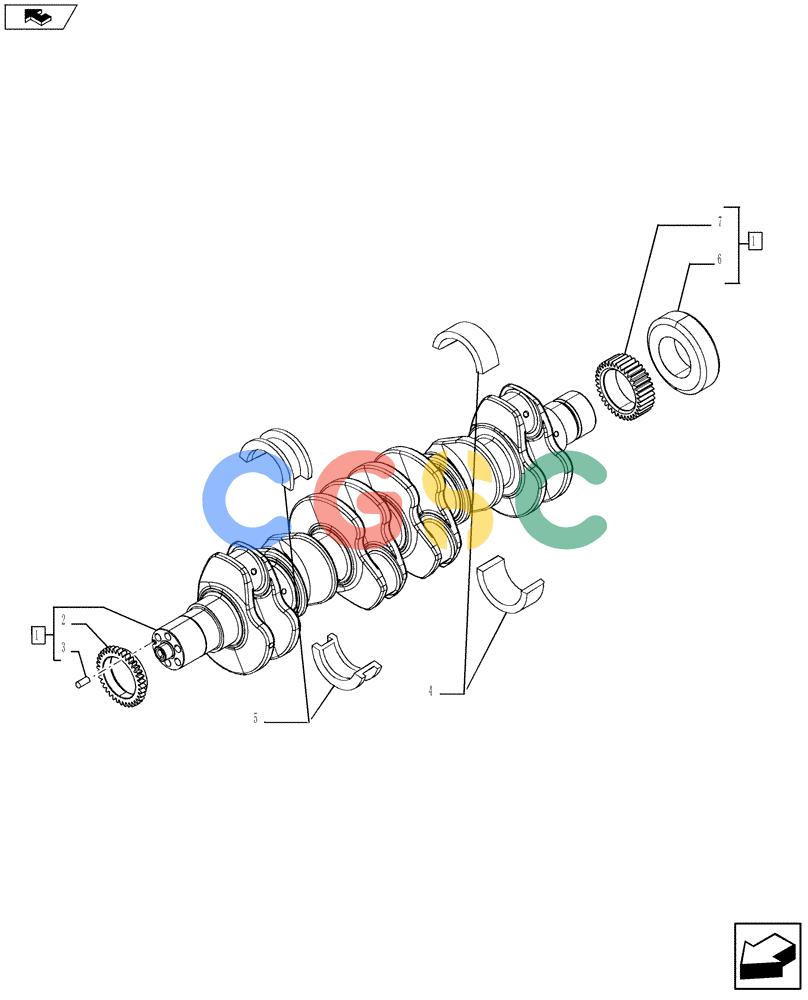

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2852305 | [1] | CRANKSHAFT | TORASSY Superseded by part number: 4899046, 504203872 |
| 1. | 2852306R | [1] | REMAN-CRANKSHAFT | MKT Superseded by part number: 504057571R |
| 1. | 2852306C | [1] | CORE-CRANKSHAFT | MKTReturn Number |
| 2. | 4893386 | [1] | GEAR,36 T | TOR |
| 3. | 4899046 | [1] | DOWEL,M6 x 9 L | TOR |
| 4. | 84144525 | [6] | SET OF STD MAIN BRGS | CASSTD. Superseded by part number: 2995787 |
| 5. | 84144522 | [1] | THRUST BEARING | CASSTD. Superseded by part number: 2995787 |
| 6. | 2831066 | [1] | | |
| 7. | 4892438 | [1] | GEAR,36T | TOR |
