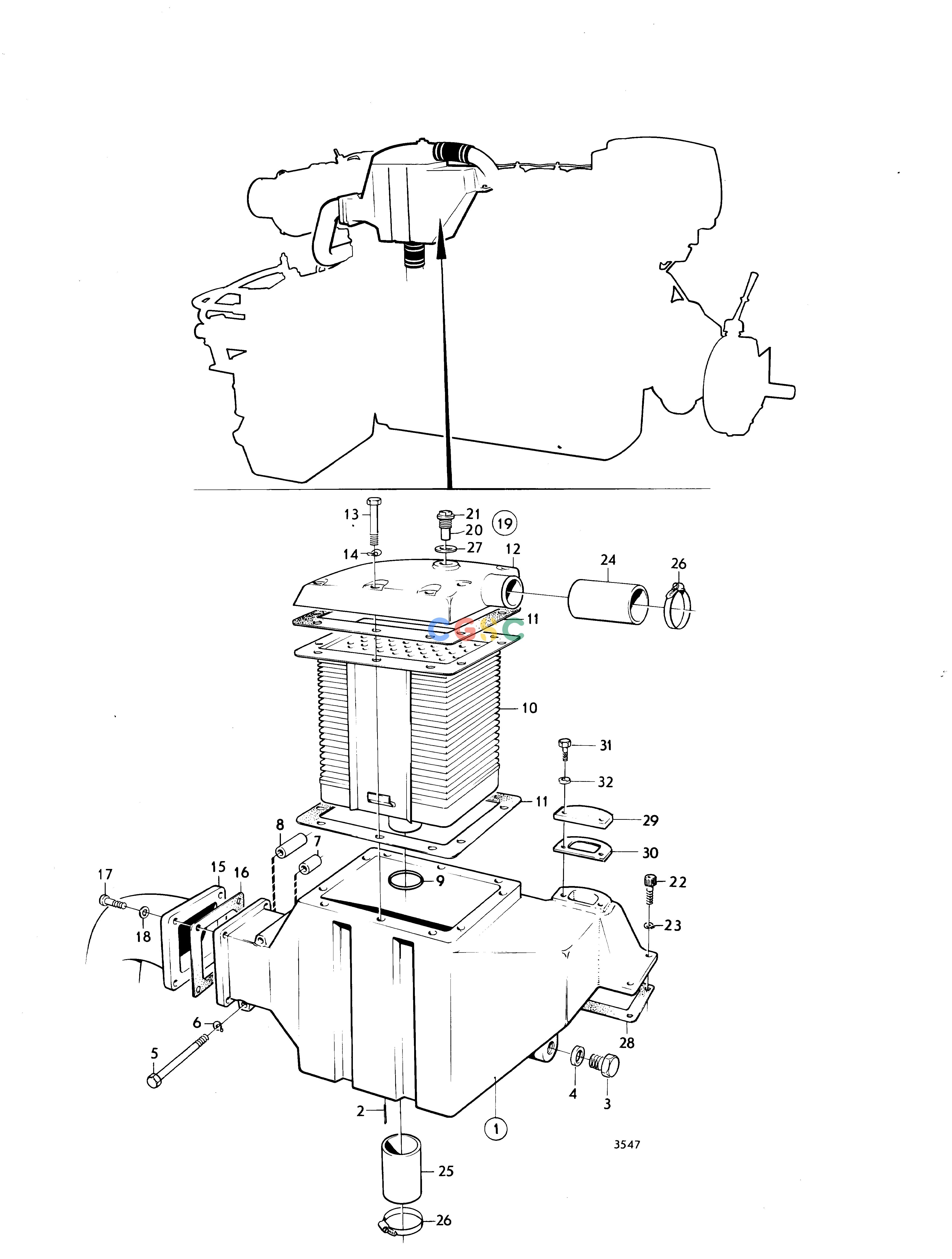

沃尔沃零件查询MD120A; MD120AK; TMD120A; TMD120AK; TAMD120A; TAMD120AK; TMD120B; TAMD120B; TAMD120B-CCCooling SystemAfter Cooler with Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
1004 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
Early production D70B spec. 867060. TD70B spec. 867066.
|
| 1. |
842042
|
[1] |
Housing
|
MO15908/XXXX-
|
| 2. |
951946
|
[1] |
Spring pin
|
|
| 3. |
960632
|
[1] |
Plug
|
MO15908/XXXX-
|
| 4. |
957181
|
[1] |
Gasket
|
MO15908/XXXX-
|
| 5. |
945749
|
[2] |
Hexagon screw
|
|
| 6. |
941907
|
[2] |
Spring washer
|
|
| 7. |
836838
|
[1] |
Spacer sleeve
|
|
| 8. |
823498
|
[1] |
Spacer sleeve
|
|
| 9. |
925254
|
[1] |
O-ring
|
|
| 10. |
836812
|
[1] |
Intercooler insert
|
|
| 11. |
836015
|
[2] |
Gasket
|
|
| 12. |
836014
|
[1] |
Cover
|
|
| 13. |
940161
|
[10] |
Hexagon screw
|
|
| 14. |
941907
|
[10] |
Spring washer
|
|
| 15. |
837481
|
[1] |
Intake bend
|
|
| 16. |
836026
|
[1] |
Gasket
|
|
| 17. |
956570
|
[4] |
Hex. socket screw
|
|
| 18. |
941907
|
[4] |
Spring washer
|
|
| 19. |
823661
|
[1] |
Zinc anode
|
(823660) repl by 823661
|
| 20. |
823661
|
[1] |
Zinc anode
|
|
| 21. |
823662
|
[1] |
Plug
|
|
| 22. |
956571
|
[4] |
Hex. socket screw
|
|
| 23. |
941907
|
[4] |
Spring washer
|
|
| 24. |
943372
|
[1] |
Rubber hose, rubber hose
|
L=110mm
|
| 25. |
943372
|
[1] |
Rubber hose, rubber hose
|
L=90mm
|
| 26. |
943479
|
[8] |
Hose clamp, hose clamp
|
(951795)
|
| 27. |
836169
|
[1] |
Gasket
|
|
| 28. |
423336
|
[1] |
Gasket
|
|
| 29. |
842044
|
[1] |
Seal flange
|
MO15908/XXXX-
|
| 30. |
837863
|
[1] |
Gasket
|
MO15908/XXXX-
|
| 31. |
940100
|
[2] |
Hexagon screw
|
MO15908/XXXX-
|
| 32. |
941906
|
[2] |
Spring washer
|
MO15908/XXXX-
|
