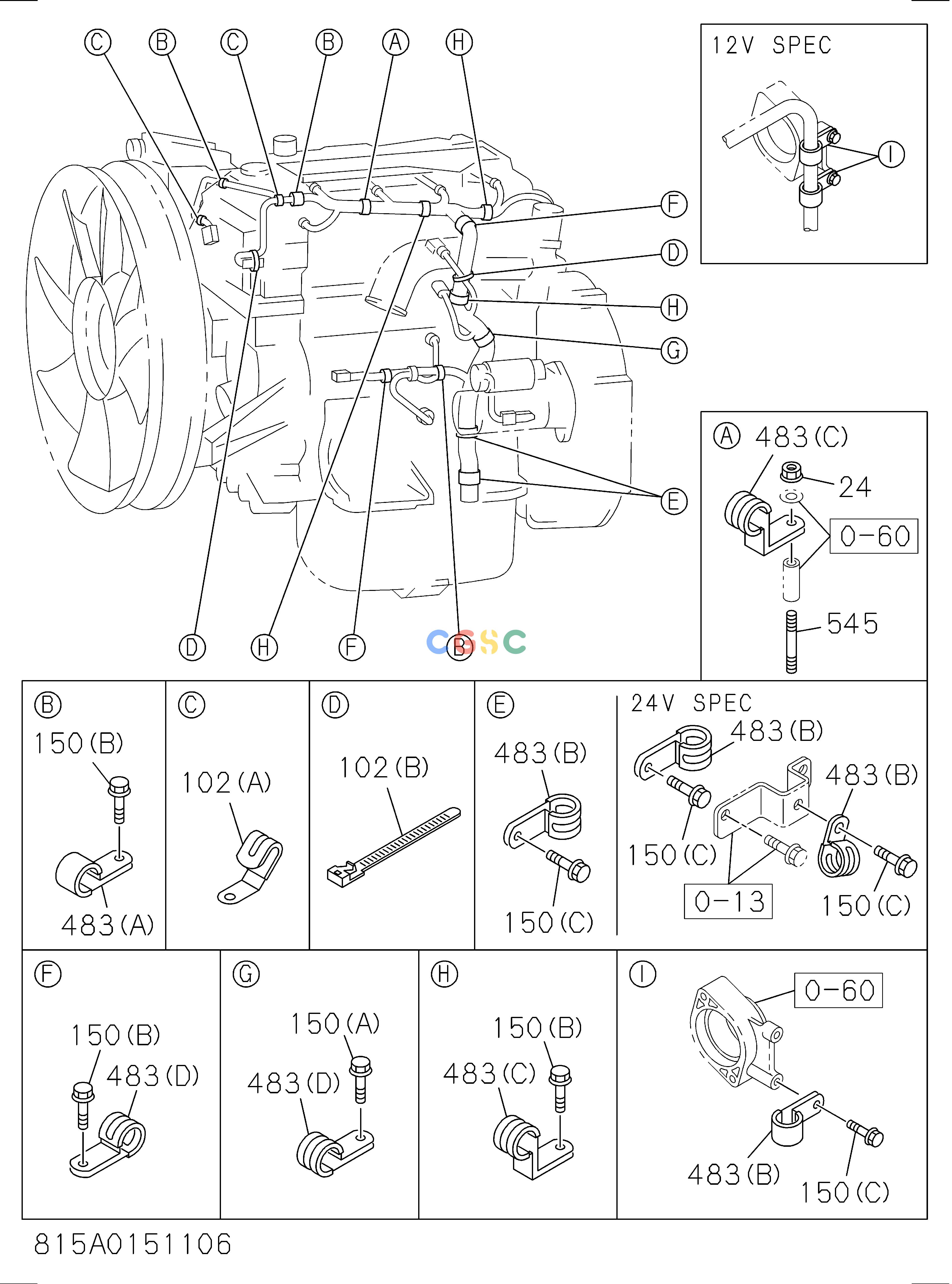

日立零件查询（CP220-3）815: FIXING PARTS; WIRING HARNESS Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
497 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 024. | 0911802080 | [1] | NUT; HARNESS | M8 FLANGE |
| 102(A). | 5097003500 | [3] | CLIP; BAND | A ID=12 |
| 102(A). | 8973679841 | [3] | CLIP; BAND | ID=12 |
| 102(B). | 5097070311 | [3] | CLIP; BAND | L=140 |
| 150(A). | 0280506120 | [1] | BOLT; CLIP | M6X12 FLANGE |
| 150(B). | 0280508120 | [8] | BOLT; CLIP | M8X12 FLANGE |
| 150(C). | 0280510160 | [2] | BOLT; CLIP | M10X16 FLANGE |
| 483(A). | 0952358560 | [2] | CLIP; ENG HARNESS | ID=19 L=28 |
| 483(B). | 1097006071 | [2] | CLIP; ENG HARNESS | ID=28 L=30 |
| 483(C). | 1097008600 | [3] | CLIP; ENG HARNESS | ID=18 H=23 L=28 |
| 483(C). | 1097008620 | [1] | CLIP; ENG HARNESS | ID=24.5 H=23 L=25 |
| 483(D). | 1097010011 | [2] | CLIP; ENG HARNESS | ID=24 L=24 |
| 483(D). | 1097010130 | [1] | CLIP; ENG HARNESS | ID=14.5 L=28 |
| 545. | 0410108550 | [1] | STUD; HARNESS | M8X55 L=67 |
