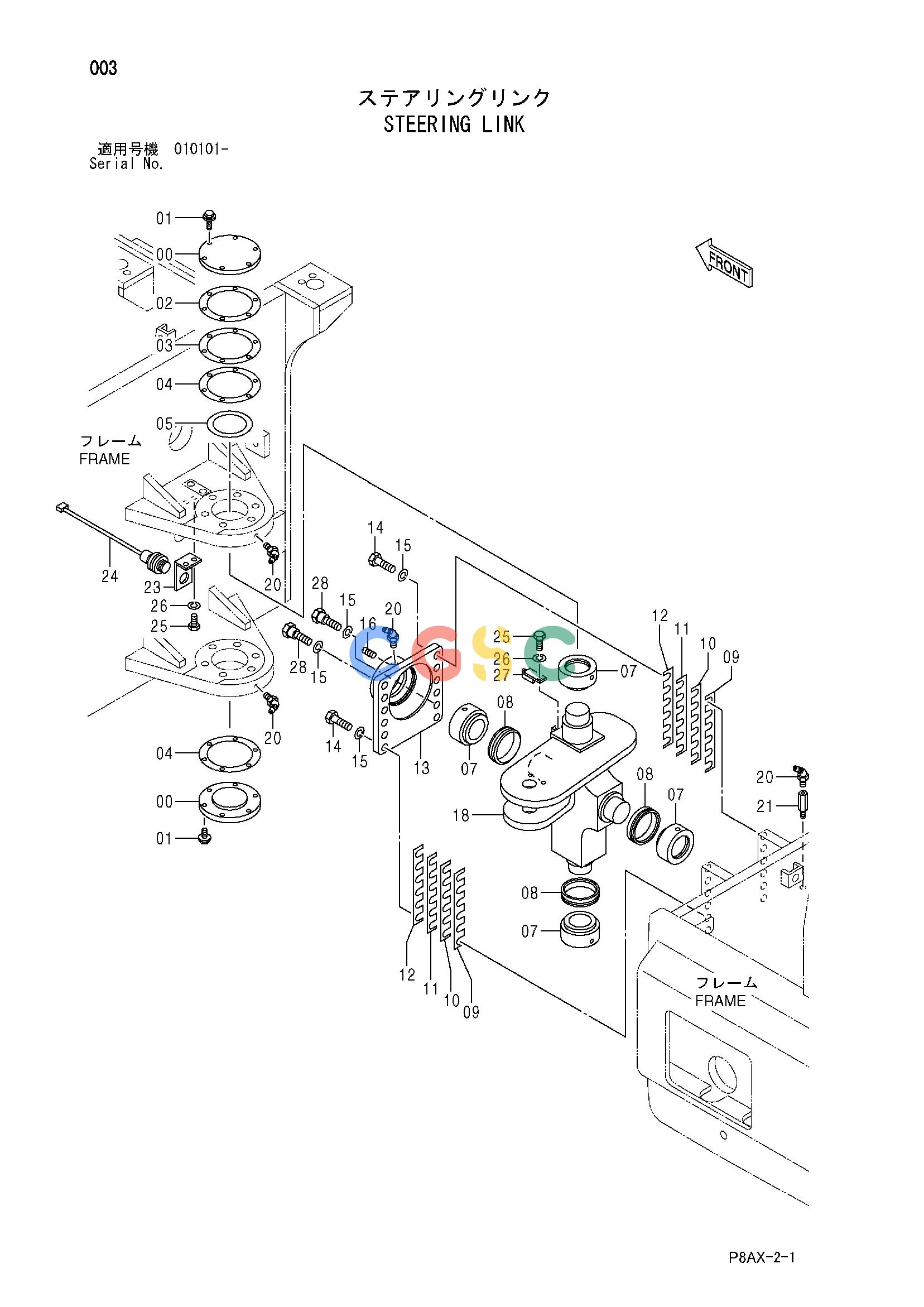

日立零件查询（CS125）STEERING LINK Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
256 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 425134 | [2] | COVER | |
| 01. | 500037 | [12] | BOLT;SEMS | |
| 02. | 425135 | [6] | SHIM 0.1 | |
| 03. | 425136 | [2] | SHIM 0.3 | |
| 04. | 425137 | [2] | SHIM 1.0 | |
| 05. | 425138 | [1] | SEAL | |
| 07. | 100040 | [4] | BRG. | |
| 08. | 167032 | [3] | V-RING | |
| 09. | 345871 | [4] | SHIM 1.0 | |
| 10. | 345872 | [8] | SHIM 0.3 | |
| 11. | 345873 | [8] | SHIM 0.1 | |
| 12. | 425105 | [4] | SHIM 0.05 | |
| 13. | 425078 | [1] | COVER | |
| 14. | 928070 | [10] | BOLT | |
| 15. | 604017 | [12] | WASHER;SPRING | |
| 16. | 516035 | [3] | SCREW;SET | |
| 18. | 425312 | [1] | LINK;STEERING | |
| 20. | 310040 | [4] | FITTING;GREASE | |
| 21. | 424972 | [1] | REDUCER | |
| 23. | 425133 | [1] | BRACKET | |
| 24. | 425002 | [1] | SWITCH | |
| 25. | 947682 | [3] | BOLT | |
| 26. | 947887 | [3] | WASHER;SPRING | |
| 27. | 425405 | [1] | BRACKET | |
| 28. | 425273 | [2] | BOLT;REAMER | |
