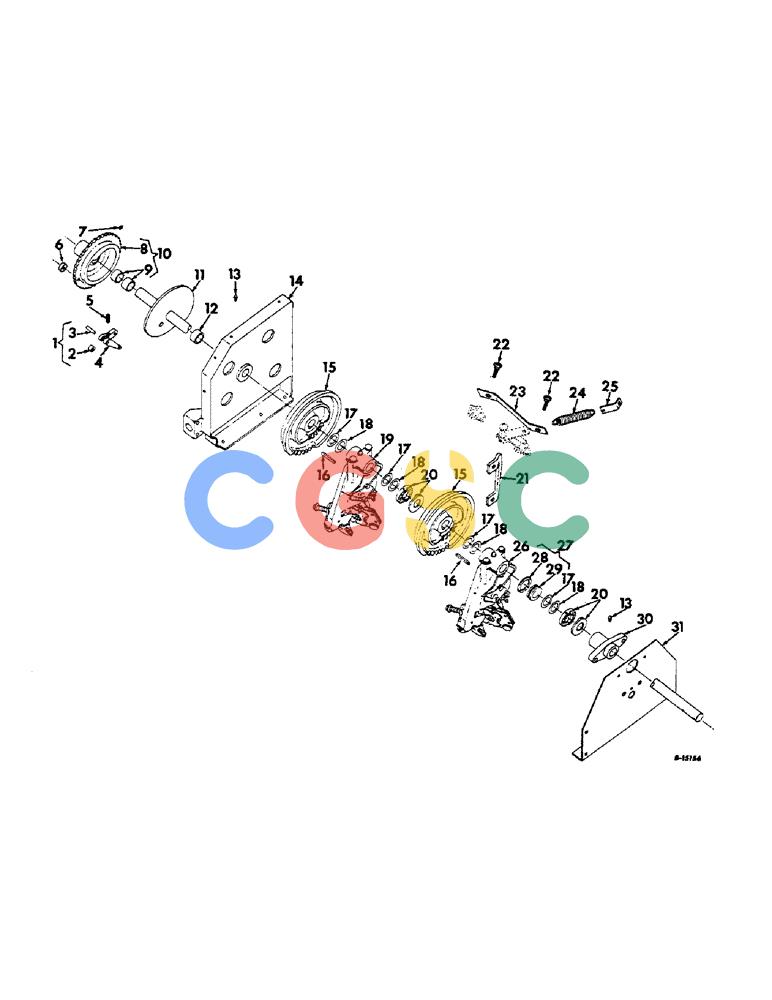

| 1. |
670651R11
|
[1] |
PAWL
|
IH
DOG W/ROLLER AND STUD, trip
|
| . . |
17549R1
|
[1] |
BOLT, 7/16 x 2-1/4 hex-hd mach
|
|
| . . |
664616R1
|
[1] |
NUT, 7/16-14 hex. lock
|
|
| 2. |
V341
|
[1] |
PAWL
|
IH
ROLLER, trip dog
|
| 3. |
V690
|
[1] |
PIN
|
IH
STUD, trip dog roller
|
| 5. |
V680
|
[1] |
SPRING
|
IH
trip dog Superseded by part number: 753027R1
|
| 6. |
670646R1
|
[1] |
ROLLER
|
IH
trip arm
|
| . . |
22855R1
|
[1] |
PIN, 3/8 x 1-9/16 std-hd znp
|
|
| . . |
611346R1
|
[1] |
WASHER
|
IH
13/32 x 7/8 x 16 ga C-Z, (or as required) Superseded by part number: 495-81134
|
| . . |
648002
|
[1] |
1/8" x 3/4"
|
KNIFE
|
| 7. |
87414
|
[1] |
LUBE NIPPLE,1/4" - 28
|
NH
FITTING, 1/4-28 str self tap. lub
|
| 9. |
670659R1
|
[2] |
BUSHING
|
IH
knotter shaft
|
| 10. |
670654R11
|
[1] |
DRIVE SPROCKET
|
IH
SPROCKET ASSY, driven
|
| 11. |
670647R41
|
[1] |
SHAFT
|
IH
ASSY, knotter
|
| 12. |
674779R1
|
[1] |
SPACER
|
IH
knotter support
|
| 13. |
87569
|
[2] |
LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive
|
PA
FITTING, 1/4-28, 45 deg. self tap.
|
| 14. |
674011R1
|
[1] |
BRACKET
|
IH
SUPPORT, knotter R.H.
|
| . . |
19021R1
|
[3] |
CARRIAGE BOLT,#3, 3/8" - 16 x 1 1/2", Gr 2
|
IH
BOLT, 3/8 x 1-1/2 C-Z No. 3 plow Superseded by part number: 419-3624
|
| . . |
120377
|
[3] |
NUT,3/8" - 16, Gr 5
|
IH
Superseded by part number: 280136
|
| . . |
120382
|
[3] |
LOCK WASHER,Helical Spring, 3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| . . |
413-548
|
[1] |
BOLT,Hex, 5/16" - 18 x 3", Gr 5
|
CAS
SCREW, 5/16-18 x 3 znd hex-hd cap Superseded by part number: 88731
|
| . . |
120376
|
[2] |
NUT,5/16"-18, G5
|
IH
Superseded by part number: 9635082
|
| 15. |
670649R3
|
[2] |
CAM
|
IH
knotter
|
| . . |
17139R1
|
[2] |
LOCK PIN,3/8" x 2 1/4", Slotted
|
IH
PIN, 3/8" x 2 1/4", Slotted Superseded by part number: 138-314
|
| 16. |
670650R1
|
[2] |
KEY
|
IH
3/8 x 2 x 1/4 flat parallel
|
| 17. |
316171C1
|
[8] |
SHIM
|
IH
, Serial Range: knotter-cam
|
| 18. |
667588R1
|
[16] |
DISC
|
IH
SHIM, knotter to cam, (or as required)
|
| 19. |
201646C91
|
[1] |
KNOTTER
|
IH
ASSY, R.H., for components see list of parts under details of knotter Superseded by part number: 201646C92
|
| 20. |
667813R1
|
[4] |
COLLAR CLAMP
|
IH
COLLAR, knotter shaft adj.
|
| . . |
443100
|
[4] |
STUD
|
IH
No. 12 x 1/2 rd-hd groove
|
| . . |
137258
|
[3] |
COTTER PIN
|
IH
3/16" x 1 3/4" Superseded by part number: 432-1228
|
| . . |
607890R1
|
[6] |
WASHER
|
IH
1-7/32 x 1-3/4 x 16 ga
|
| 21. |
201649C1
|
[1] |
CAM
|
IH
twine knife driving
|
| . . |
24695R1
|
[2] |
SCREW
|
IH
w/csk-ext tooth lock washer 3/8-16 x 1 znd slt-hd mach
|
| . . |
22825R1
|
[2] |
WASHER
|
IH
15/32 x 1-1/4 x 7 ga C-Z Superseded by part number: 495-81012
|
| 22. |
441485R1
|
[2] |
BOLT,Shoulder, Hex, 3/8" - 16 x 1 1/2"
|
IH
shoulder
|
| . . |
607895R1
|
[2] |
WASHER
|
IH
17/32 x 1 x 11 ga C-Z Superseded by part number: 86624146
|
| 23. |
201650C1
|
[1] |
BAR
|
IH
LINK, knife connecting
|
| 24. |
202656C1
|
[1] |
SPRING
|
IH
knife return
|
| 25. |
201652C2
|
[1] |
ANCHOR
|
IH
knife spring
|
| . . |
18495R1
|
[1] |
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2
|
IH
3/8 x 1-1/4 znd hex-hd mach Superseded by part number: 180124
|
| . . |
469668R1
|
[1] |
WASHER
|
IH
13/32 x 3/4 x 16 ga C-Z Superseded by part number: 86632580
|
| 26. |
201608C91
|
[1] |
KNOTTER
|
IH
ASSY, L.H., for components see list of parts under details of knotter Superseded by part number: 201608C92
|
| 27. |
202511C91
|
[1] |
PAN
|
IH
RING ASSY, knotter spacer
|
| 28. |
125806H1
|
[1] |
SNAP RING,#175, Ext
|
IH
RING, SNAP, #175, Ext
|
| 30. |
667818R1
|
[1] |
FLANGE
|
IH
BEARING, knotter L.H.
|
| . . |
21743R1
|
[2] |
WASHER, 1-7/32 x 1-3/4 x 11 ga C-Z, (or as required)
|
|
| 31. |
673350R2
|
[1] |
SUPPORT ASSY.
|
IH
SUPPOORT, knotter brg. L.H.
|
| . . |
17351R1
|
[1] |
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2
|
IH
BOLT, 3/8 x 1 C-Z sq-nk crg Superseded by part number: 88682
|
| . . |
80682
|
[3] |
LOCK WASHER,1/4"
|
PA
Washer, Lock, 1/4"
|
